AmScope, B100-MS, 40X-1000X Binocular Biological Compound Microscope with Mechanical Stage
B100-MS Includes Only:
- One Brinocular Microscope Sliding Head
- One Microscope Body Frame with Stage, Base and Illumination System
- Four DIN Standard Objectives, 4X, 10X, 40X and 100X
- One Pair of Widefield 10X Eyepieces

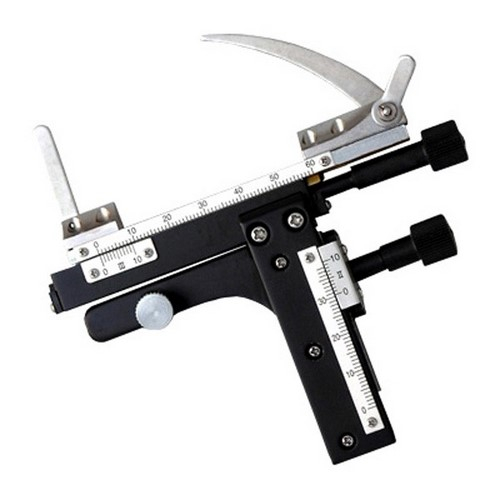

- One Mechanical Stage
- One Wrench for Focusing Tension Adjustment
- Two Color Filters
- One Dust Cover
- One Spare Bulb
- Sample Immersion Oil
- User's Manual Download
This is a brand binocular compound microscope that offers four magnification settings: 40X, 100X, 400X and 1000X. It comes with a binocular sliding head, two pairs of widefield eyepieces, four Archromatic objectives, coarse and fine focusing, mechanical stage, and electrical illumination system. It is an ideal instrument for clinical examination, teaching demonstration, and biological, bacteriological and pharmaceutical researches.
Features:
- 45 Degree Inclined 360 Degree Swiveling Sliding Binocular Head.
- Mechanical Stage with Stain Resistant Finish for Easy Slide Gliding Control.
- Separate Coarse and Fine Focusing.
- Fully Coated Optical System with High Resolution.
- Crystal Clear Sharp Images.
- High Quality Professional Grade Microscope.
- Great for Clinics, Vets, Doctors, Students.
- Four Levels of Magnification: 40X, 100X, 400X and 1000X.
- Upward Stage Stopper to Protect Slides and Objectives.
- Abbe Condenser with Iris Diaphragm and Filters.
- Built-In Illumination System.
- Focusing Control Knobs on Both Sides.
- Four DIN Achromatic Objectives.
- Full Optical Glass Elements.
- All Metal Mechanical Components.
- Precise Ground Glass Lens.
- Adjustable Interpupillary Distance.
- Adjustable Diopter on Oculars.
- Solid Metal Frame Construction with Stain Resistant Enamel Finish.
- Spare Bulb, Fuse and a Bottle of Immersion Oil Included.
- Manufactured under ISO 9001 Quality Control Standard.
- Nosepiece: quadruple.
- Head: 45 degree inclined sliding binocular.
- Interpupillary Distance: 2-3/16" - 3-0" (55 - 75mm).
- Wide-field Eyepiece: WF10X/18.
- Achromatic Objectives: 4X, 10X, 40X (spring), 100X (spring,oil).
- Stage Dimensions: 4-5/16"x 4-3/4" (110x120mm).
- Abbe Condenser: NA=1.25 with iris diaphragm and filter.
- Illumination: tungsten lamp, 110V/20W.
- Accessories: dust cover, green and blue filters, and a bottle of immersion oil.
