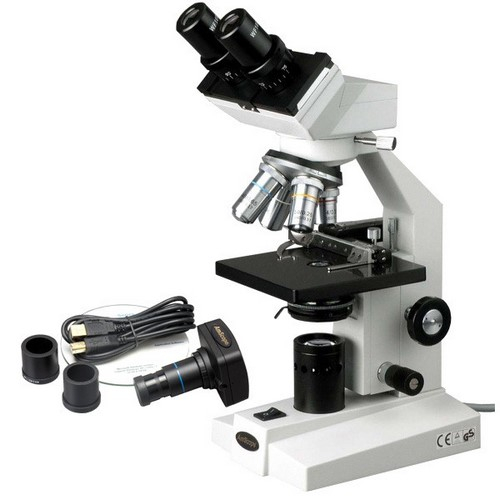

AmScope, B100A-MS-M, 40X-1600X Binocular Microscope, 1.3MP Digital Camera, Mech. Stage
B100A-MS-M Includes Only:
- One Binocular Microscope Head
- One Microscope Body with Illumination System
- Four Achromatic DIN objectives, 4X, 10X, 40X and 100X
- One Pair of Widefield WF10X Eyepieces
- One Pair of Widefield WF16X Eyepieces
- Mechanical Stage
- Spare Tungsten Bulb

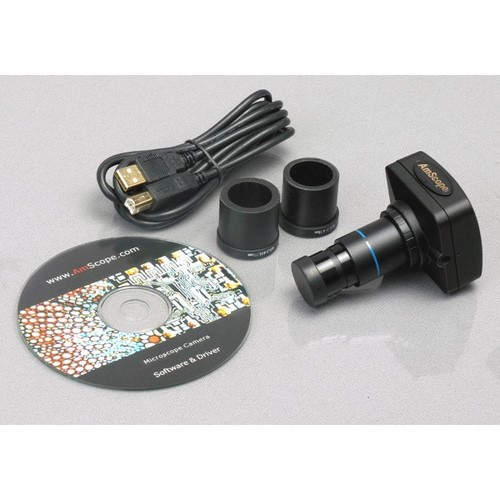

- One 1.3MP USB2.0 Microscope Digital Camera with 0.5X Reduction Lens
- One 6' (1.8m) USB Cable
- Two Adapter Sleeves (23.2mm-30mm and 23.2mm-30.5mm)
- One CD with Camera Software and Driver
- Color Filters
- Pair of Clips
- Dust Cover
- Power Cord
- Immersion Oil
- User's Manual Download
This is a brand binocular compound microscope with mechanical stage and 1.3MP USB color digital camera. The microscope provides eight magnification settings, 40X, 64X, 100X, 160X, 400X, 640X, 1000X and 1600X. It comes with a binocular sliding head, two pairs of widefield eyepieces, four Achromatic objectives, coarse and fine focusing, mechanical stage, and electrical illumination system.The digital camera captures still images and video, and allows you to view a live stream on your PC. With software accessible for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-Focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. for Mac and Linux, there is a lite version with limited processing features. The mechanical stage makes the precise control of slide movements easy, especially under high power magnifications. This microscope is ideal for clinical examination, teaching demonstration, and biological, bacteriological and pharmaceutical researches.
Features:
- A great affordable binocular compound microscope with mechanical stage and USB digital camera!
- Eight levels of magnification: 40X, 64X,100X, 160X, 400X, 640X, 1000X and 1600X
- 45 degree inclined 360 degree rotatable sliding binocular head
- Large stage with stain resistant finish
- Separate coarse and fine focusing
- Fully coated optical system with high resolution
- Crystal clear sharp images
- High quality professional grade microscope
- Great for clinics, vets, doctors and students
- Upward stage stopper to protect slides and objectives
- Abbe condenser with iris diaphragm and filters
- Built-in electrical illumination system
- Dual side focusing controls
- Four DIN Achromatic objectives
- Two sets of eyepiece included
- Full optical glass elements
- All metal mechanical components
- Precise ground glass lenses
- Adjustable interpupillary distance
- Adjustable diopter on oculars
- Solid metal frame construction with stain resistant enamel finish
- Spare bulb, fuse and a bottle of immersion oil included
- Manufactured Under ISO 9001 Quality Control Standard
- Nosepiece: quadruple
- Head: 45 degree inclined sliding binocular
- Interpupillary Distance: 2-3/16" - 3-0" (55 - 75mm)
- Wide-field Eyepiece: WF10X and WF16X
- Achromatic Objectives: 4X, 10X, 40X (spring), 100X (spring, oil)
- Stage Dimensions: 4-5/16"x 4-3/4" (110x120mm)
- Abbe Condenser: NA=1.25 with iris diaphragm and filter
- Illumination: 20W tungsten bulb
- Power Supply: 110V
- Accessories: dust cover, filters and a bottle of immersion oil
- Sensor: Aptina MT9M111
- Sensor Type: CMOS
- Sensor Size: 4.6x3.7mm
- Pixel Size: 3.6
- Resolution: 1.3MP
- Sensitivity: 1.0V/lux-sec
- Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
- OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
- Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port
