AmScope, B390-HD102-S11B, 40X-2000X 720P HDMI Screen Compound Microscope
B390-HD102-S11B Includes Only:
- One Binocular Microscope with 4 DIN Objectives
- One Pair of Widefield 10X Eyepieces
- One Pair of WF20X Eyepieces
- One Bottle of Immersion Oil
- One Power Cord (US and Canada standard)
- One Mirror for Ambient Lighting
- One Dust Cover
- Two Color Filters
- One Spare Halogen Bulb (6V/20W)
- One Spare Fuse
- One camera
- One HD monitor
- One USB mouse
- One AD-C04-YX adapter
- One AC power adapter (US and Canada standard)
Features
- A professional compound microscope with a conversion kit for full-time video monitoring
- Eight magnification settings from 40X to 2000X for traditional viewing
- Abbe condenser with iris diaphragm
- Metal framework with coaxial coarse and fine focus
- Powerful 20W halogen illumination
- Perfect for vets, labs, clinics, universities, and high schools
- High quality professional optical glass elements
- 45 degree inclined 360 degree swiveling binocular head
- Eight (8) levels of magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X
- Four (4) achromatic objectives DIN 4X, 10X, 40X(S), 100X(S,Oil)
- Two (2) pairs of eyepieces: WF10X and WF20X
- Large size 3-D double layer mechanical stage with stain resistant finish
- Low position coaxial stage movement controls
- Coaxial coarse fine focusing with CA knob tension control
- Sliding interpupillary distance adjustment
- Ocular diopter adjustable on both eyetubes
- Variable intensity halogen illumination
- High resolution images over a wide field of view
- Metal framework
- Coaxial coarse and fine focus adjustment
- Dual focusing knobs (on both sides)
- Stage upward moving lock protects objectives and slides
- Large stain-resistant double layer mechanical stage
- NA1.25 Abbe Condenser with iris diaphragm filters
- Rack and pinion adjustment condenser
- Product GS and CE approved
- Spare Bulb, Fuse, and Immersion Oil Included
- Manufactured under ISO 9001 Quality Control Standards

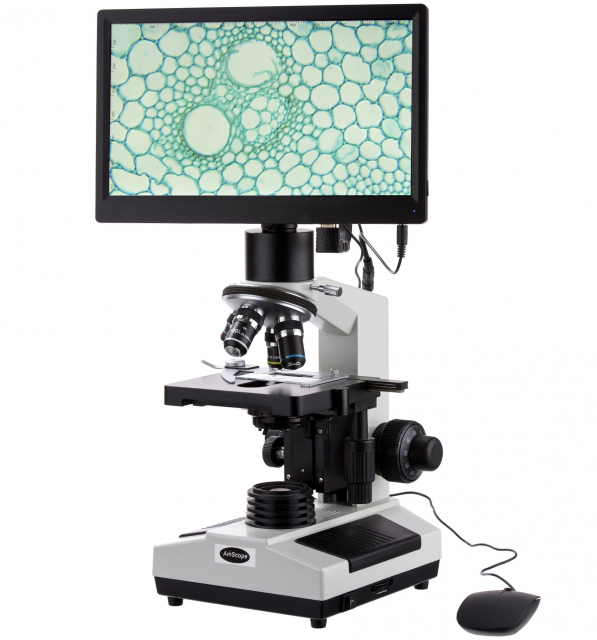

This version of the B390 microscope comes with a video modification kit. The video system replaces the binocular viewing head, and provides full-time video monitoring on its 11.6" HD screen. You can watch live images of microscopic specimens, and capture photos and videos to SecureDigital media. This is ideal for demonstrations in classrooms or fast-paced professional use. Four objective lenses provide a broad magnification range.
The microscope also comes with a binocular sliding head for traditional viewing, with two sets of eyepieces for eight levels of magnification: 40X, 80X, 100X, 200X, 400X, 800X, 1000X and 2000X. The double-layer mechanical stage, and coaxial coarse and fine focus provide ergonomic and precise movements.
