AmScope, B490B-3MT, 40x-2000X Binocular Biological Compound Microscope, 3MP Camera

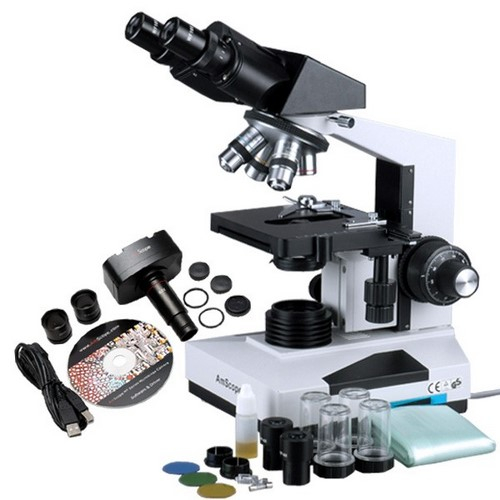

B490B-3MT Includes Only:
- One Binocular Compensation-Free Head
- One Microscope Body with Frame, Base and Halogen Illumination System
- Four High Quality DIN Objectives, 4X, 10X, 40X and 100X
- One Pair of Widefield WF10X Eyepieces
- One Pair of Widefield WF20X Eyepieces
- Two Color Filters
- One Dust Cover
- One 6V/20W Spare Halogen Bulb
- Immersion Oil
- Power Cord
- Spare Fuses
- User's Manual Download
- One 3MP USB2.0 Digital Camera
- One CD with Camera Software and Driver
- One 6' USB Cable
- Two Adapter Sleeves (23.2mm-30mm and 23.2mm-30.5mm)

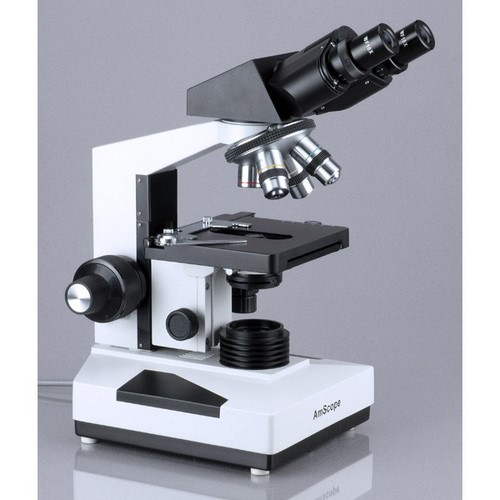

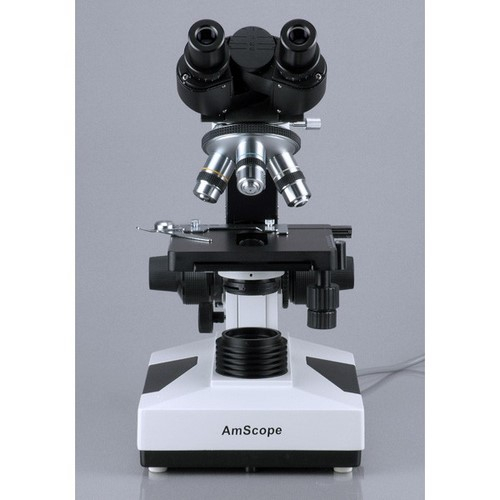

This is a professional binocular microscope with 3MP high quality digital camera. It is designed for teaching demonstration, clinical examination and research purpose. It comes with a 30 degree inclined 360 degree swiveling compensation free binocular head, 3D mechanical stage and an intensity-variable halogen illumination system. This microscope offers eight levels of magnification, 40X, 80X, 100X, 200X, 400X, 800X, 1000X and 2000X.
The 3MP digital camera captures still images and video, and allows you to view a live stream on your PC. With software accessible for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-Focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. for Mac, there is a lite version with limited processing features.
This microscope is versatile, ready for various accessories and attachments for extra features.
Features:
- 30-degree Inclined 360-degree Swiveling Compensation Free Binocular Head

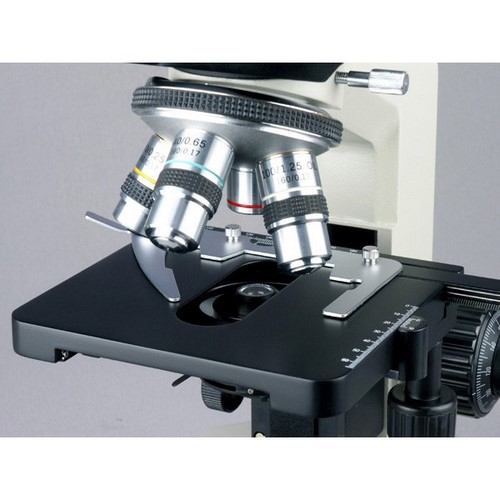

- Large 3-D Double Layer Mechanical Stage with Stain Resistant Finish
- Low Position Coaxial Stage Movement Control Knobs
- Coaxial Coarse Fine Focusing with CA Knob Tension Control
- Fully Coated Optical System with High Resolution
- Crystal Clear Sharp Images
- High Quality Professional Grade Microscope
- Perfect for Clinics, Vets, Doctors, and Students.
- Eight Levels of Magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X
- Upward Stage Stopper to Protect Slides and Objectives
- Abbe Condenser with Iris Diaphragm Filters
- Rack and Pinion Adjustment for Condenser
- Built-in Halogen Illumination System with Variable Intensity
- Dual Focusing Control Knobs
- Four DIN Achromatic Objectives
- Two Sets of Eyepieces
- Full Optical Glass Elements
- Precise Ground Glass Lenses
- All Metal Mechanical Components.
- Adjustable Interpupillary Distance
- Adjustable Diopter on Ocular
- Solid Metal Frame Construction with Stain Resistant Enamel Finish
- Spare Bulb, Fuse, and Immersion Oil Included
- Manufactured under ISO 9001 Quality Control Standards
- Nosepiece: quadruple
- Mechanical Tube Length: 6-5/16" (160mm)
- Head: 360-degree swiveling compensation free binocular head inclined at 30-degree
- Eyepieces: WF10X and WF20X
- Achromatic Objectives: 4X, 10X, 40X (spring), 100X (spring, oil)
- Stage Dimensions: 5-1/2"x 5-1/2" (140x140mm)
- Stage Traveling Range: 2-15/16"x 1-3/4" (75x45mm)
- Focusing Range: 1-3/16" (30mm)
- Division of Fine Focusing: 0.0000787" (0.002mm)
- Abbe Condenser: NA=1.25 with rack and pinion focusing control
- Illumination: 6V/20W halogen bulb
- Power Supply: 110V, CE certified
- Accessories: 6V/20W spare halogen bulb, bottle of immersion oil, blue, green yellow filters
- Image Sensor: Micron (color)
- Sensor Type: CMOS
- Sensor Size: 1/2"
- Pixel Size: 3.2microm
- Resolution: 3.1MP
- Frame Rate: 30 fps at 640x480, 11 fps at 2048x1536
- Sensitivity: 1.0V/lux-sec (550 nm)
- Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX
