AmScope B580B-DK 40X-2000X Darkfield Biological Microscope

AmScope, B580B-DK, 40X-2000X Professional Darkfield Binocular Biological Microscope

B580B-DK Includes Only:

• One Binocular Compensation-Free Head
• One Microscope Body with Frame, Base and Halogen Illumination System
• Four High Contrast Objectives, 4X, 10X, 40X and 100X
• Two Pairs of Plan High Eyepoint Eyepieces, WF10X and WF20X

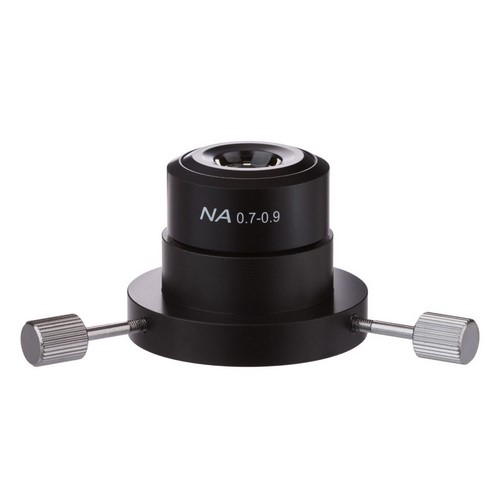

• One Dry Darkfield Condenser
• Two Color Filters
• One Dust Cover
• One Power Cord
• One 6V/20W Spare Halogen Bulb
• Two Spare Fuses
• Immersion Oil
• User's Manual Download

A bright field and dark field biological microscope boasting unique and powerful features no other microscope dealer can claim! It comes with high point plan eyepieces and high contrast objectives. It includes a 30 degree inclined 360 degree swiveling compensation free binocular head, 3-D mechanical stage, intensity-variable halogen illumination system, and a dry darkfield condenser. It offers eight level magnifications: 40X-80X-100X-200X-400X-800X-1000X-2000X. This microscope is versatile and is ready for various accessories and attachments for advanced features.

Features:

• A First-Class High Quality Laboratory Compound Microscope for Professional Bright Field and Darkfield Applications
• High Eyepoint Plan Eyepieces
• High Contrast Objectives
• Fully Coated Optical System with High Resolution
• Crystal Clear Sharp Images
• Precise Mechanical System
• Ready for Various Accessories and Attachments for Advanced Applications
• 30 degree Inclined, 360 degree Swiveling Compensation Free Binocular Head
• Eight Magnification Levels: 40X-80X-100X-200X-400X-800X-1000X-2000X
• Intensity-Variable Transmitted Halogen Lighting System
• Abbe Condenser with Iris Diaphragm and Swing-Out Filter Holder
• Color Filters Included
• Rack and Pinion Adjustment for Condenser
• Large 3-D Double Layer Mechanical Stage
• Low Position Coaxial Stage Movement Control Knobs
• Dual Side Coaxial Coarse and Fine Focusing Controls
• Adjustable Interpupillary Distance
• Adjustable Diopter on Ocular
• Durable Cast Alloy Frame Stand with Stain Resistant Enamel Finish
• Two Sets of Wide Field Eyepieces: Wide Field 10X (18mm Field of View) and WF20X
• Large Double Layer Mechanical Stage with Stain Resistant Finish
• Upward Stage Stopper to Protect Objectives and Slides
• Manufactured under ISO 9001 Quality Control Standard
• Nosepiece: ball bearing quadruple
• Interpupillary Adjustment Mechanisms: 2-3/16" - 3-0" (55 - 75mm)
• Mechanical Tube Length: 6-5/16" (160mm)
• Head: binocular anti-mold viewing head inclined at 30 degree
• Wide-Field Eyepiece: Plan high eyepoint WF10X, WF20X
• Objectives: high contrast 4X, 10X, 40X (spring), 100X (spring, oil)
• Dual Stage Dimensions: 5-1/2"x 5-3/16" (140x132mm)
• Stage Traveling Range: 3"x 2" (76x50mm)
• Focusing Range: 1-1/8" (28mm)
• Division of Fine Focusing: 0.0000787" (0.002mm)
• Abbe Condenser: NA=1.25 with rack and pinion focusing control
• Illumination: halogen lamp, 6V/20W
• Wide Power Supply: 85V-265V, CE certified
• Contamination: 2 (refer to IEC664)
