AmScope B600A 40X-1600X Advanced Microscope

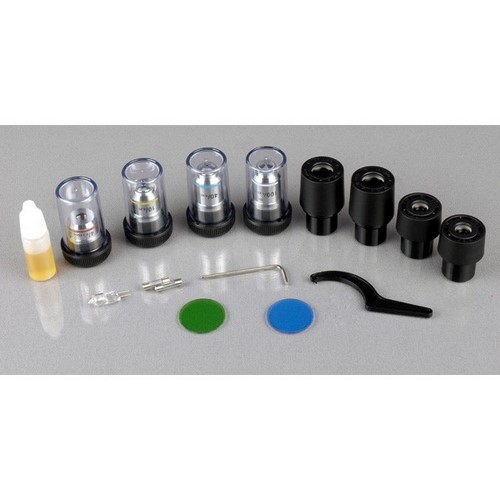

B600A Includes Only:

• One Binocular Microscope Siedentopf Head
• One Microscope Body Frame with Mechanical Stage and Halogen Illumination System
• Four High Quality DIN Objectives, 4X, 10X, 40X and 100X
• One Pair of Widefield 10X Eyepieces
• One Pair of Widefield 16X Eyepieces
• Two Color Filters
• One Dust Cover
• One Power Cord
• One Spare Halogen Bulb
• One Focusing Tension Wrench
• One L-shape David Screw Driver
• Two Spare Fuses
• Immersion Oil Sample
• User's Manual Download

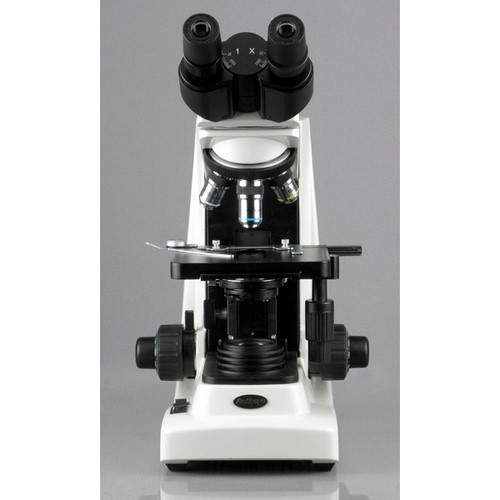

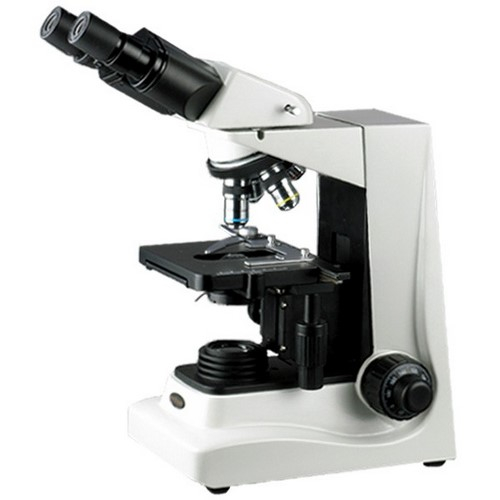

This professional compound microscope is designed for advanced applications in clinical examination and research labs, offering widefield sharp clear images. It comes with a 30 degree inclined 360 degree swiveling compensation free binocular head, 3-D mechanical stage, intensity-variable halogen illumination system and a backward nosepiece providing spacious room for comfortable operation. It offers eight magnification settings, 40X-64X-100X-160X-400X-640X-1000X-1600X. The microscope is designed to accept accessories for advanced applications including darkfield, phase contrast and fluorescent microscopy.

Features:

• Fully Coated Optical System with High Resolution Showing Sharp Image
• Magnifications: 40X-100X-400X-1000X, 64X-160X-640X-1600X
• 30 Degree Inclined, 360 Degree Ratable Compensation Free Binocular Head
• Quadruple, Reversed, Extra-Large Nosepiece with Wide, Knurled Grip for Easy Operation

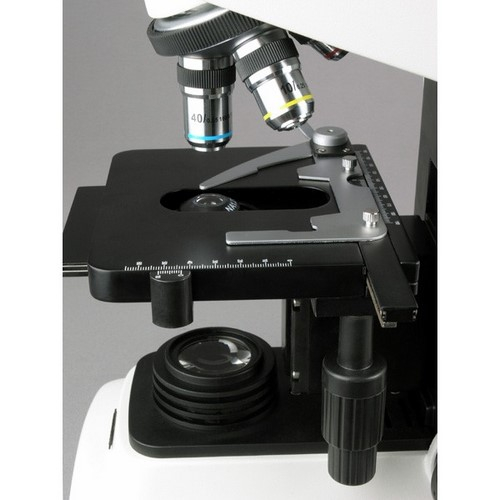

• Large Double Layer Mechanical Stage with Slide Clips
• Coaxial Coarse and Fine Focusing with CA Knob Tension Control
• Upward Stage Stopper to Prevent Slide Breakage and Objective Damage
• Abbe Condenser with Iris Diaphragm and Swing-In Color Filter
• Built-In Variable Halogen Illumination System with Adjustable Brightness
• Advanced Accessory Compatible, Including Phase Contrast Kit, EPI-Fluorescent Kit and Darkfield Condensers
• Nosepiece: ball bearing quadruple
• Interpupillary Adjustment Mechanisms: 2-3/16" - 3-0" (55 - 75mm)
• Mechanical Tube Length: 6-5/16" (160mm)
• Head: binocular anti-mould viewing head inclined at 30 degree
• Wide-Field Eyepiece: WF10X, P16X
• Achromatic Objectives: 4X, 10X, 40X (spring), 100X (spring, oil)
• Stage Dimensions: 5-1/2"x 6-5/16" (140x160mm)
• Stage Traveling Range: 2-3/4"x 2-0" (70x50mm)
• Focusing Range: 1-3/16" (30mm)
• Division of Fine Focusing: 0.0000787" (0.002mm)
• Abbe Condenser: NA=1.25 with rack and pinion focusing control
• Illumination: halogen lamp, 6V/20W
• Power Supply: 110V, CE certified
