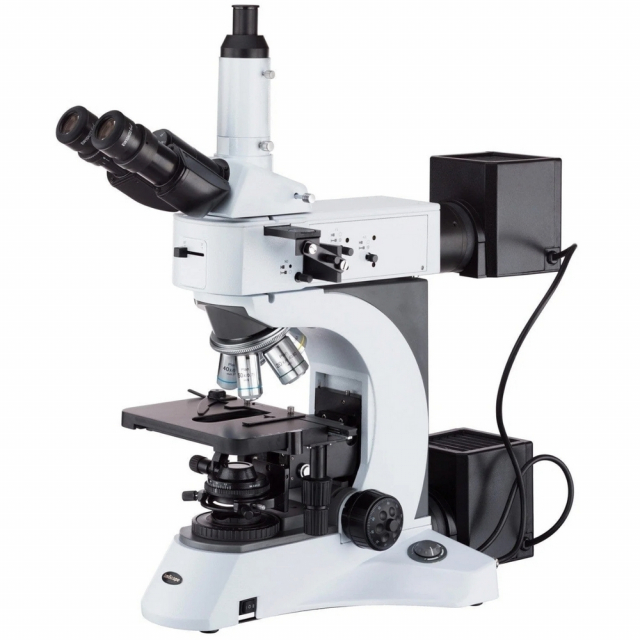

AmScope, ME520TB-HD2GS, ME520 Series Infinity-Corrected Darkfield Polarizing Metallurgical Trinocular Compound Microscope 50X-2000X with 1080P HDMI C-Mount Camera
ME520TB-HD2GS Includes Only:
- One trinocular microscope head
- One microscope body
- One episcopic illuminator
- Two light housings
- Three brightfield metallurgical objective lenses: 5X, 50X, 100X
- Two brightfield/darkfield metallurgical objective lenses: 10X, 20X
- Two brightfield transmitted-light objective lenses: 40X, 100X
- One pair 10X eyepieces
- One pair 20X eyepieces
- One set polarizer and analyzer
- Two lamp bulbs
- Two spare fuses
- One dust cover
- One sample immersion oil
- One HD Digital Camera
- One USB Mouse
- One HDMI Cable
- One USB Wi-fi Adapter
- One SD Card
- One Power Adapter
- One Software CD
Key Features
- 50X to 2000X magnification with a combination of seven plan-achromatic objective lenses for metallurgical, biological, and darkfield applications.
- A versatile microscope with dual illumination for metals, plastics, and biological samples, with brightfield, darkfield, and reflected-light polarization
- Use a combination of brightfield and simple polarization to bring out complex details such as stress in metal and other materials
- The infinity-corrected optical system eliminates certain optical errors when using filters and other in-line components, ensuring highly-precise images.
- The trinocular head provides a dedicated photo port for adding a camera for recording photos and videos.
- Includes a 1080p/2MP multi-function, ultra-sensitive camera using global-shutter technology for superior performance. Built-in recording, live streaming over HDMI, and Wi-Fi connectivity for working with computers with multi-user ability
The ME520T is a highly versatile microscope for materials inspection using transmitted and reflected light. Primarily designed as an upright metallurgical microscope, the high-power 100W epi-illumination system can be used for brightfield, darkfield, and basic polarized-light. Wafer inspection and metallographic applications will greatly benefit from the illumination modes. The addition of transmitted lighting provides even more flexibility for biological specimens, or backlighting hollow or porous materials. This instrument will be indispensable in any biology, medical, or materials lab.
Viewing Head

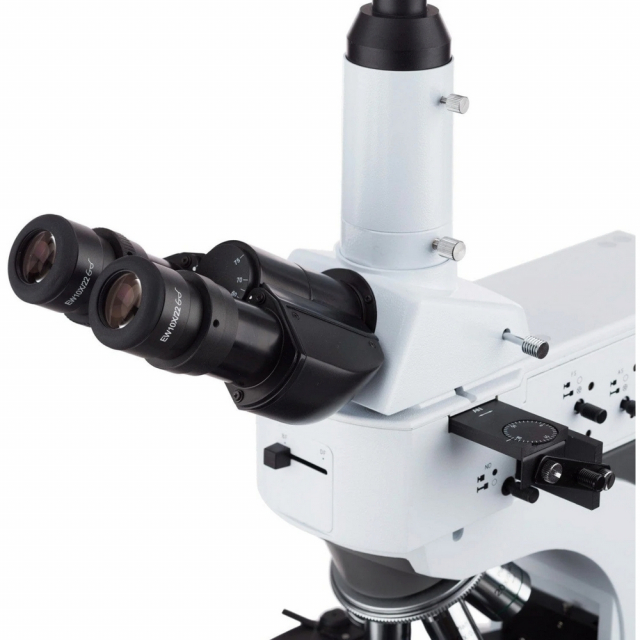

The microscope's head is designed for precision and comfort. The super-widefield optics provide a larger field-of-view so you can see more specimen at any magnification. Compensation-free Siedentopf interpupillary adjustment allows any user to properly align the oculars without readjusting focus. For users with astigmatism or asymmetrical vision, the left ocular can be adjusted to fine-tune focus. The photo port is equipped with a 23mm tube for attaching cameras with compensating lenses, and is height-adjustable to match focus with the eyepieces. The port is compatible with AmScope YX series C-mount adapters which can attach directly to C-mount cameras without a compensating lens – ideal for 1" format sensors. The head is set to a 30° incline which is ideal for viewing from a standing position, and it can be rotated 360°.
Optics
The infinity-corrected optical system eliminates optical errors when using filters and other in-line components, ensuring highly precise images. This is important to guarantee optical resolution and field-flatness when using the episcopic illuminator and any additional filtering.

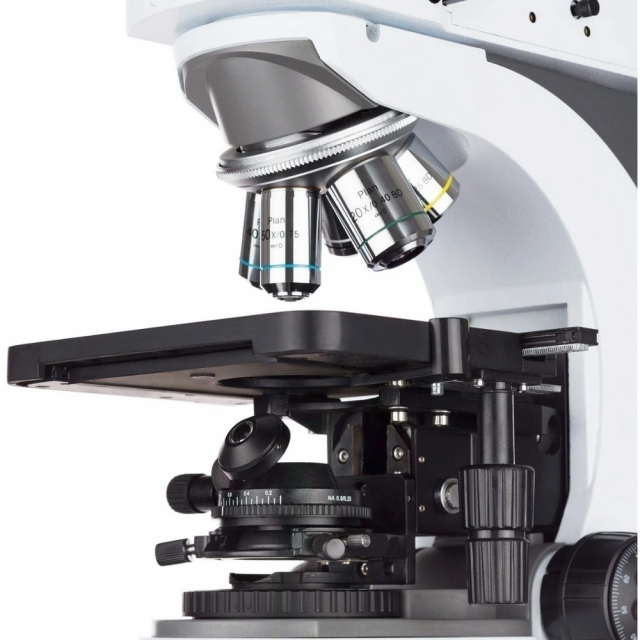

The quintuple objective turret has three RMS objective mounts and two M25 mounts for BD brightfield/darkfield objective lenses. Five RMS lenses are included for transmitted or reflected lighting ranging from 5X to 100X. 10X and 20X BD lenses are included for use with brightfield and darkfield reflected lighting for extreme versatility. With the 10X and 20X eyepieces, eight unique magnifications are available from 50X to 2000X. The turret's reversed orientation provides more working room above the stage. These high-quality lenses are achromatically corrected to improve resolution and color accuracy, with planatic flat-field correction to provide edge-to-edge sharpness.
The Stage
The 3-layer mechanical stage provides smooth and precise movement for examination of specimen slides, with a large translation range for viewing larger samples. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimens is intuitive and precise for users at any skill level. Symmetrical focus controls are coaxially mounted for fast, intuitive focusing. A height limit can be set to prevent contact damage, as well as presetting optimal focus distance.

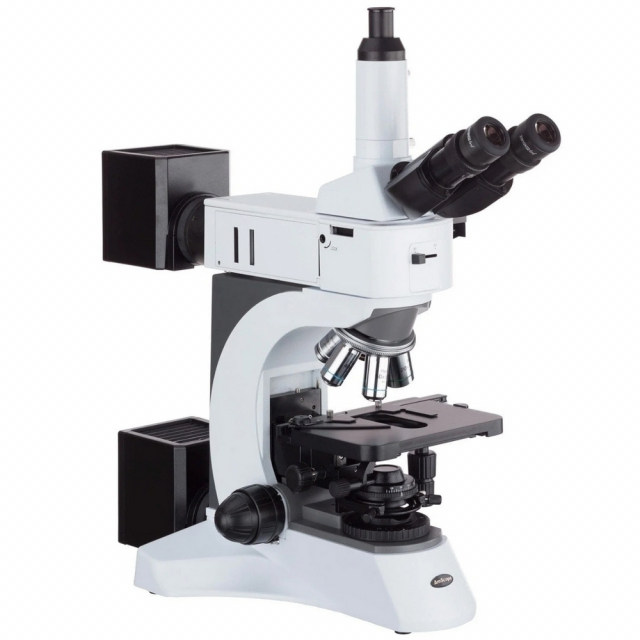

Koehler Episcopic Illumination
The episcopic illuminator provides 100W of incandescent light, with field and aperture diaphragms for precise control of contrast. Proper adjustment will produce even illumination across the field with improved collimation. The optimized brightness and centering will result in consistent lighting for brightfield applications, and critical improvements in darkfield applications.
The microscope is equipped with 10X and 20X BD (brightfield/darkfield) objective lenses which double as darkfield condensers when using reflected lighting. A slider on the front of the illuminator lets you quickly switch between brightfield and darkfield modes, allowing you to highlight different details.
The illuminator is also equipped with a polarizer and analyzer for even more flexibility. Reflected polarized-lighting will pronounce details in a range of materials and microelectronics, particularly those with birefringent components.

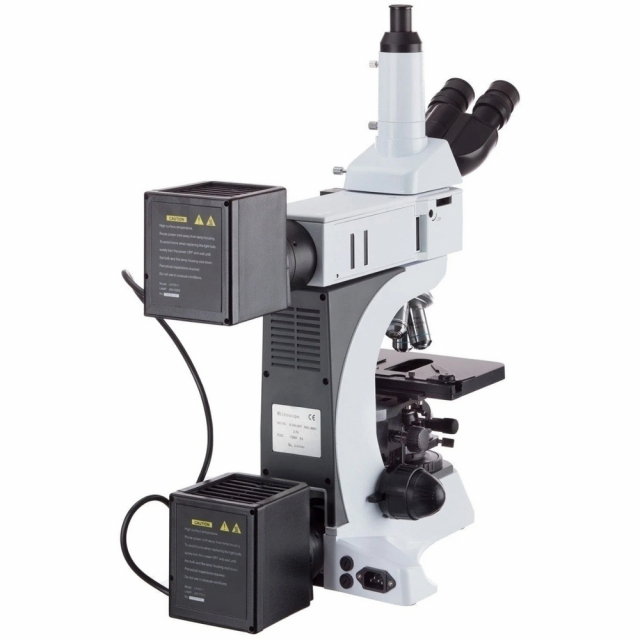

Koehler Transmitted Illumination
Built on Koehler illumination principals, the sub-stage lighting provides evenly-distributed light for optimal contrast. The rear-mounted halogen light-source provides 100 CRI illumination with ample brightness for contrast-enhancement methods like darkfield. The lower color temperature of the halogen light-source causes less eyestrain compared to high-Kelvin LED. The light condenser uses a swing mechanism for optimized lighting at both high and low magnifications, with a NA0.25 setting for full coverage at extremely low magnifications. An iris diaphragm allows you to adjust the aperture to optimize contrast and depth-of-field. The condenser holder uses rack-and-pinion height adjustment for precision control, and is centerable for proper alignment. The condenser is top-mounted for easier replacement when working with additional condensers. The illuminator's field lens provides an iris diaphragm to control light-spread, optimizing contrast and definition in specimen features.
Digital Imaging
1080p Digital Imaging using Global-Shutter Technology

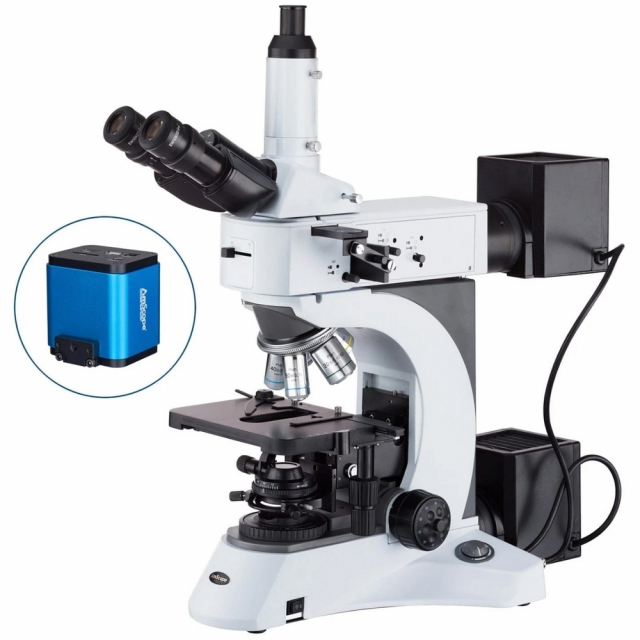

This microscope comes with a next-generation live-view imaging system. The hyper-sensitive CMOS sensor captures images with better efficiency, and much-improved speed compared to CCD sensors. The camera uses global-shutter technology which produces smoother motion in video. The camera uses a standard C-mount interface for maximum compatibility with various microscopy-systems. It can be used as a stand-alone recorder when used with an HDMI monitor or television, or live-streamed to a PC via Wi-Fi for image-capture and video-recording.
The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.
