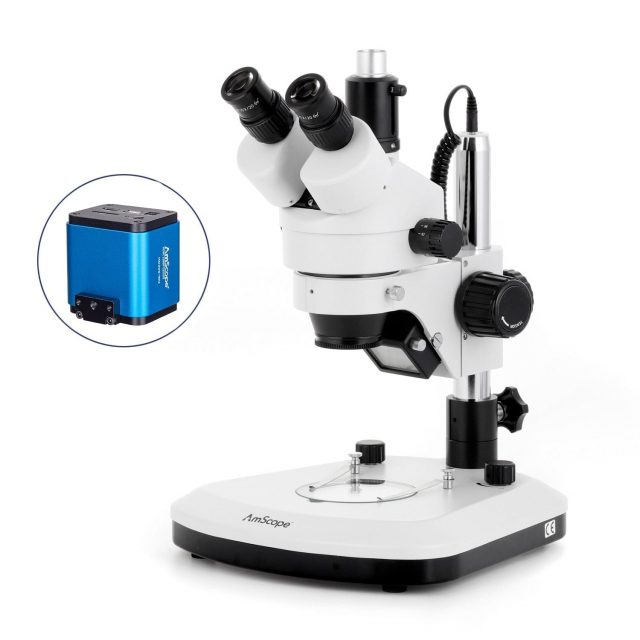

AmScope, SM-1T-PL-HD2, SM-1 Series Zoom Trinocular Stereo Microscope 7X-45X Magnification with LED Light, 2MP HDMI CMOS C-Mount Camera on Pillar Stand with Extra Large Base Plate
SM-1T-PL-HD2 Includes Only:
- One trinocular stereo microscope head
- One photo port
- 10X eyepiece(s)
- One pair eye-guards
- One pillar stand
- One focusing block
- One top-light
- One pair stage clips
- One power cord
- One dust cover
- One HD Digital Camera
- One USB Mouse
- One USB Cable
- One HDMI Cable
- One SD Card
- One Power Adapter
- One CD with Software and User's Instructions
Key Features:
- 7X-45X zoom magnification using high-quality Greenough stereoscopic objective lenses.
- Super widefield optical system offering crystal clear images
- Both top and bottom LED illumination
- Heavy-duty sturdy pillar stand with metal framework
- Trinocular port for adding photo or video capability
- Includes a 1080p/2MP multi-function camera with built-in recording that can stream live video over HDMI and connect to a computer using USB
Features:
- A great microscopy system for temperature-sensitive applications
- Contemporary LED incident (top) cool lighting and LED reflecting-plate bottom illumination
- Brightness-adjustable with separate dimmer controls
- Large zoom range continuous magnification
- 45° inclined, 360° swiveling head with SUPER widefield eyepieces
- High-eyepoint design for easy observation including eyeglass wearers
- High resolution with great flatness and contrast
- Sharp stereo erect images over a SUPER widefield of view
- Crystal clear original true color images
- Both ocular-tubes with adjustable diopter
- Adjustable interpupillary distance
- Accurate alignment ensuring a fatigue-free long time viewing
- Full optical glass elements
- Precise ground glass lenses
- All metal mechanical components
- Industry standard 23mm upright tube for photo or video accessories
- Metal pillar stand finished with stain resistant enamel
This top-of-the-line trinocular stereo zoom microscope is equipped with SUPER widefield optics, and a versatile dual LED illumination system. This microscope has been designed for use in orga-nic or temperature-sensitive applications like dissecting live tissues or observing live organisms. AmScope low-temperature LED system allows you to use both incident illumination, which shines light down onto a 3-dimensional specimen, and reflecting-plate bottom illumination, which shines light up through a transparent sample. Because the top and bottom LED lights are controlled by separate dimmers, you are able to customize lighting for the optimal level of illumination, whatever the situation.
The stereo optics provide clear, sharp images with excellent focus-depth and a large working-distance. With 0.7X-4.5X zoom objectives, moving through the magnification range is as easy as turning a knob. 10X wide-field eyepieces provide an ample magnification range from 7X to 45X, with high-eyepoint optics to accommodate glasses or goggles.
This microscope is especially useful for applications that require cool illumination. It is perfect for the examination of orga-nic matter, such as insects, plants, or virtually any 3-dimensional, temperature-sensitive object. It is ideal for those who work in biology, forestry, archaeology, and agriculture. With its high resolution, good depth, and broad field of view, this microscope can be used for both educational and professional purposes in research labs, hospitals, schools, and veterinary offices.
This microscope comes with a 1080p multifunction camera which can be used to record directly while streaming images to a monitor or TV, or with a computer. Connected to an HDMI monitor or TV, 1080p live video can be viewed at a super-smooth 60fps, while recording directly to a Secure Digital card at 25fps. The included USB mouse allows you to make adjustments in the internal software for settings such as white-balance and exposure. Optionally, a companion HDMI monitor can be attached directly to the camera, creating a self-sufficient turnkey system.
As an alternative solution, connect the camera to a computer via USB for remote software control. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.
