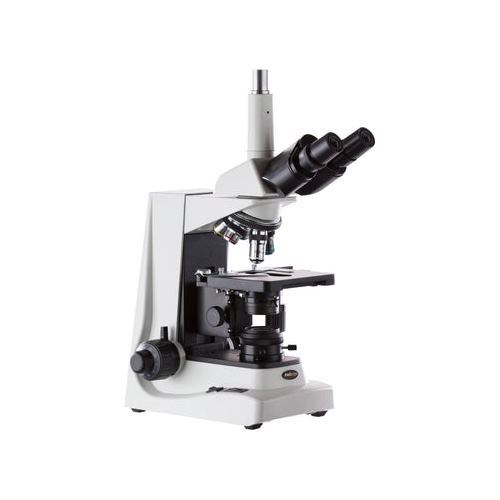

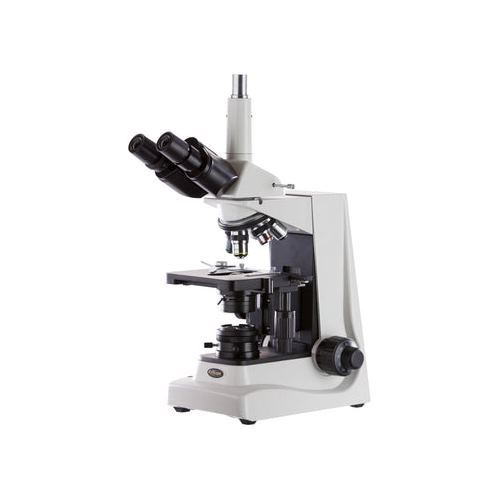

AmScope, T680B-14M, 40-2000X Advanced Professional Biological Research Kohler Compound Microscope and 14MP Camera
T680B-14M Includes Only:
- One Trinocular Siedentopf Head
- One Microscope Body Frame with Base and Kohler Illumination System
- Five High Quality Objectives: 4X, 10X, 20X, 40X and 100X
- One Pair of Widefield WF10X Eyepieces
- One Pair of Widefield WF20X Eyepieces
- One Power Cord
- Color Filters
- One Dust Cover
- One Spare Halogen Bulb
- One Spare Fuse
- Immersion Oil
- User's Manual Download
- One USB 2.0 Digital Camera
- One Reduction Lens
- Two Sizing Adapters
- One USB Cable
- One Software CD
This is a professional trinocular compound microscope that offers research grade performance and advanced features. It comes with five high quality objectives (4X, 10X, 20X, 40X, 100X), a Koehler illumination system, a 30 degree inclined 360 degree rotatable compensation-free trinocular head, and 3-D mechanical stage. It is an ideal instrument for advanced researches.
The 14MP digital camera captures still images and video, and allows you to view a live stream on your PC. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-Speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.
Features:
- 40X-2000X research grade high quality optical system

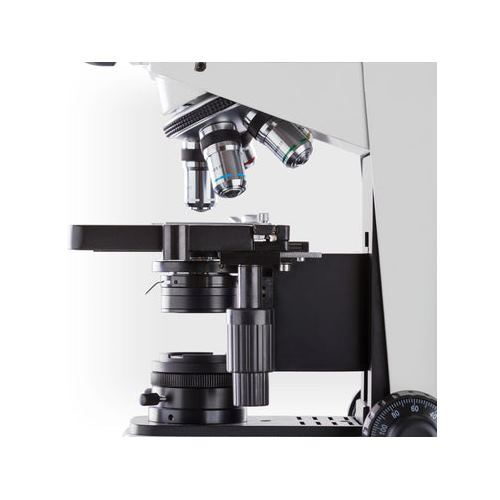

- 3D mechanical stage with Kohler condenser and iris diaphragm
- Sturdy metal framework and coaxial coarse and fine focusing
- Trinocular port for adding photo or video capability
- 14MP digital camera with advanced editing, processing and measuring software for Windows XP/Vista/7/8
- An Advanced First-Class High Quality Laboratory Microscope
- Fully Coated Optical System with High Resolution
- Crystal Clear Sharp Images
- 30 Degree Inclined, 360 Degree Swiveling Compensation-free Trinocular Head
- Eight Magnification Levels: 40X, 80X, 100X, 200X, 400X, 800X, 1000X, 2000X
- Kohler Illumination System with Field Diaphragm for Lighting Control
- Kohler Condenser with Iris Diaphragm and Swing-Out Filter Holder
- Intensity-Variable Transmitted Halogen Lighting System
- Color Filters Included
- Rack and Pinion Adjustment for Condenser
- Large 3-D Double Layer Mechanical Stage
- Low Position Coaxial Stage Movement Control Knobs
- Dual Side Coaxial Coarse and Fine Focusing Control
- Adjustable Interpupillary Distance
- Adjustable Diopters on Both Oculars
- Durable Cast Alloy Frame & Stand with Stain Resistant Enamel Finish
- Five Achromatic DIN Objectives Included
- Two Sets of Wide Field Eyepiece: Wide Field 10X (18mm Field of View) and 20X
- Quintuple, Reversed, Extra-Large Nosepiece with Wide, Knurled Grip for Easy Operation
- Large Double Layer Mechanical Stage with Stain Resistant Finish
- Upward Stage Stopper to Protect Objectives and Slide
- Manufactured under ISO 9001 Quality Control Standard.
