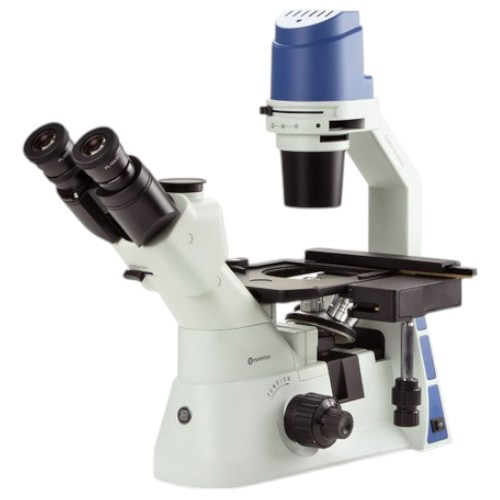

Euromex, EOX-2053-PL, Oxion Inverso Trinocular Microscope with Mechanical Stage PL 10/20/40x, 5W NeoLED and with Transportation Box
EOX-2053-PL Includes Only:
- Microscope
- Power cord
- Dust cover
- User manual
- Transport case
Features:
- Life Science applications
- Observation of tissue cultures, living cells
- Long working distance IOS plan achromatic objectives
- Revolving quintuple nosepiece
- 5W LED transmitted illumination
- 100W mercury vapor lamp for fluorescence
Eyepieces
Pair of DIN HWF plan 10x/22mm eyepieces.
Head
- Trinocular 45° inclined tubes with extended low and high positions for eyepieces
- One diopter adjustment on the left eyepiece
- Interpupillary distance of 54 to 75 mm
- Trinocular head with 0-100 % positions
Nosepieces
Revolving quintuple nosepiece on ball bearings.
Objectives for brightfield
Infinity color Corrected long working distance plan 10x/0.25, 20x/0.40, 40x/0.60 IOS objectives.
Stage
Stage 250 x 230mm equipped with a coaxial mechanical 120 x 78mm X-Y stage, delivered with:
- metallic insert for 35mm cell culture dish dishes
- 76 x 26mm slide holder
- lass insert with hole
Condenser
N.A. 0.30 condenser with iris diaphragm. Working distance 72 mm.
Focusing Adjustment
coaxial 25mm coarse and fine adjustments, 2 μm precision and with friction adjustment.
Illumination
Transmitted 5W LED Intensity adjustable with internal 100-240V power supply. Fuse holder 3.15 A / 250 V.
