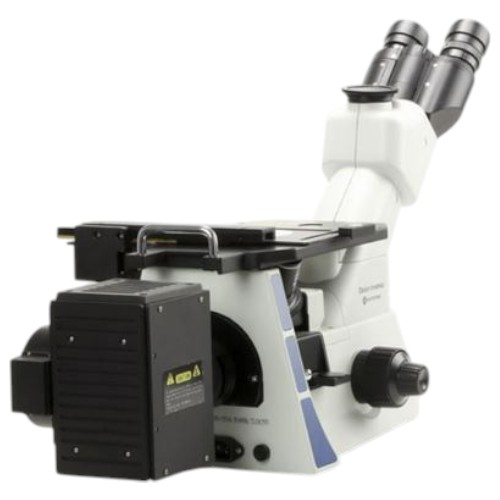

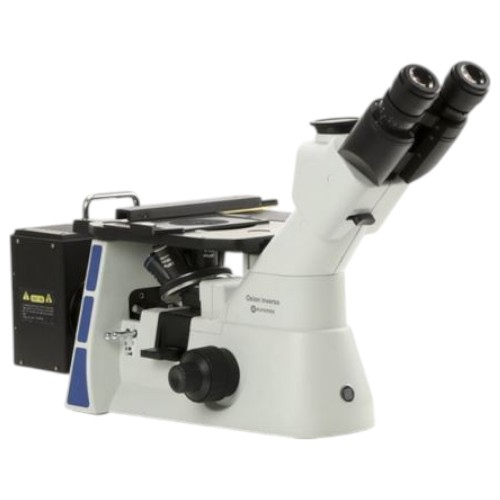

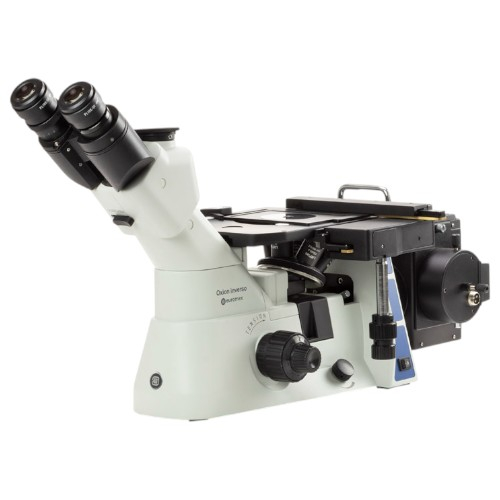

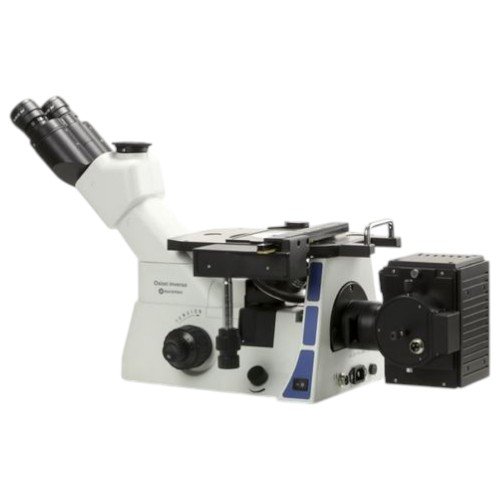

Euromex, EOX-2653-PLM, Oxion Inverso Trinocular Materials Science Microscope with Plan 5/10/20x LWD IOS, Semi Apochromatic 50x LWD IOS Objectives and Mechanical Stage
EOX-2653-PLM Includes Only:
- Microscope
- Power cord
- Dust cover
- User manual
- Transport case
Features:
- Observation of all types of materials
- Brightfield with polarization
- Long-term IOS plan achromatic objectives
- Long working IOS plan semi-apochromatic objectives
- Revolving quintuple nosepiece
- 50W halogen Kohler illumination
Eyepieces
Pair of DIN HWF plan 10x/22mm eyepieces.
Head
- Trinocular 45° inclined tubes
- One diopter adjustment on the left eyepiece.
- Interpupillary distance of 54 to 75 mm.
- Trinocular head with light path selector 100-0 / 0-100
Nosepieces
Revolving quintuple nosepiece on ball bearings.
Objectives for brightfield
Infinity color Corrected long working distance 5x/0.15, 10x/0.14, 20x/0.45 plan achromatic IOS objectives and plan semi-apochromatic S50x/0.55 and S100x/0.80 IOS objectives. No cover glass correction
All optics are anti-fungus treated and anti-reflection coated for maximum light throughout.
Stage
Large stage 250 x 230mm equipped with a coaxial mechanical 120 x 78mm X-Y stage, delivered with:
- metallic insert standard with 12mm diameter hole and 25mm diameter hole
- metallic insert with a hole for the mechanical stage
Focusing Adjustment
coaxial 25mm coarse and fine adjustments, 2 μm precision, and with friction adjustment.
Illumination
Reflected Kohler 50W halogen, Intensity adjustable with internal 100-240V power supply. Fuse holder 3.15 A / 250 V.
Polarization
Standard polarization filter and 360° rotating analyzer.
Filters
Blue and green filters are mounted in the slider, which can be inserted at the back of the illumination attachment. Polarization filter in the slider, to be inserted under the nosepiece.
