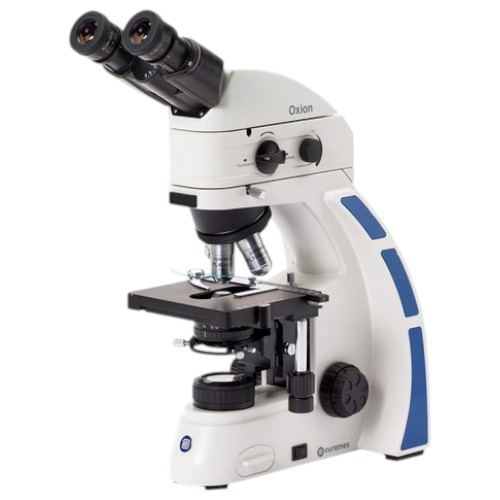

Euromex, EOX-3232-560, Oxion Binocular Microscope for Fluorescence with Plan Semi Apochromatic Fluarex PL-FL 4/10/S40/S100x Oil IOS Objectives and Reflected 560nm FluoLED Epi-Illumination Attachment with a Single cube with Filters for Green Excitation with EX 540-580 DM 600 Em
EOX-3232-560 Includes Only:
- Microscope
- Power cord
- Dust cover
- 5 ml immersion oil
- User manual
- Polystyrene box
Features:
- HWF10x/22mm eyepieces
- Reversed nosepiece for a maximum of five objectives
- Integrated mechanical stage
- coaxial coarse and fine adjustments
- Height adjustable Abbe N.A. 1.25 condenser with iris diaphragm and filter holder
- 3W LED transmitted illumination
- Fluorescence attachment for a maximum of four filter blocks and with 100W mercury vapor incident illumination
- Fluorescence attachment with a single filter block and 560nm (Green) incident illumination
- Ergonomic stand and head
Eyepieces
- HWF10x/22mm eyepieces
- All eyepieces can be secured by an Allen screw
Head
- Siedentopf-type heads have 30° inclined tubes
- Interpupillary distance from 50 to 75 mm
- Two ± 5 diopter adjustments
Nosepieces
- Revolving and reversed nosepiece for a maximum of five objectives
- The fluorescence models with mercury vapor lamp are equipped with an orange UV protection shield
Objectives
- Plan Fluarex 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.30 oil immersion IOS objectives
- All S40x and S100x oil immersion objectives are spring-loaded.
- All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Focusing
- coaxial coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200 μm per rotation, total travel range is approximately 28 mm
- Supplied with an adjustable rack stop to prevent damage to the sample and objectives
- The coarse adjustments are equipped with friction control
Stage
- 150 x 140mm stage with integrated 76 x 50mm X-Y mechanical stage
- Designed for 2 slides
Condenser for Fluorescence
The fluorescence attachment is equipped with an integrated condenser with an iris diaphragm and a field diaphragm.
Illumination for Fluorescence (LED)
The FluoLED attachment is standard delivered with a 560nm LED (EX 540-580, DM 585, EM 608-690 filter set, TexasRed).
