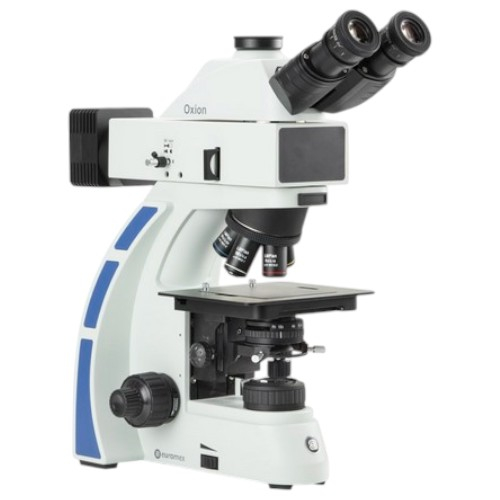

Euromex, EOX-3240, Oxion Trinocular LED Microscope for Materials Sciences with M-Plan 5x/10/20x and M-Plan Semi Apochromatic 50x IOS Objectives
EOX-3240 Includes Only:
- Microscope
- Power cord
- Dust cover
- Spare fuse
- User manual
- Polystyrene box
Features:
- Trinocular model
- HWF10x/22mm eyepieces
- Reversed quintuple nosepiece
- Plan M-IOS objectives
- Transmitted 3W NeoLED™ illumination
- Reflected 3W NeoLED™ illumination
- Polarization and analyzer filters
Eyepieces
HWF10x/22mm eyepieces. All eyepieces can be secured.
Head
Trinocular Siedentopf head with 30° inclined tubes. Interpupillary distance from 48 to 75 mm. Diopter ± 5 diopter adjustment on both eyepieces. A unique rotating system allows the ergonomical positioning of both tubes in an upper (431 mm) and in a lower position (397 mm).
Nosepieces
Reversed nosepiece for a maximum of 5 objectives on ball bearings.
Objectives
Standard configurations equipped with infinity Corrected DIN long working distance LWD plan M-IOS 5x/0.14, 10x/0.25, 20x/0.40, and LWD plan semi-apochromatic M-IOS 50x/0.55 objectives.
Focusing
- coaxial coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200 μm per rotation, total travel approximately 28 mm
- Supplied with an adjustable rack stop to prevent damage to the sample and objectives. The coarse adjustments are equipped with friction control
Stage
- 180 x 145mm stage with integrated mechanical 78 x 45mm X-Y stage
- Is supplied with plain metal and plain glass inserts
Condenser
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder.
Illumination
All models are supplied with 3W adjustable NeoLED illumination with integrated 100-240V power supply. Kohler illumination with field diaphragm.
Reflected EPI-Illumination
Intensity adjustable 3W NeoLED Kohler illumination with external 110-240V power supply. Push-pull type 90° rotatable polarizer and fixed analyzer. Built-in condenser with field and aperture iris diaphragm. Oblique lighting feature. Supplied with blue and green filters.
