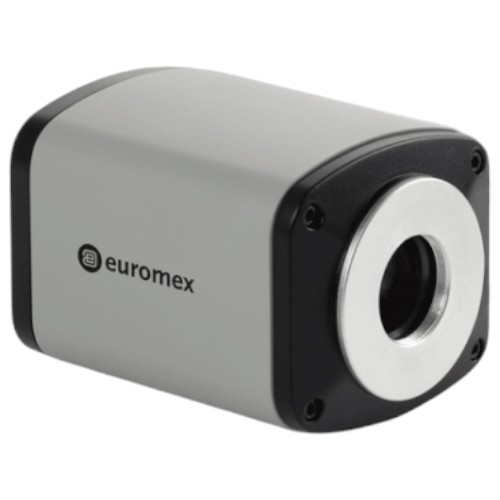

Euromex, EVC-3031, HD-Lite color HD High Definition 5 MP High Speed camera 1080p, 24 Bit color Rendering, Standard SD card, HDMI and USB-2 Output with Built-In capture Software
EVC-3031 Includes Only:
- The HD-Lite camera
- USB-2 (A-A type) cable
- C-Mount adapter with 0.45x objective (For microscopes with a standard 23.2mm tube)
- 16 GB SD card
- USB-2 mouse
- 30.0 and 30.5mm to 23.2mm conversion adapters for use with stereo microscopes
- 1mm / 100 (10 μm / division) calibration slide
- External 12V 2A power supply
Features:
- HD 1080p high definition color cameras
- Real-time images directly on TV, monitor or beamer
- Stand alone or used via Pc
- Built-in mouse-driven software
- C-Mount interface
- HDMI, USB-2 and SD memory card
- compatible with ImageFocus Plus software
The Euromex HD-Lite camera offer the perfect solution to modern microscopy for industry and laboratories where real-time images are needed. These HD image quality cameras can be used for biological, metallurgical or stereo microscopes.
High definition HD1080p CMOS color camera with HDMI and USB-2 interfaces
The real-time images generated with this standalone camera provide excellent color rendering at high frame rates, up to 15 frames per second.
The HD-Lite high definition camera can be used in two modes, in a stand-alone with his embedded mouse-driven software or in a computer-Controlled mode.
Suitable for all Euromex microscopes and most Zeiss, Leica, Olympus and Nikon models.
computer-Controlled versus stand-alone
There are two ways to use the camera: computer-Controlled or as a standalone system.
Stand-Alone
No need to open or start a computer or any computer knowledge to use these cameras. Most camera settings are done automatically, and therefore, these cameras are very friendly. This results in faster, more flexible, and compact working conditions
Simply connect the camera to a high definition HD screen, TV-HD or HD-beamer with an HDMI input, and the system is ready to go. The mouse-driven built-in software of the camera enables capturing 2592 x 1944 pixels JPG images or recording 1080p videos on the integrated SD memory card. The captured images or recorded videos can be very easily reviewed or replayed on the HD screen.
The embedded software of the camera features functions like Digital Zoom in/out, Horizontal Flip, Vertical Flip, Auto-Exposure and Manual Exposure Time (0-10 sec), Gain, RGB, White balance, Gamma, Sharpness, Saturation and Contrast and Grids
These key properties make the cameras ideal for Life-, Materials Sciences applications, for industry, education and live demonstrations.
On-Screen controls (No Need For computer):
- capture images and videos to SD
- Playback images and videos from SD
- compare images
- Grids
- Digital zoom in/out
- Flip
- Pause
- camera settings (white balance, color control etc)
computer controlled
Users who want more camera controls and more functions can also connect the camera to a computer and take advantage of the power of the Euromex ImageFocus Plus software. It runs on Windows 10/11, both 32 and 64-bit, and capture software (Mac). The software can be installed in one of the 6 different languages (English, French, German, Dutch, Spanish and Russian. Euromex supplies free updates on www.Euromex.com
Besides extended camera settings, the software can save images in JPG, TIFF or BMP formats or record videos in .avi format on the hard disk of the computer. The software offers full control over the camera parameters. Specific functions for fluorescence like histogram adjustments and combining captured fluorescence images.
