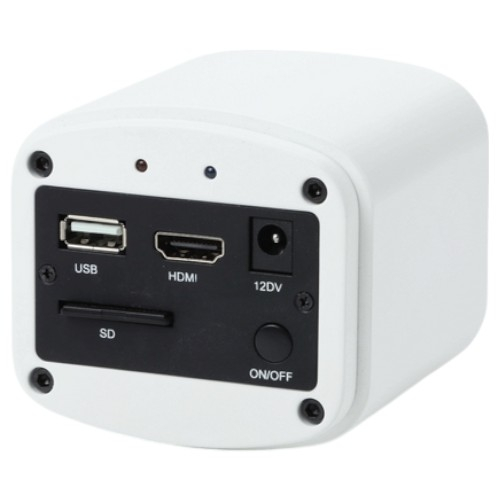

Euromex, EVC-3036, HD-Ultra color HD High Definition High Speed camera 1080p, 36 Bit color Rendering, 1/2.8" 6 MP Sony Sensor, Standard SD card, HDMI and USB-2 Output with Built-In capture Software
EVC-3036 Includes Only:
- The HD-Ultra 1080p camera
- USB-2 (A-A type) cable
- C-Mount adapter with 0.37x objective (For microscopes with a standard 23.2mm tube )
- 16 GB SD card
- USB-2 mouse
- 30.0 and 30.5mm to 23.2mm conversion adapters for use with stereo microscopes
- 1mm/100 (10μm/division) calibration slide
- External 12V 2A power supply
Features:
- HD 1080p high definition color camera
- Real-time images directly on TV, monitor or beamer
- Stand alone or used via Pc
- Built-in mouse-driven software
- C-Mount interface
- HDMI, USB-2 and SD memory card
- compatible with ImageFocus Plus software
The Euromex HD-Ultra camera offers the perfect solution to modern microscopy for industry and laboratories where real-time images are needed. These HD image quality cameras can be used for biological, metallurgical or stereo microscopes.
High definition HD1080p CMOS color camera with HDMI and USB-2 interface
The real-time images generated with this standalone camera provide excellent color rendering at high frame rates, up to 60 frames per second.
The HD-Ultra high definition camera can be used in two modes: in a stand-alone mode with its embedded mouse-driven software or in a computer-Controlled mode.
Suitable for all Euromex microscopes and most Zeiss, Leica, Olympus, and Nikon models.
computer-Controlled versus stand-alone
There are two ways to use the HD-Ultra camera: computer-Controlled or as a standalone system.
Stand-Alone
No need to open or start a computer or any computer knowledge to use these cameras. Most camera settings are done automatically, and therefore, these cameras are very user-friendly. This results in faster, more flexible, and compact working conditions.
Simply connect the camera to a high definition HD screen, TV-HD, or HD-beamer with an HDMI input, and the system is ready to go. The mouse-driven built-in software of the camera enables capturing 3264 x 1836 pixels JPG images or recording 1080p videos on the integrated SD memory card. The captured images or recorded videos can be very easily reviewed or replayed on the HD screen. The HD-Ultra even offers a full range of measuring functions on live and captured images.
The embedded software of the camera features functions like Digital Zoom in/out, Horizontal Flip, Vertical Flip, Auto-Exposure, and Manual Exposure Time (0-10 sec), Gain, RGB, White balance, Gamma, Sharpness, Saturation and contrast, and Grids. D.
Different measurement functions can be done on live or on captured images! These functions include line and free curve, polygon and rectangle, angle, circle through three points, and circle with radius measurements. Results can be exported as cSV or txt files.
These key properties make the cameras ideal for Life-, Materials Sciences applications, for industry, education and live demonstrations.
computer controlled
Users who want more camera controls and more functions can also connect the camera to a computer and take benefit of the power of the Euromex ImageFocus Plus software. It runs on Windows 10 and higher, both 32 and 64 bits. The software can be installed in one of the 6 different languages (English, French, German, Dutch, Spanish and Russian. Euromex supplies free updates on www.Euromex.com
Besides extended camera settings, the software can save images in JPG, TIFF or BMP formats or record videos in .avi format on the hard disk of the computer. The software offers different measurement functions on life and captured images and also full control over the camera parameters. Specific functions for fluorescence, like histogram adjustments.
