Buy LX Microscopes 18791BB, microFOCUS Autofocus Digital Inspection System

info@PrimeLabMed.com

1-855-590-6919
1-908-282-3482 (Intl.)

Options and Related Products

Stand:: Stand: Ball-Bearing Boom Stand

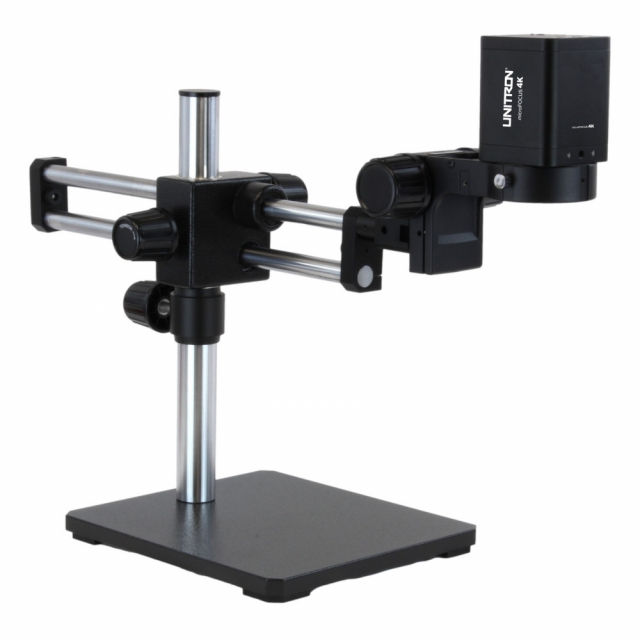

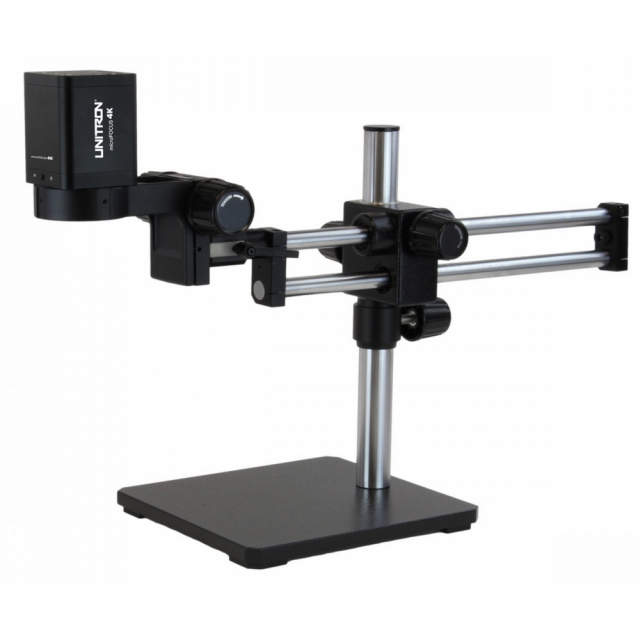

LX Microscopes, 18791BB, microFOCUS 4K Autofocus Digital Inspection System, Ball-Bearing Boom Stand

18791BB Includes Only:

MicroFOCUS 4K with AF lens
Attachable LED ring light
Wireless mouse
HDMI cable (2m)
USB 2.0 cable (2m)
USB memory stick (32GB)
USB stick with PC software
USB WiFi adapter
12V/3A power supply

Features:

Full 4K live images with 1x - 18x optical zoom
Built-in software for image capture, processing, calibration, measurement and more!
Ports for wireless USB mouse (controls built-in software), HDMI for live video streaming, save images to SD card or USB flash drive, data transfer via USB Video port or LAN Ethernet connection.
Live measurement and annotation tools
Flexibility to save images, video and measurements to a USB flash drive or SD card
Compare live with saved images using the split screen function
Review saved images and video in the gallery
Eliminate bench clutter with the wireless mouse and integrated LED ring light
4K/1080p auto-switching to accommodate monitor resolution
Ball-bearing boom stand with bonder arm included
Ø76mm mounting ring (OD of LED ring light) allows easy mounting to boom, pole or flex arm stands with standard focus mounts.
Use LX Microscopes AccuView or AccuView Lite PC software for expanded control and enhanced image processing and analysis (MacOS supports only AccuView Lite)

The microFOCUS 4K autofocus digital inspection microscope from Unitron features built-in software for operation without the need for a PC, and includes robust features for image capture and processing, calibration, measurement, and illumination control of the included LED ring light.

Actual magnification is displayed right on the monitor. Experience outstanding full 4K image quality with no image lag. The microFOCUS 4K is the perfect solution for streamlining your inspection process.

For more information, please see pdf file Data Sheet

See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Declaration

Declaration Due to recent government-imposed tariffs, all pricing is subject to change based on the manufacturer updates.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details

Reviews

Microscope

Sensor

Sony IMX415 STARVIS CMOS, color

Sensor Size

1/2.8" (5.57mm x 3.13mm)

Pixel Size

1.45μm

Resolution

8MP (3840px x 2160px)

Frame Rate

30fps at 3840x2160 (HDMI, Ethernet, USB)

Operating Environment

-10°C – 50°C
30 – 80% RH

Connectivity

USB mouse: control built-in software
USB 2.0: Image storage (USB flash drive) or data transfer to PC (requires AccuView/AccuView Lite)
HDMI: Image streaming to monitor
LAN: Data transfer via Ethernet connection (requires AccuView/AccuView Lite)
SD Card: Image storage (not included)

Stand

Bal-bearing boom stand, bonder arm, Vertical post 15.5", Horizontal arm 23", Safety collar

Monitor

User-supplied 4K or HD monitor

Power

DC12V3A (power adapter included; UL/CE/FCC)

Optical

Working Distance

250mm

Depth of Field

205mm - 255mm

Zoom Range

1x – 18x

Field of View (FOV)

1x: 255mm x 145mm
18x: 14.2mm x 8mm

Resolution

160 lp/mm

Built-in Software

User Interface

Control with USB mouse (included)

Image Capture

8MP (3840x2160), JPG or TIF, save to SD card or USB flash drive

Video Record

8MP (3840x2160), 30fps, H264/H265 encoded MP4, save to SD card or USB flash drive

Camera Control Menu

Includes: Exposure, Gain, White Balance, Sharpness, Denoise, Saturation, Gamma, Contrast, Brightness

Measurement Tools

Includes: Calibration, Measurement, Measurement Parameter Export

Synthesis Controls

Includes: Zoom, Flip, Freeze, Crosshair, LED Control, Autofocus, Comparison, Browser, Setting, Version info

Autofocus Controls

Includes: Zoom, Autofocus, One Push, Manual Focus, Reset

PC Software (AccuView/AccuView LITE)

White Balance

Auto white balance

Color Technique

Ultra-Fine Color Engine

Recording

Still image or video

AccuView PC Software Environment (LAN/WLAN/USB Video Output)

White Balance

Auto White Balance

Color Technique

Ultra-Fine Color Engine

Capture/Control

Windows: AccuView
macOS: AccuView Lite

Data Recording

Still image or video

Operating System

Windows 7/8/8.1/10 (32bit & 64bit) (AccuView)
macOS X (AccuView Lite only)

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or higher
Memory: 4GB or more
Ethernet Port: RJ45 (for LAN connection)
Display: 19" or larger

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Microscope

Sensor

Sony IMX415 STARVIS CMOS, color

Sensor Size

1/2.8" (5.57mm x 3.13mm)

Pixel Size

1.45μm

Resolution

8MP (3840px x 2160px)

Frame Rate

30fps at 3840x2160 (HDMI, Ethernet, USB)

Operating Environment

-10°C – 50°C
30 – 80% RH

Connectivity

USB mouse: control built-in software
USB 2.0: Image storage (USB flash drive) or data transfer to PC (requires AccuView/AccuView Lite)
HDMI: Image streaming to monitor
LAN: Data transfer via Ethernet connection (requires AccuView/AccuView Lite)
SD Card: Image storage (not included)

Stand

Bal-bearing boom stand, bonder arm, Vertical post 15.5", Horizontal arm 23", Safety collar

Monitor

User-supplied 4K or HD monitor

Power

DC12V3A (power adapter included; UL/CE/FCC)

Optical

Working Distance

250mm

Depth of Field

205mm - 255mm

Zoom Range

1x – 18x

Field of View (FOV)

1x: 255mm x 145mm
18x: 14.2mm x 8mm

Resolution

160 lp/mm

Built-in Software

User Interface

Control with USB mouse (included)

Image Capture

8MP (3840x2160), JPG or TIF, save to SD card or USB flash drive

Video Record

8MP (3840x2160), 30fps, H264/H265 encoded MP4, save to SD card or USB flash drive

Camera Control Menu

Includes: Exposure, Gain, White Balance, Sharpness, Denoise, Saturation, Gamma, Contrast, Brightness

Measurement Tools

Includes: Calibration, Measurement, Measurement Parameter Export

Synthesis Controls

Includes: Zoom, Flip, Freeze, Crosshair, LED Control, Autofocus, Comparison, Browser, Setting, Version info

Autofocus Controls

Includes: Zoom, Autofocus, One Push, Manual Focus, Reset

PC Software (AccuView/AccuView LITE)

White Balance

Auto white balance

Color Technique

Ultra-Fine Color Engine

Recording

Still image or video

AccuView PC Software Environment (LAN/WLAN/USB Video Output)

White Balance

Auto White Balance

Color Technique

Ultra-Fine Color Engine

Capture/Control

Windows: AccuView
macOS: AccuView Lite

Data Recording

Still image or video

Operating System

Windows 7/8/8.1/10 (32bit & 64bit) (AccuView)
macOS X (AccuView Lite only)

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or higher
Memory: 4GB or more
Ethernet Port: RJ45 (for LAN connection)
Display: 19" or larger

Note

Note: Please read description carefully. Do not base your order on the picture presented.
