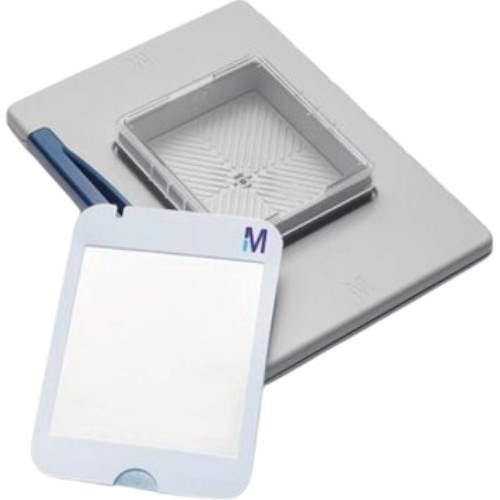

Millipore SNAP2MINI SNAP id 2.0 Protein Detection Mini System

SNAP2MINI Includes Only:

• SNAP i.d.® 2.0 Base
• Two Mini Blot Holding Frames
• Two Antibody Collection Trays
• Vacuum tubing
• Rolling Pad & Blot Roller
• Two Wetting Trays
• Quick Start Guide

Features:

• Processing of up to four blots at a time on a vacuum base with two individually controlled sides
• Comprises of three removable blot holding frame sizes: MultiBlot, Mini, and Midi, to accommodate different blot sizes
• Disposable blot holders, sized for MultiBlot, Mini, and Midi frames
• Blot spacer required with first-generation SNAP id system is now integrated into the blot holder
• Extended and off-line blot processing options: frames have lids and can be removed from the base for extended incubation (one hour to overnight), incubation in a shaker, or incubation at 4 °C
• Stackable frames so multiple blots can be processed at the same time;30-minute immunodetection with uniform signal across the blot
• Greater than 80% antibody recovery using the SNAP id 2.0 Antibody Collection Trays
• Compatible with nitrocellulose and polyvinylidene fluoride (PVDF) membranes
• Works with the most blocking buffers and visualization methodologies (e.g. chemiluminescence, fluorescence, or colorimetric)

Applications:

• Western blot analysis has used SNAP id 2.0 Protein Detection System-Mini (7.5 x 8.4 cm).

The SNAP id 2.0 Protein Detection System is the second generation of the SNAP i.d. method for detecting immunoreactive proteins on western blots. With this unique vacuum-driven system, the length of time required for immunodetection is greatly reduced. The classical western blotting time frame of 4- 24 hours is now accomplished in 30 minutes with no quality and signal compromisation. After protein transfer to a membrane (i.e., blocking, washing, and primary and secondary antibody incubations), all immunodetection steps can be performed with the SNAP id 2.0 system. SNAP id 2.0 Mini Blot Holder accepts up to 7.5 x 8.4 cm blots.

For more information, please see Data Sheet
