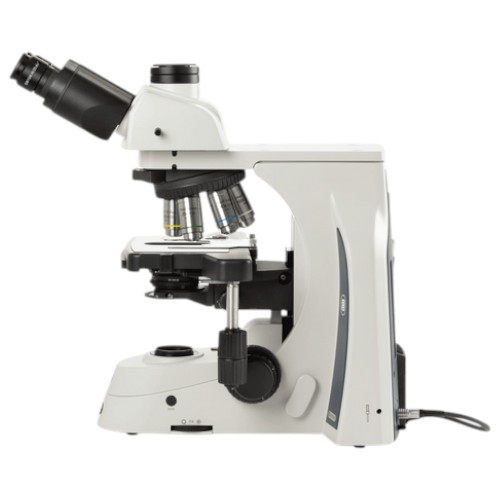

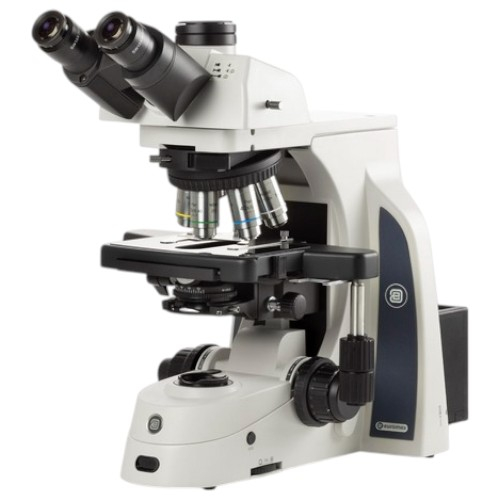

Euromex, EDX-2153-PLi, Delphi-X Observer, Trinocular Microscope with SWF10x/25mm 30mm Eyepiece, Plan PLI 4/10/20/S40/S100x Oil IOS Objectives, EIS 60mm Parfocal, 190 x 152mm Stage with 78 x 32mm Mechanical Stage and 100W Halogen Illumination
EDX-2153-PLi Includes Only:
- Microscope
- Power cord
- Dust cover
- Spare fuse
- User manual
- 5 ml immersion oil
Features:
- Sextuple nosepiece
- Plan 4/10/20/S40 EIS objectives
- 100W 24V halogen Kohler
- Plan S100x oil EIS objective
- DIN Super Wide field SWF10x/25 mm, 30 mm
- For slider with 1 lambda retardation plate for observation of monosodium crystal deposition (gout) and DIc slot (DIc ready)

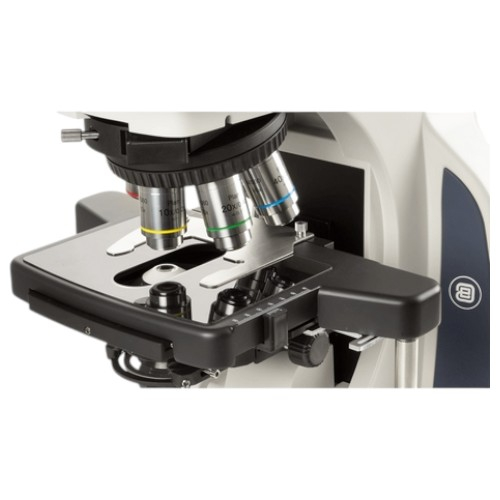

- 300/190 x 152mm stage with 78 x 32mm integrated right-handed mechanical stage with scratch-resistant Gorilla glass
- Height adjustable N.A. 0.90 / 1.25 Abbe swing-out condenser
- icare sensor for energy saving
- Universal photo tube
- 3-Position beamsplitter (100:0 / 80:20 / 0:100)
- Revolving sextuple reversed nosepiece on ball bearings
- Adjustable stage adjustment knobs
- Precise coarse and fine adjustments
- Full Kohler diaphragm

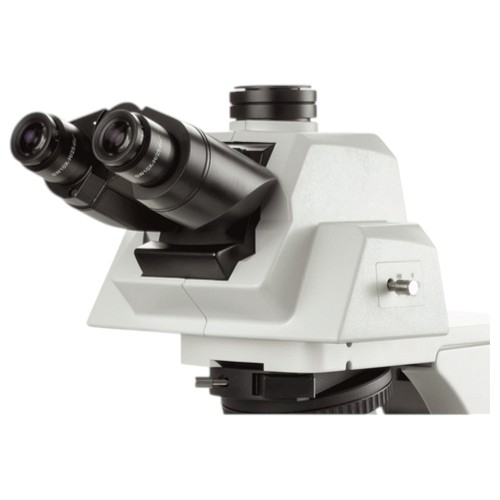

Standard Head
Siedentopf trinocular with 30° inclined tubes. Interpupillary distance adjustable between 47 and 78 mm. The trinocular standard head has an optical path selector (100:0 / 80:20 / 0:100). Diopter adjustment on both eyepieces.
Enhanced Infinity System (EIS)
The enhanced infinity system (EIS) of the Delphi-X Observer™ consists of Super wide field SFWF10x25mm eyepieces, high numerical aperture 60mm parafocal objectives, and a 200mm focal length tube lens. The 200mm focal length tube lens reduces the angle of the light rays passing the optics and, as a direct result, improves significantly the chromatic aberration corrections and contrast. The objectives with larger diameters enable much higher numerical apertures, improving the overall resolving power of the optical system.
For all these reasons, the Delphi-X Observer™ offers superior optical performance for the most demanding applications.
Focusing
- coaxial coarse and fine adjustment, 100 graduations, 1 µm precision, 100 μm per rotation, total travel range is approximately 35 mm
- Supplied with an adjustable rack stop to prevent damage to sample and objectives
- The coarse adjustments are equipped with friction control
- The focusing knobs can be switched from left to right according to the user's preference
The outstanding optical performance of the Delphi-X Observer™ with 25mm fields of view and high numerical aperture of the Plan 60mm parafocal EIS objectives enables perfect observations and color rendering at high resolving power. This is the perfect microscope for anatomo-pathologists.
