AmScope, B270-DMH18070, Advanced Student and Professional LED Compound Microscope w/ 7" Digital Display Camera Head

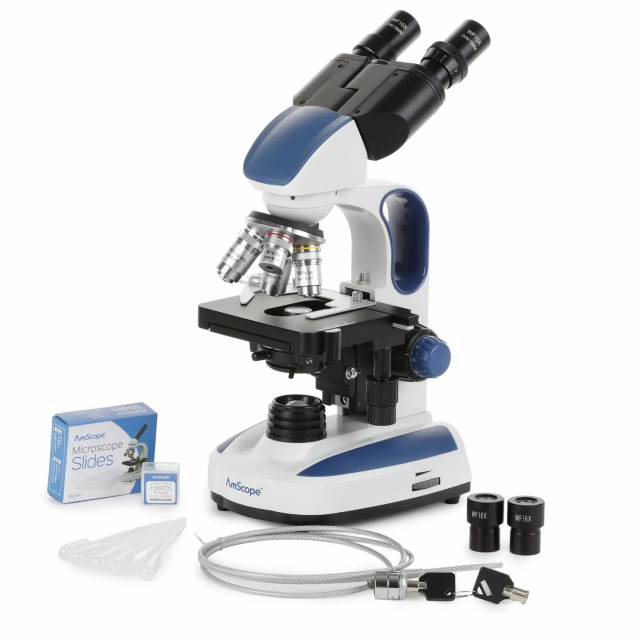

B270-DMH18070 Includes Only:
- One binocular microscope head
- One set microscope lock with key
- One 7" digital camera head
- One set of 50-pack blank slides
- One microscope body
- One set of 100-pack cover slips
- Four objective lenses: 4X, 10X, 40X, 100X
- One set of 25 plastic pipettes
- One pair of 10X eyepieces
- One blue color filter
- One dust cover
- One sample immersion oil
- One monitor power adapter
- 4gb SD card
Features:
- This B270 bundles includes a DMH series video system that combines monitor and camera into a single device. It attaches directly to your compound microscope and replaces the head so you can view live microscopic images on-screen at a crisp 1080p resolution on a 7" screen.
- Includes internal software that supports Image adjustment such as Hue, Saturation, and Brightness, as well as Calibration & Measurement.
- 40X to 1000X magnification range using high-quality, color-coded objective lenses and 10X eyepieces for four unique settings. Ideal for viewing various specimens such as live cells, bacteria, and more!
- Siedentopf binocular head with a comfortable 30° incline, 360° rotation, and interpupillary and dioptric adjustments to suit any user.
- Unique professional-grade microbe-resistant coating that is mold, mildew, and odor-resistant.
- Exciting new ergonomic design with taller frame and augmented base helps to reduce fatigue during long periods of use. Includes a newly designed handle to make carrying or moving the microscope easier.

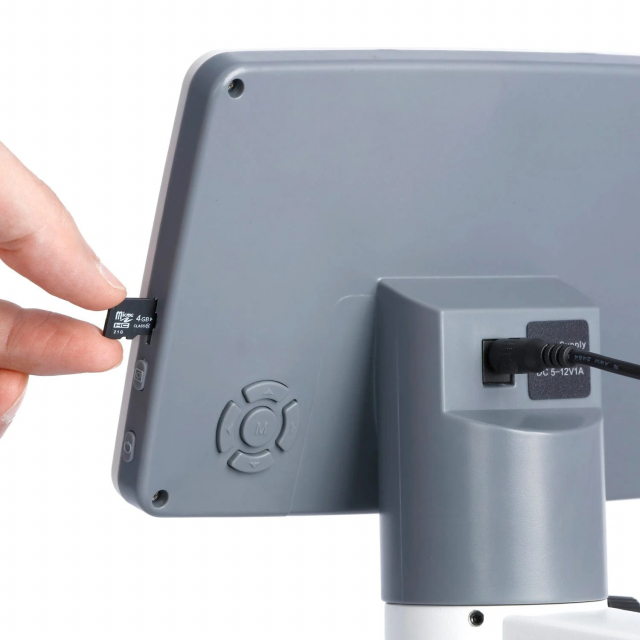

- Includes a 4gb SD card for storage, a premium microscope cable lock with key for ultimate security and a bonus starter kit that include blank slides, cover slips and pipettes.

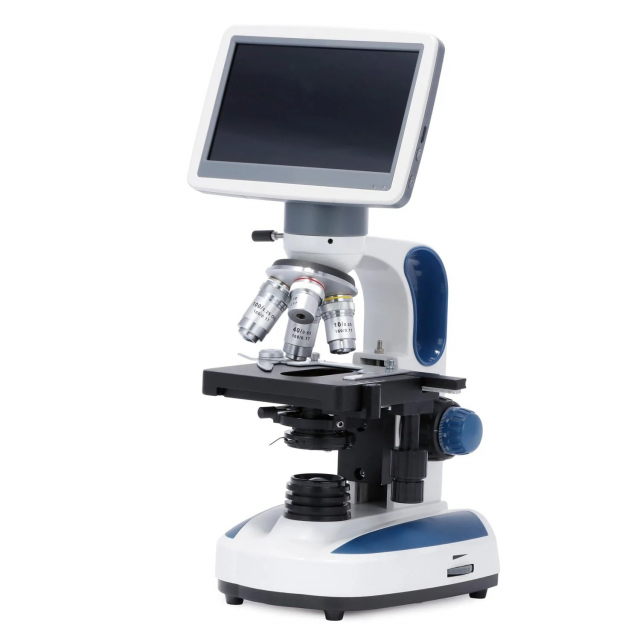

The B270 series delivers an advanced binocular compound microscope designed for most student or professional applications. With its protective antimicrobial coating, enhanced LED lighting, Siedentopf head adjustments, quadruple turret with four plan Objectives, and coaxial coarse and fine focus, this microscope is an ideal solution for any laboratory or classroom facility. This bundle also includes a digital microscope head that replaces the original binocular head and allows for viewing live microscopic images on a 7" IPS display.

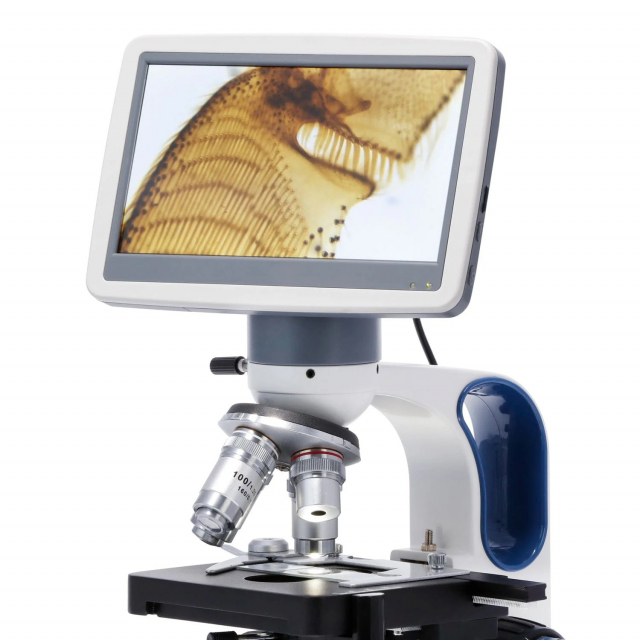

Digital Microscope Head

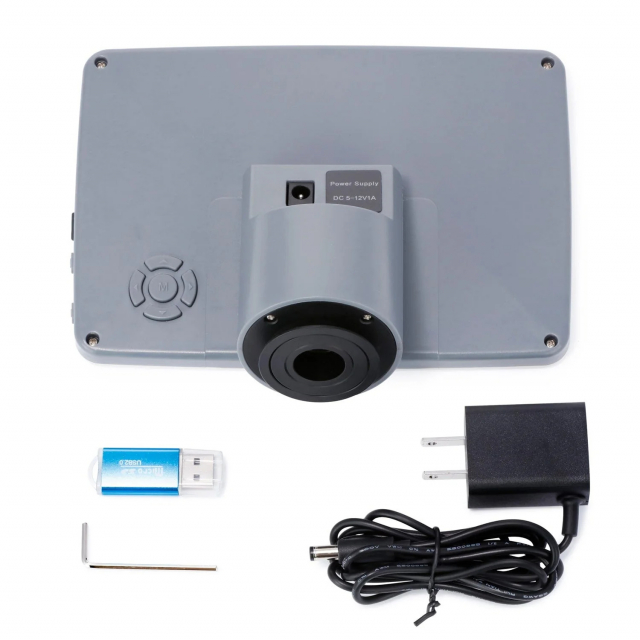

Adding a video screen to your microscope is easier than ever. Our DMH video system combines monitor and camera into a single device that attaches directly to your microscope. Now you can see microscopic details right on the screen. Compatible with most popular compound microscopes such as the B120 and B270. The DMH-18070 has a compact, lightweight design that can be used with any compound microscope with a minimum 42mm mount. The 7" screen offers essential brightness, contrast, and saturation controls. The built-in camera produces sharp images with a high framerate for super smooth, no-lag video. The DMH mounts to the microscope's turret in place of the default monocular, binocular, or trinocular head.
Microbe-Resistant Protection
Developed with a protective microbe-resistant coating, the B270 series microscope utilizes a revolutionary paint treatment that restricts the growth of microorganisms, including bacteria and mold, making it an ideal solution for any laboratory environment.
Viewing Head
The B270 series compound microscope is designed with a Siedentopf binocular head. To customize the microscope to your viewing comfort, the eyepiece spacing can be easily adjusted by simply swiveling the eyepieces. A diopter is available on the left ocular tube to compensate for asymmetry, and the ocular tubes are angled at 30° to comfortably accommodate a seated position without neck strain. Various eyepieces can be used to increase the overall optical magnification.
Optics
The objective turret provides instant access to 4 magnification levels to easily focus in on minute details from 40X to 1000X. This covers the magnifications needed for studying hair follicles, cells, and bacteria. These high-quality lenses are achromatically corrected to improve resolution and color accuracy.
Stage
The 2-layer mechanical stage provides smooth and precise movement to examine specimen slides. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimen slides is intuitive and precise for users at any skill level.
Transmitted Illumination
The LED sub-stage lighting provides cool, energy-efficient illumination. The light source is daylight balanced to produce natural colors for imaging. Our specially developed fly-eye lens evenly distributes the light at maximum brightness to improve contrast and resolution. Illumination is further enhanced by a centerable Abbe condenser, which can be realigned for any magnification to guarantee proper lighting.
Security
Protect your investment by using the premium microscope lock with a key. The B270 microscope incorporates the use of a microscope lock that acts as a theft deterrent, discouraging casual thieves.
For more information, please see
B270 User Manual and
DMH-18070 User Manual
