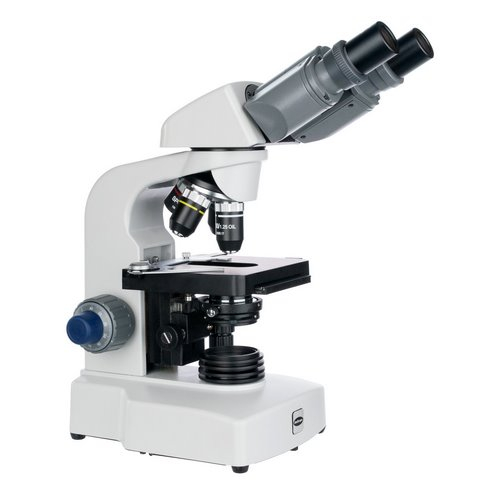

AmScope, B450C-SP, 40X-2500X LED Semi-Plan Compound Microscope with 3D 2-Layer Mechanical Stage
B450C-SP Includes Only:
- Siedentopf Binocular Microscope Head
- Microscope Body Frame with Double Layer Mechanical Stage and LED Illumination
- Four DIN Standard Semi-Plan Objectives, 4X, 10X, 40X(s) and 100X(s, oil)
- Pair of Widefield 10X Eyepieces
- Pair of Widefield 25X Eyepieces
- Dust Cover
- Sample Immersion Oil
- User's Manual Download
- Net weight: 11 lbs
- Shipping weight: 13 lbs
Features:

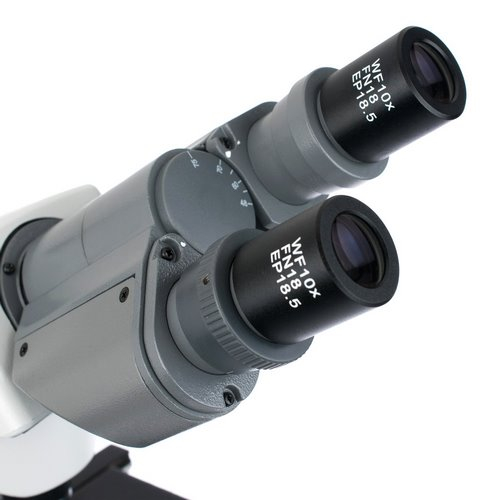

- 30 degree inclined 360 degree swiveling Siedentopf binocular head
- High quality precise optical glass elements
- Easy to attach a microscope camera or digital imager by replacing an eyepiece
- Six magnification settings, 40X, 100X, 250X, 400X, 1000X & 2500X
- Adjustable interpupillary distance
- Adjustable ocular diopter
- Variable intensity illumination
- Coaxial coarse and fine focus adjustment
- Focusing knobs are on both sides
- Stage upward moving lock protects objectives and slides

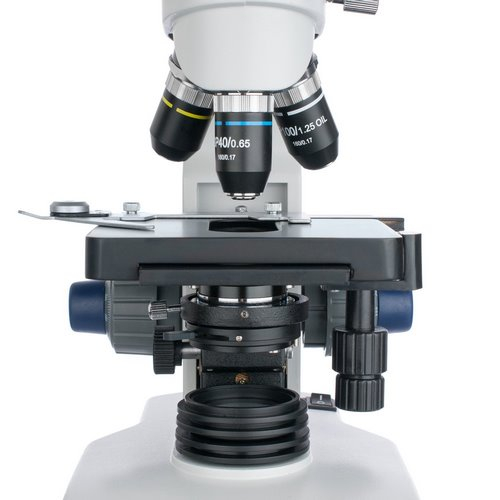

- Stain-resistant double layer mechanical stage
- NA 1.25 Abbe Condenser with iris diaphragm & filters
- Rack and pinion adjustment condenser
- Manufactured under ISO 9001 Quality Control Standard
- Eyepieces: widefield, WF10X and 25X
- Objectives: Semi-Plan DIN 4X, 10X, 40X(S), 100X(S, Oil)
- Head: 30 degree inclined 360 degree swiveling Siedentopf binocular
- Interpupillary distance: 2-1/8" - 3-1/8" (53mm - 77mm)
- Adjustable left ocular diopter
- Nosepiece: revolving quadruple
- Mechanical Stage: 3-D double layer
- - Size: 5-5/8" x 4.5" (142mm x 114mm)
- - Travel Range (X-Y): 3" x 2" (78mm x 53mm)
- Condenser: NA1.25 Abbe condenser with iris diaphragm
- Illumination: LED light, transmitted, intensity adjustable
- Focusing: coaxial coarse & fine knobs on both sides
- Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included
Binocular compound microscope is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for professionals, teachers and students including those in medical school or with a major in biology. It comes with a Siedentopf binocular head, double layer mechanical stage with course & fine focusing, and an LED illumination system. There are six magnification settings: 40X, 100X, 250X, 400X, 1000X & 2500X. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches.
