AmScope D300A 40X-1600X Three Observing Compound Microscope

Magnification: 40X-1600X
  • Brand AmScope
  • Part # D300A
  • Condition
    Brand New
AmScope, D300A
Additional image #1 for AmScope D300A

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Magnification:
Magnification: 40X-1600X

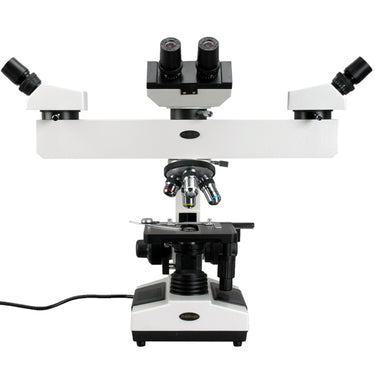

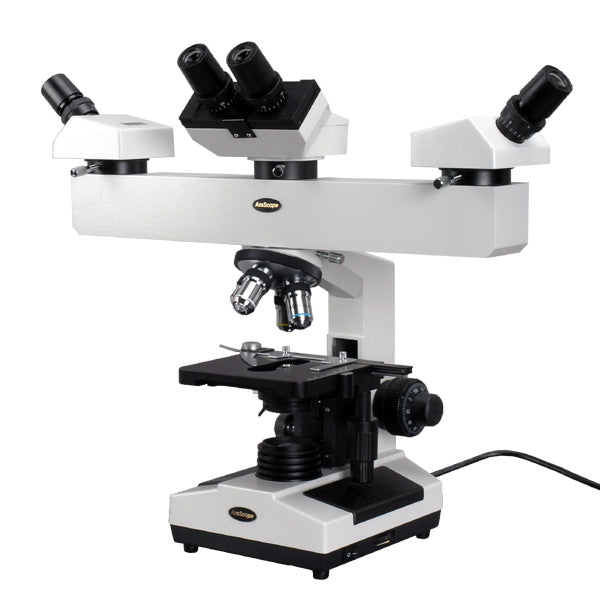

AmScope, D300A, 40X-1600X Three Observing Compound Microscope

Features

  • One Binocular and Two Monocular Heads for Three Persons to Observe at Same Time
  • Fully Coated Optical System with High Resolution Showing Sharp Image
  • Eight Magnification Settings: 40x, 64x, 100x, 160x, 400x, 640x, 1000x and 1600x
  • 45 Degree Inclined, 360 Degree Rotatable Monocular Heads and Compensation Free Binocular Head
  • Large Double Layer Mechanical Stage with Slide Clips
  • Coaxial Coarse and Fine Focusing
  • Upward Stage Stopper to Prevent Slide Breakage and Objective Damage
  • Abbe Condenser with Iris Diaphragm and Filter
  • Rack and Pinion Adjustment for Condenser
  • Built-In Halogen Illumination System with Adjustable Brightness

This is a specially designed three-observing microscope for teaching and/or training purposes. It comes with an binocular head and two monocular heads. It offers eight levels of magnifications: 40x, 64x, 100x, 160x, 400x, 640x, 1000x and 1600x magnifications. It is an ideal instrument for teaching and/or research purposes.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Reseller
Manufacturer Warranty

Technical Details

Reviews
Nosepiece Quadruple
Mechanical Tube Length 6-5/16" (160mm)
Heads one binocular anti-mould viewing head and two monocular heads inclined at 45 degree
Interpupillary Distance 2-3/16" - 3-0" (55 - 75mm)
Wide-Field Eyepiece WF10X & WF16X
Achromatic Objectives 4X, 10X, 40X (spring), 100X (spring, oil)
Stage Dimensions 5-1/2"x 5-1/2" (140x140mm)
Stage Traveling Range 2-3/4"x 1-3/4" (70x45mm)
Focusing Range 1-3/16" (30mm)
Division of Fine Focusing 0.0000787" (0.002mm)
Abbe Condenser NA=1.25 with rack and pinion focusing control
Illumination halogen lamp, 6V/20W
Power Supply 110V, CE certified (please email for availability of 220V version)
Notes

***

warningWARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details
Nosepiece Quadruple
Mechanical Tube Length 6-5/16" (160mm)
Heads one binocular anti-mould viewing head and two monocular heads inclined at 45 degree
Interpupillary Distance 2-3/16" - 3-0" (55 - 75mm)
Wide-Field Eyepiece WF10X & WF16X
Achromatic Objectives 4X, 10X, 40X (spring), 100X (spring, oil)
Stage Dimensions 5-1/2"x 5-1/2" (140x140mm)
Stage Traveling Range 2-3/4"x 1-3/4" (70x45mm)
Focusing Range 1-3/16" (30mm)
Division of Fine Focusing 0.0000787" (0.002mm)
Abbe Condenser NA=1.25 with rack and pinion focusing control
Illumination halogen lamp, 6V/20W
Power Supply 110V, CE certified (please email for availability of 220V version)
Note

Note: Please read description carefully. Do not base your order on the picture presented.
