Buy AmScope ED1402-S, EduBlue Binocular Portable Microscope w/Track Stand

info@PrimeLabMed.com

1-855-590-6919
1-908-282-3482 (Intl.)

Options and Related Products

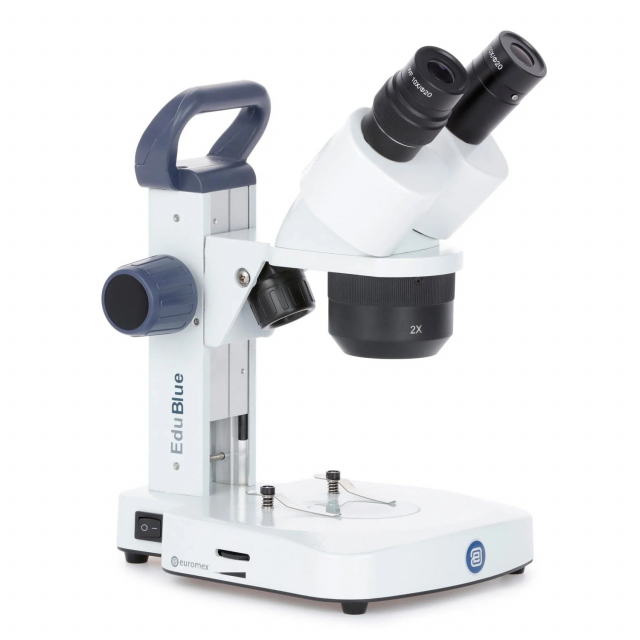

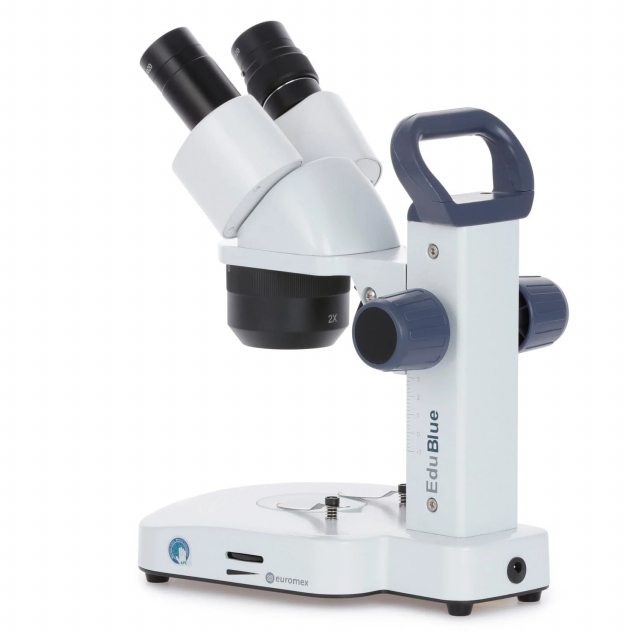

AmScope, ED1402-S, EduBlue 20X-40X Binocular Stereo Microscope with 2X/4X Objective Lenses on Dual Illumination Track Stand

ED1402-S Includes Only:

Supplied with an external 100-240 V mains adapter/charger and three rechargeable batteries for corded and cordless use, dust cover, Ø 60 mm transparent and black/white stage plates, eyecups, and user manual

Features:

Versatile binocular microscope solution ideal for educational purposes.
20X-40X magnifications for studying a broad range of specimens.
Powerful lighting with double 1W LED illumination, integrated 110-240V power supply and rechargeable batteries for cordless use.
Ergonomic rack & pinion stand.

For more information, please see Data Sheet

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Declaration Due to recent government-imposed tariffs, all pricing is subject to change based on the manufacturer updates.

Technical Details

Eyepiece(s)	Pair of secured WF10x/20 mm eyepieces supplied with eyecups
Head	Binocular head with 45° inclined tube Diopter adjustment of ± 5 on one side Interpupillary distance adjustable between 55 and 75 mm

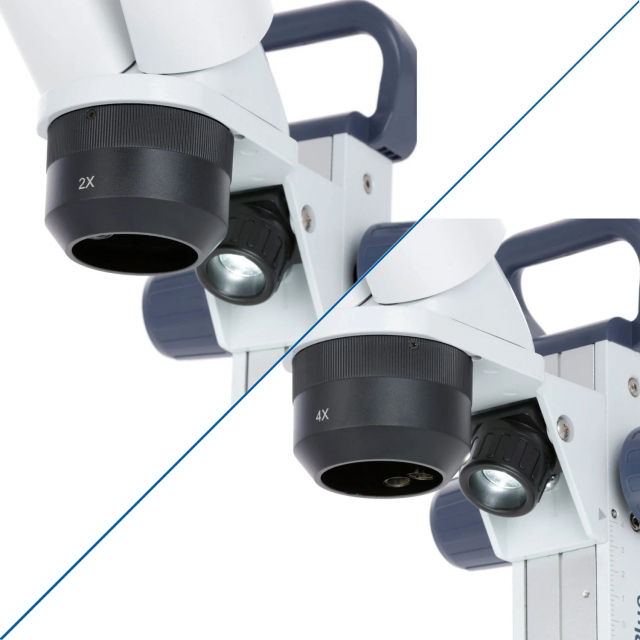

Dual Magnification Objectives	Revolving nosepiece with dual 2x/4x , which can provide standard magnifications of 20x and 40x Working distance 60 mm Field of view of 20/6.7 mm or 10/5 mm Magnifications can be altered using optional eyepieces All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Triple Magnification Objectives	Revolving nosepiece with triple 2x/4x, which can provide standard magnifications of 20x and 40x. Working distance 60 mm Field of views of 20/10/6.7 mm or 20/10/5mm Magnifications can be altered using optional eyepieces
Stand	The rack & pinion stands of the EduBlue are equipped with ergonomic designed flat bases, complete with 2 object clamps and ø 60 mm transparent and black/white stage plate The coarse adjustment is equipped with tension control The stands are alloy metal cast with hardened coating The rack & pinion stands of the EduBlue are equipped with graduations and focus point indicators for quick focusing
Illumination	The transmitted and incident 1 W LED illuminations can be used simultaneously and the light intensities can be adjusted separately 60 mm working distance

Notes

warning WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Eyepiece(s)	Pair of secured WF10x/20 mm eyepieces supplied with eyecups
Head	Binocular head with 45° inclined tube Diopter adjustment of ± 5 on one side Interpupillary distance adjustable between 55 and 75 mm
Dual Magnification Objectives	Revolving nosepiece with dual 2x/4x , which can provide standard magnifications of 20x and 40x Working distance 60 mm Field of view of 20/6.7 mm or 10/5 mm Magnifications can be altered using optional eyepieces All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Triple Magnification Objectives	Revolving nosepiece with triple 2x/4x, which can provide standard magnifications of 20x and 40x. Working distance 60 mm Field of views of 20/10/6.7 mm or 20/10/5mm Magnifications can be altered using optional eyepieces
Stand	The rack & pinion stands of the EduBlue are equipped with ergonomic designed flat bases, complete with 2 object clamps and ø 60 mm transparent and black/white stage plate The coarse adjustment is equipped with tension control The stands are alloy metal cast with hardened coating The rack & pinion stands of the EduBlue are equipped with graduations and focus point indicators for quick focusing
Illumination	The transmitted and incident 1 W LED illuminations can be used simultaneously and the light intensities can be adjusted separately 60 mm working distance

Note: Please read description carefully. Do not base your order on the picture presented.
