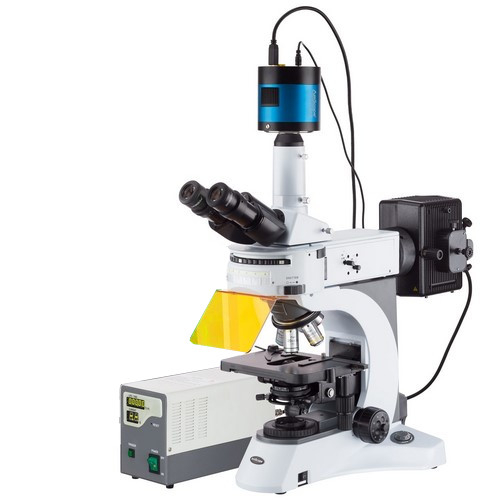

AmScope, FM820T-MF603, 40X-1000X Upright Fluorescence Microscope with Rotating Multi-filter Turret, Ultra-Sensitive CCD Camera
FM820T-MF603 Includes Only:
- One trinocular head
- One microscope body
- One photo port assembly
- Five objective lenses: 4X, 10X, 20X, 40X, 100X
- One pair 10X eyepieces
- One stage assembly
- One swing condenser
- One halogen illuminator assembly
- One episcopic illuminator
- One episcopic lamp housing
- One power supply for episcopic illuminator
- One eye shield
- Two AC power cords (US and Canada standard)
- One hex driver
- One dust cover
- One sample immersion oil

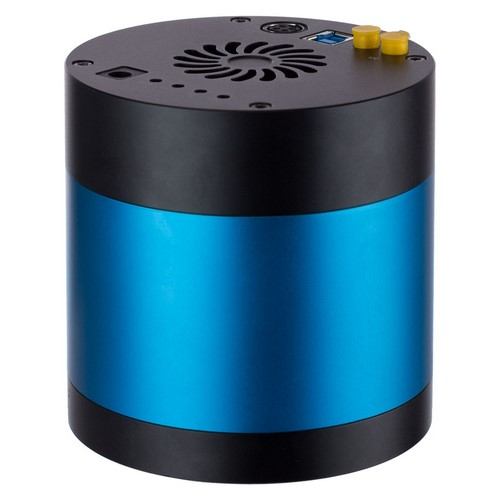

- One C-Mount TEC USB camera
- One power adapter
- One AC power cord (North America plug)
- One USB 3.0 cable
- One software CD
- One heavy-duty case

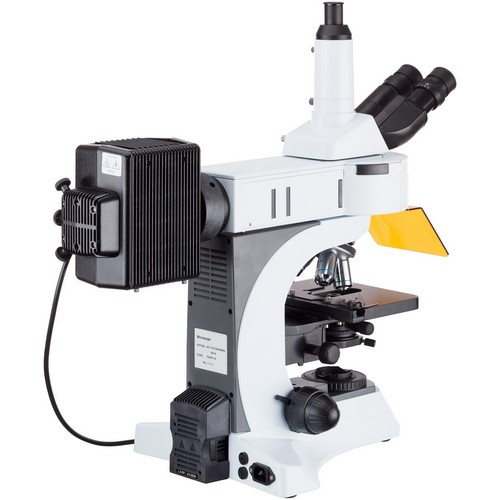

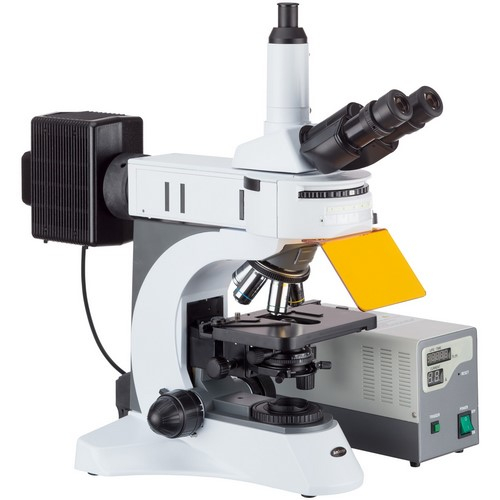

The FM820T is an upright fluorescence microscope with transmitted and reflected lighting, and a six-filter turret. The microscope is built around an infinity-Corrected optical system with a wide magnification range, and Koehler diascopic and episcopic illumination. The powerful 100W, wide-spectrum, mercury-vapor episcopic illuminator uses a rotary filter-selector which can house up to six fluorescence filter-blocks., already included are ultraviolet, violet, blue, and green excitation blocks. The sub-stage illuminator uses a 30W halogen lamp with field-lens and diaphragm for even, high-Contrast lighting.

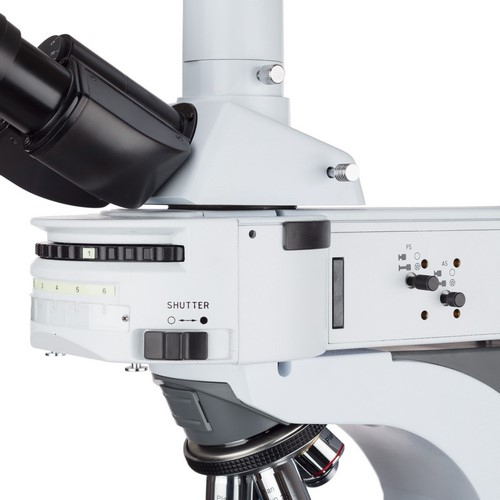

The microscope's head is designed for precision and comfort. The super-widefield optics provide a larger field-of-view so you can see more specimen at any magnification. Compensation-free Siedentopf interpupillary adjustment allows any user to properly align the oculars without readjusting focus. for users with astigmatism or asymmetrical vision, the left ocular can be adjusted to fine-tune focus. The photo port is equipped with a 23mm tube for attaching cameras with compensating lenses, and is height-adjustable to match focus with the eyepieces. The port is compatible With YX series C-Mount adapters which can attach directly to C-Mount cameras without a compensating lens - ideal for 1" format sensors. The head is set to a 30 incline which is ideal for viewing from a standing position, and it can be rotated 360.

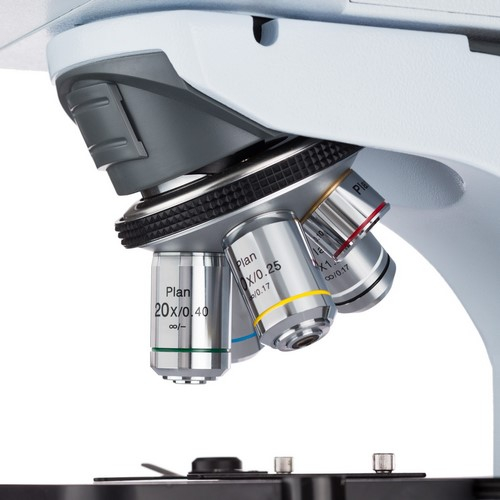

The infinity-Corrected optical system eliminates optical errors when using filters and other in-line components, ensuring highly precise images. The quintuple objective turret provides instant access to 5 magnification levels. This allows you to efficiently move through magnifications from 40X to 1000X. The turret's reversed orientation provides more working room above the stage. These high-quality lenses are achromatically corrected to improve resolution and color accuracy, with planatic flat-field correction to provide edge-to-edge sharpness.

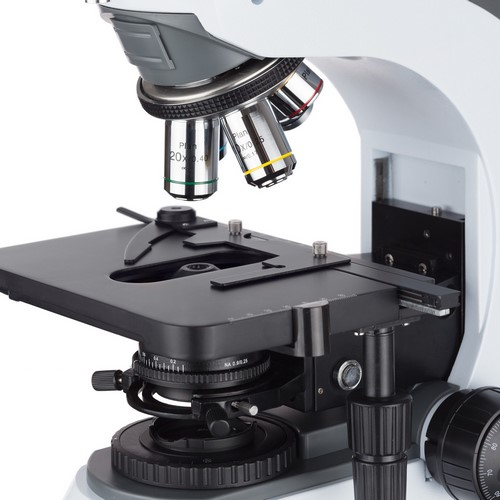

The 2-layer mechanical stage provides smooth and precise movement for examination of specimen slides, with a large translation range for viewing larger samples. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimen slides is intuitive and precise for users at any skill level. Symmetrical focus controls are coaxially mounted for fast, intuitive focusing. A height limit can be set to prevent contact damage, as well as presetting optimal focus distance.
Koehler Transmitted Illumination

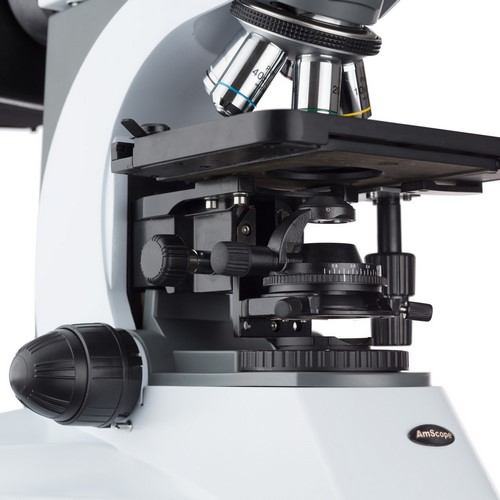

Built on Koehler illumination principals, the sub-stage lighting provides evenly-distributed light for optimal contrast. The rear-Mounted 30W halogen light-source provides 100 CRI illumination with ample brightness for contrast-enhancement methods like darkfield. The lower color temperature of the halogen light-source causes less eyestrain compared to high-Kelvin LED. The light condenser uses a swing mechanism for optimized lighting at both high and low magnifications, with a NA0.25 setting for full coverage at extremely low magnifications. An iris diaphragm allows you to adjust the aperture to optimize contrast and depth-of-field. The condenser holder uses rack-and-pinion height adjustment for precision control, and is centerable for proper alignment. The condenser is top-Mounted for easier replacement when working with additional condensers. The illuminator's field lens provides an iris diaphragm to control light-spread, optimizing contrast and definition in specimen features.
The Epi-Fluorescence illumination system adds incredible versatility to the microscope. The ability to isolate fluorescing compounds allows you to target individual proteins and other nuances. This microscope is equipped with a six-position filter turret for easy transitions. Four filter blocks are already mounted (ultraviolet, violet, blue, and green) for popular labeling agents and natural fluorophores. The illuminator uses a high-power mercury arc-lamp for wide-spectrum excitation.
