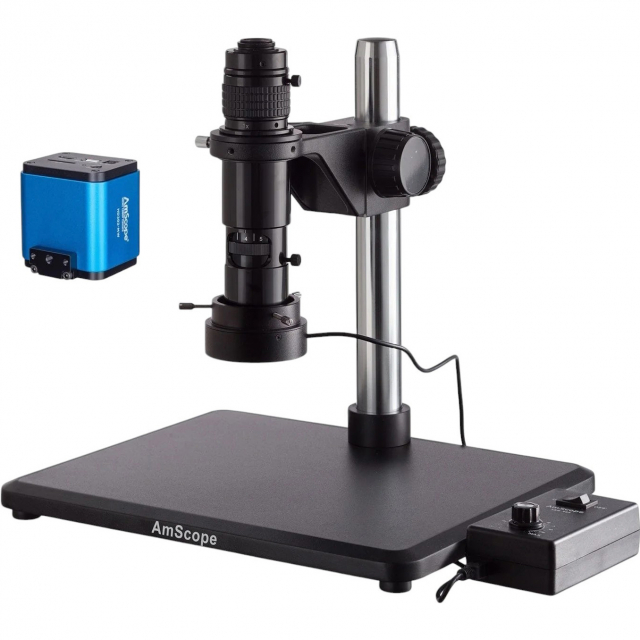

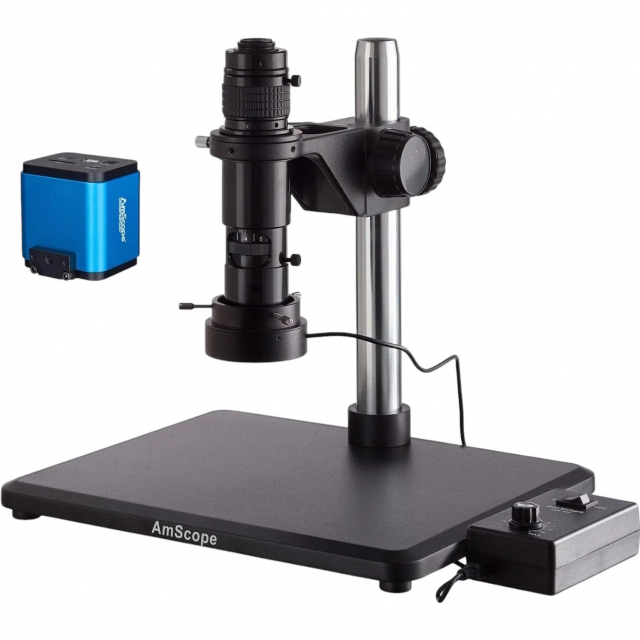

AmScope, H1000-96S-HD2GS, Zoom Inspection 0.83X-10X Magnification Monocular Stereo Microscope with 1080P HDMI 2MP C-Mount Camera
H1000-96S-HD2GS Includes Only:
- One monocular zoom microscope
- One focusing block
- One base plate for table-stand
- One column for table-stand
- One hex wrench
- Three screws and washers
- One dust cover
- One 96-LED ring-light
- One power control unit for ring-light
- One power cord
- One HD Digital Camera
- One USB Mouse
- One USB WiFi Antenna
- One HDMI Cable
- One SD Card
- One Power Adapter
- One Software CD
Features:
- 0.83X-10X extra-wide zoom range
- Height-adjustable C-mount interface with large aperture to support image sensors up to 1" format
- Monocular C-mount microscope with extremely sharp 0.7X-5.0X zoom objective
- Includes a 96-LED ring light for bright, even illumination
- Integrated 0.4X reduction element ideal for cameras with 1/2" format sensors
- Metal framework with solid base plate
- Long working distance
- Sharp images over a super wide field view
- Includes a 1080p/2MP multi-function, ultra-sensitive camera using global-shutter technology for superior performance. Built-in recording, live streaming over HDMI, and wi-fi connectivity for working with computers with multi-user ability
The H1000 is designed specifically for photomicrography, providing extra-wide 0.83X-10X zoom magnification and a C-mount interface for professional microscope cameras. While stereo microscopes are the preferred choice for low-magnification work like micro-soldering and dissection, the stereo lens design is not optimal for producing accurate photos or videos due to off-axis, angular distortion, and keystone. This single-lens microscope provides the same magnification range or better and without distortion.
The 0.83X-10X zoom objective lens produces sharp images over a large range of magnifications ideal for QC inspection and repair. The C-mount camera interface is height-adjustable with an easy-to-adjust rotator, allowing precise parfocal adjustments to keep the lens in focus throughout the zoom range. The microscope has an enlarged aperture and a 1X no-magnification interface to allow the use of image sensors up to 1" format.

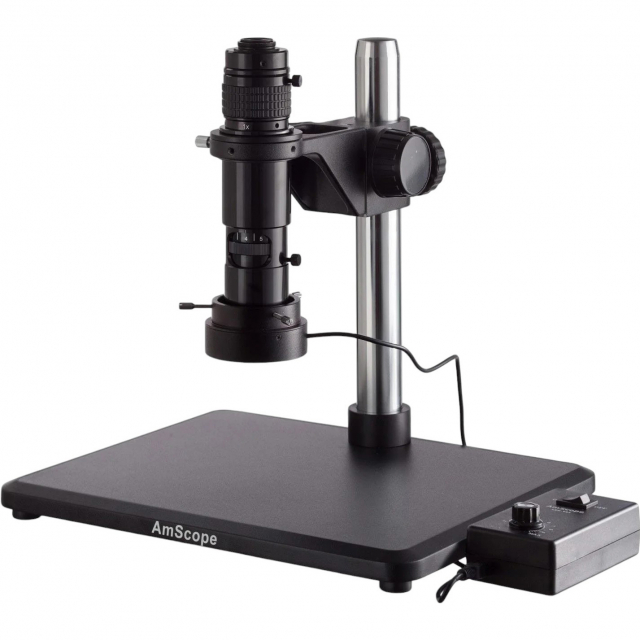

This package includes a table stand with an 11" pillar and a focusing block. The focusing block uses a model-specific collar for mounting the lens, and symmetrical, tension-adjustable coarse focus knobs. The large base provides ample working area and stability.
This model includes a 96-LED ring light to provide bright, even lighting. The light intensity is controlled by a power module with a simple, single-knob design that can cover a large range of brightness.
This microscope comes with a next-generation live-view imaging system. The hyper-sensitive CMOS sensor captures images with better efficiency, and much-improved speed compared to CCD sensors. The camera uses global-shutter technology which produces smoother motion in video. The camera uses a standard C-mount interface for maximum compatibility with various microscopy-systems. It can be used as a stand-alone recorder when used with an HDMI monitor or television, or live-streamed to a PC via wi-fi for image-capture and video-recording.
The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.
