| Optical | Color corrected infinity optical system (CSIS) |
| Head | Gemel type of trinocular head, 45 degree inclined |
| Interpupillary | 2"-3" (50-76mm) |
| Eyepiece | PL10X/22mm high-eye point PLAN eyepieces |

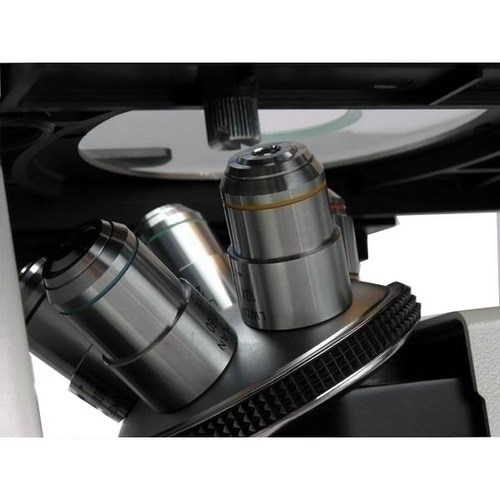

| Nosepiece | Reversed quintuple nosepiece |
| Objective | - Infinite long work distance PLAN achromatic objective: LWD PL4X,10X,20X, 40X, 60X
- Infinite long work distance PLAN phase-contrast objective: LWD PH10X,20X,40X
|
| Focus System | - Fine and coarse coaxial focusing, torque adjustment for coarse
- Working distance of every circle: coarse focus: 38mm, fine focus: 0.2mm, precision 0.002mm
- Total working distance: upward 6.5mm & downward 2.5mm from focus position (1.5mm above stage)
|
Stage | - Dimension: 6-1/4"(W)x9-7/8"(L)(160x250mm); ready to be extended for extra space by the optional stage extension boards
- Dimemsion of stage extension board: 2-3/4"(W)x7"(L)(70x180mm)
| Mechanical Stage | - Traveling range: 4-3/4"(X-direction) x 3-1/8"(Y-direction) (120x80mm)
- Low-position coaxial focusing
- Petri dish holder
| | Transmitted Illumination | - 90-240V wide voltage power supply, 6V/30W Halogen bulb; pre-centered, adjustable brightness
- Super large working distance condenser NA=0.3, WD=72mm
|
| Reflected fluorescence illumination | B,G filter blocks, with centering view field diaphragm and sliding filter preventing board |
| Mercury light house | Centering mercury bulb 100W, with adjusting reflected lens |
| Fluorescence power supply | - 100-240V input AC power supply
- Light house dimensions: 9-1/4"(L)x5-1/4"(W)x6-1/8"(H) (236x134x156mm)
|
|
| Operating Condition | - Indoor Use: The highest height above sea level: 2000 M
- Temperature: 5 - 40 degree(C) (41 - 109 degree(F))
- Humidity: 80% for 31 degree (C) (88 degree(F))
- 70% for 34 degree(C) (93 degree(F))
- 60% for 37 degree(C) (99 degree(F))
- 50% for 40 degree(C) (104 degree(F))
- Pollution: 2 (See IEC664)
|

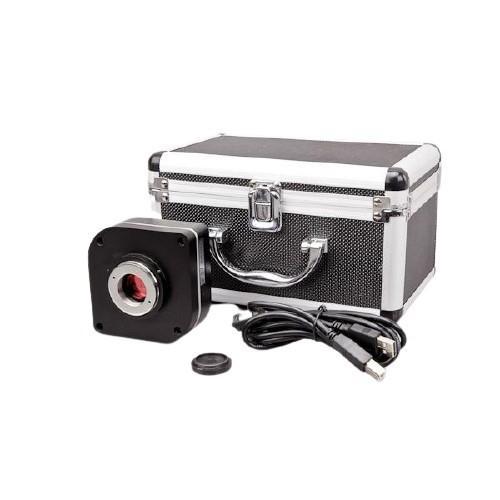

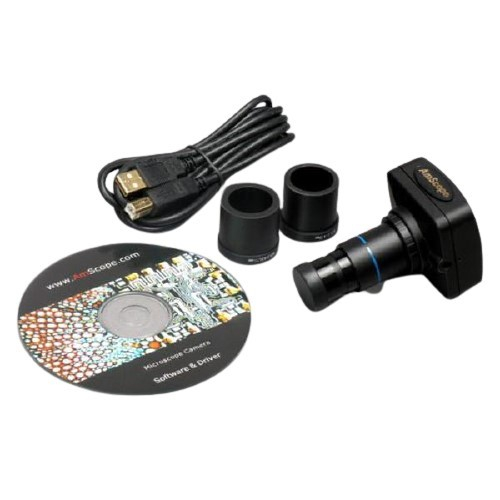

| Sensor | Aptina MT9T001 |
| Sensor Type | CMOS |
| Sensor Size | 6.55x4.92mm |
| Pixel Size | 3.2 |
| Resolution | 3.1MP |
| Frame Rate | 8 at2048x1536, 22 at1024x768, 43 at680x510 |
| Sensitivity | 1.0V/lux-sec |
| Compatibility | Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux |
| OS Requirements | Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+ |
| Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port |
|
| Compatibility | PC & Mac |
| Field View | Extreme Widefield |
| Head Style | Microscopes-Trinocular |
| Illumination Style | Incident & Transmitted |
| Light Type | Halogen, Fluorescent |
| Magnifying Power | Microscope-40X to 640X |
| Manufacturer | AmScope |
| Microscope Application | Industrial Inspection, Clinic, Veterinary, Laboratory |
| Microscope Camera Pixel | 3MP |
| Microscope Category | Special |
| Microscope Color | White |
| Microscope Condenser Design | Kohler |
| Microscope Condenser Type | Brightfield, Phase Contrast |
| Microscope Eyepiece Power | 10X |
| Microscope Eyepiece Size | 30mm |
| Microscope Field View | Extreme Widefield |
| Microscope Head Style | Trinocular |
| Microscope Light Power | 30W, 100W |
| Microscope Light Shape | Built-in |
| Microscope Light Type | Halogen, Fluorescent |
| Microscope Magnifying Power | 40X to 640X |
| Microscope Num Of Bulbs | 2 |
| Microscope Objective Power | 4X, 10X, 20X, 40X, 60X |
| Microscope Objective Size | 20mm |
| Microscope Optics | Infinity, Achromatic, Plan |
| Microscope Power Supply | 110V, 220V |
| Microscope Reduction Lens | 0.5X |
| Microscope Sensor | CMOS |
| Microscope Specialty | Phase Contrast, EPI-Fluorescence, Inverted |
| Microscope Stage Div | 1.00mm |
| Pixel | 3.0MP |
