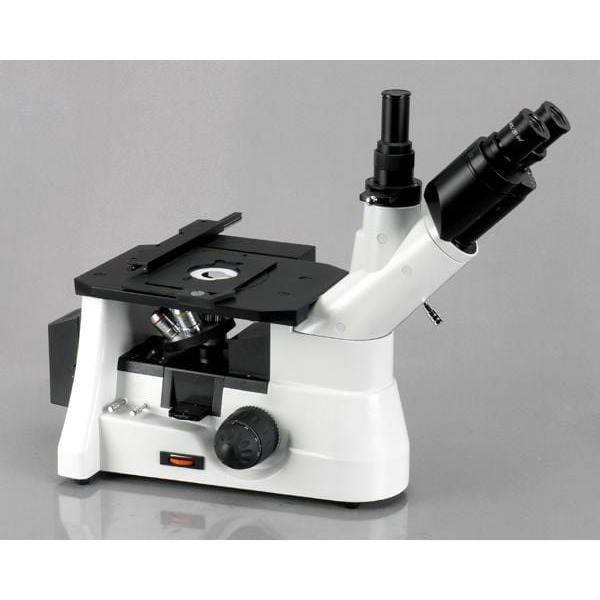

AmScope, ME1400T-INF, ME1400 Series Inverted Plan Optics Infinity-Corrected Polarizing Metallurgical Trinocular Compound Microscope 50X-500X Magnification with
ME1400T-INF Includes Only:
- One trinocular inverted microscope
- Four metallurgical objectives: 5X, 10X, 20X, 50X
- One pair 10X eyepieces
- One super widefield 10X eyepiece with reticle
- One 30W halogen bulb
- One dust cover
- color filters
- One power cord (North America standard)
Key Features:
- 50X to 500X magnification range using four metallurgical objective lenses and 10X eyepieces for four unique settings.
- An inverted microscope with simple polarization for manufacturing, QC, and materials analysis
- The infinity-corrected optical system reduces distortion and improves color accuracy.
- Use a combination of brightfield and simple polarization to bring out complex details such as stress in metal and other materials.
- The inverted format supports heavier and irregular samples like cut ore and metal fragments.

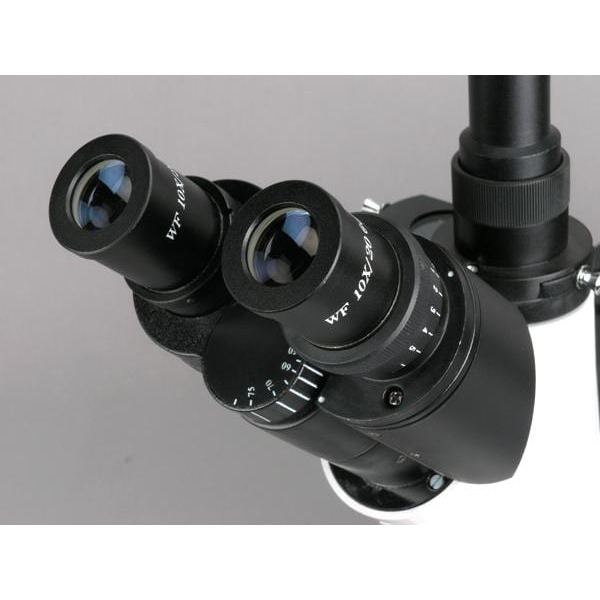

- The trinocular head provides a dedicated photo port for adding a camera for recording photos and videos.
Features:
- A professional infinity polarizing metallurgical inverted microscope!
- 30W wide band (85V-230V) EPI-Kohler illumination with variable brightness
- Polarizer & Analyzer included
- Super widefield eyepiece with reticle
- Fully coated optical system with high resolution
- Sharp clear metallurgical microscopy images
- Upright photo port for photographic/video capability
- Diopter adjustment on ocular

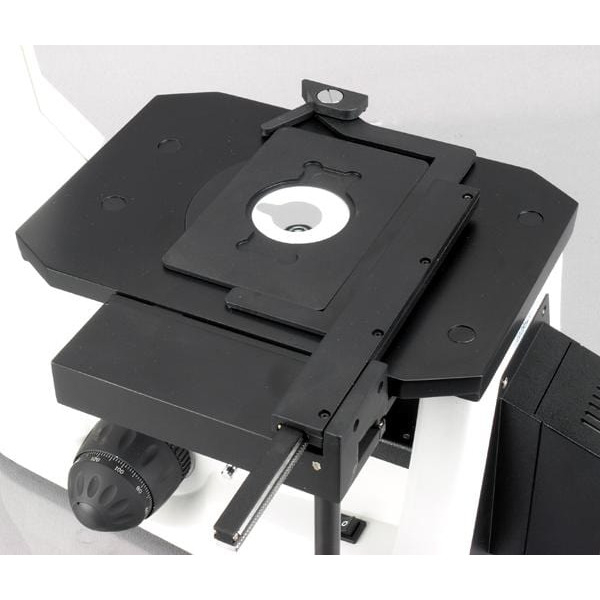

- Extra large 3-D double layer mechanical stage with stain resistant finish
- Low position coaxial stage movement control knobs
- Coaxial coarse & fine focusing with CA knob tension control
- Top light house with filters
- Dual side mounted focusing controls
- Full optical glass elements
- Precise ground glass lenses
- All metal mechanical components
- Adjustable interpupillary distance
- Rugged cast alloy frame and stand with stain resistant enamel finish
Specification:
This professional trinocular inverted polarizing metallurgical microscope comes with infinity metallurgical objectives and Epi-Kohler illumination. It offers a range of magnifications designed to observe, identify and analyze the structures of metals and alloys. It comes with super widefield infinity optics, polarizer & Analyzer, quintuple nosepiece, 30W wide band voltage (85V-230V) EPI-Kohler illumination, and double-layer mechanical stage with coaxial coarse & fine focusing. This microscope is great for studying metallography, heat treatment and metal physics. It is widely used in the inspection of crystal structures, integrated circuits, semiconductor chips, micro-electronics, and etc.
Using four infinity-corrected plan-achromatic objective lenses from 5X to 50X, a broad range of magnifications can be covered. These highly corrected lenses produce sharp, flat images from 50X to 500X when used with the included 10X eyepieces.
