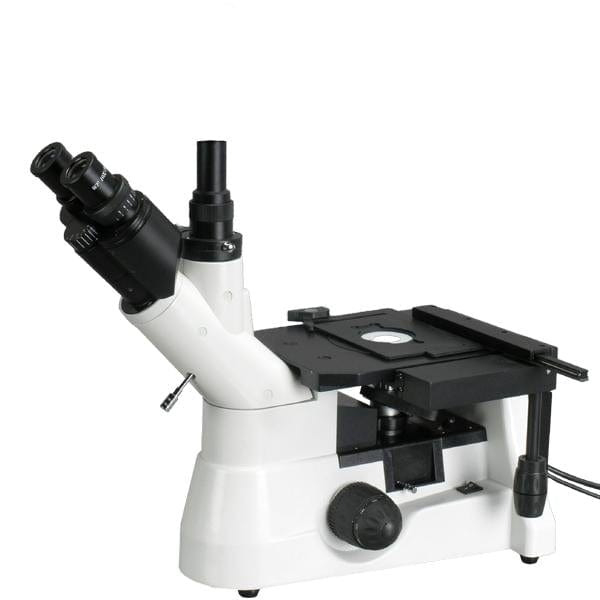

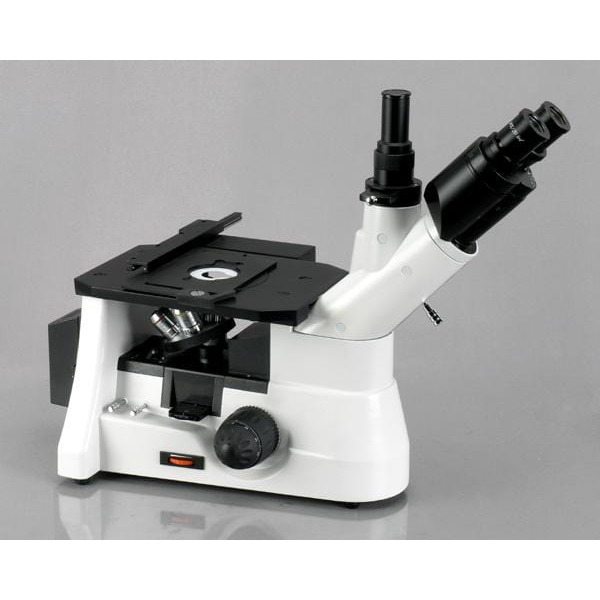

AmScope, ME1400TB-INF, ME1400 Series Inverted Plan Optics Infinity-Corrected Polarizing Metallurgical Trinocular Compound Microscope 50X-1000X Magnification with
ME1400TB-INF Includes Only:
- One trinocular inverted microscope
- Four metallurgical objectives: 5X, 10X, 20X, 50X
- One pair 10X eyepieces
- One pair 20X eyepieces
- One super widefield 10X eyepiece with reticle
- One 30W halogen bulb
- One dust cover
- color filters
- One power cord (North America standard)
Key Features:
- 50X to 1000X magnification using four metallurgical objective lenses and 10X and 20X eyepieces for six unique settings.
- An inverted microscope with simple polarization for manufacturing, QC, and materials analysis
- The infinity-corrected optical system reduces distortion and improves color accuracy.
- Use a combination of brightfield and simple polarization to bring out complex details such as stress in metal and other materials.
- The inverted format supports heavier and irregular samples like cut ore and metal fragments.
- The trinocular head provides a dedicated photo port for adding a camera for recording photos and videos.
Features:
- A professional infinity polarizing metallurgical inverted microscope!
- 30W wide band (85V-230V) EPI-Kohler illumination with variable brightness
- Polarizer & Analyzer included
- Super widefield eyepiece with reticle
- Fully coated optical system with high resolution
- Sharp clear metallurgical microscopy images
- Upright photo port for photographic/video capability

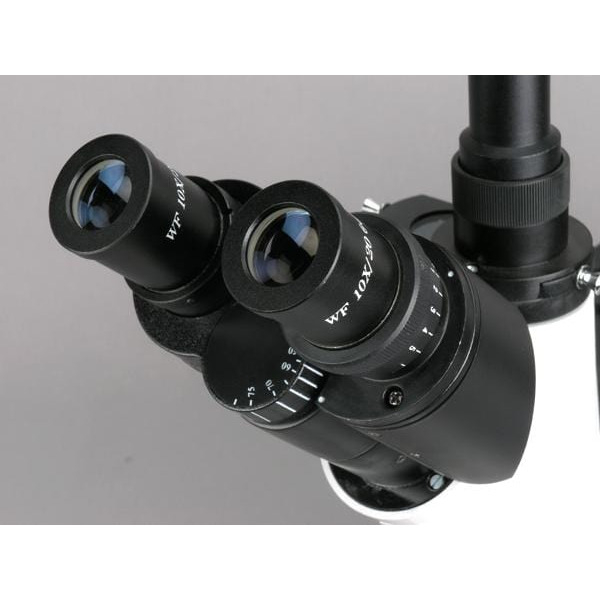

- Diopter adjustment on ocular

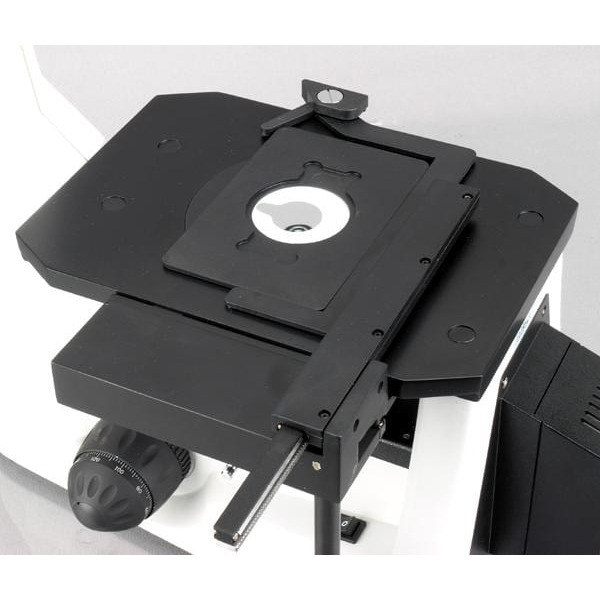

- Extra large 3-D double layer mechanical stage with stain resistant finish
- Low position coaxial stage movement control knobs
- Coaxial coarse & fine focusing with CA knob tension control
- Top light house with filters
- Dual side mounted focusing controls
- Full optical glass elements
- Precise ground glass lenses
- All metal mechanical components
- Adjustable interpupillary distance
- Rugged cast alloy frame and stand with stain resistant enamel finish
Specification:
This professional trinocular inverted polarizing metallurgical microscope comes with infinity metallurgical objectives and Epi-Kohler illumination. It offers a range of magnifications designed to observe, identify and analyze the structures of metals and alloys. It comes with super widefield infinity optics, polarizer & Analyzer, quintuple nosepiece, 30W wide band voltage (85V-230V) EPI-Kohler illumination, and double-layer mechanical stage with coaxial coarse & fine focusing. This microscope is great for studying metallography, heat treatment and metal physics. It is widely used in the inspection of crystal structures, integrated circuits, semiconductor chips, micro-electronics, and etc.
Using four infinity-corrected plan-achromatic objective lenses from 5X to 50X, a broad range of magnifications can be covered. These highly corrected lenses produce sharp, flat images from 50X to 1000X when used with the included 10X eyepieces. Additional 20X eyepieces are included to extend the magnification range up to 1000X, with six unique settings.
