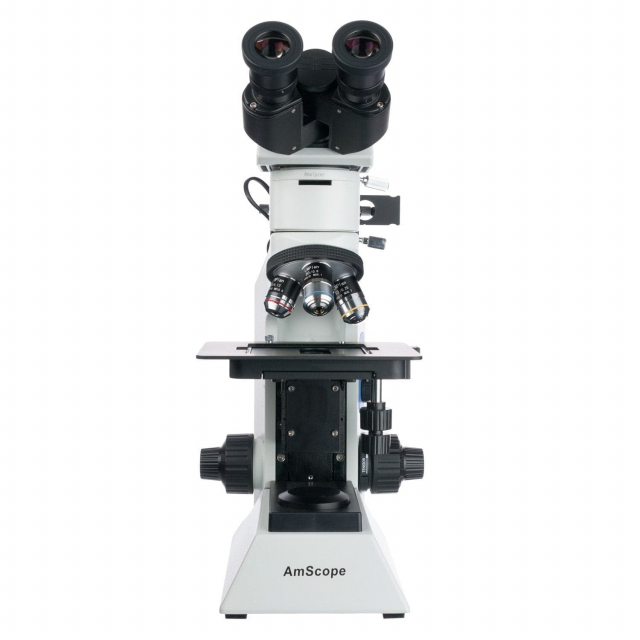

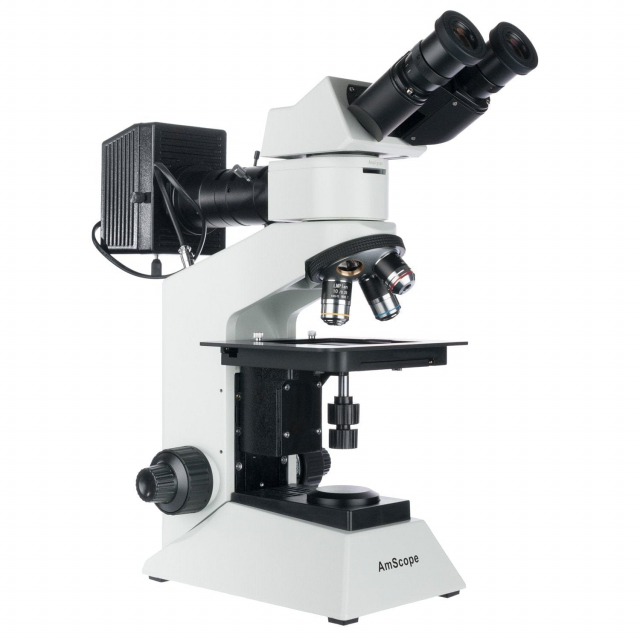

AmScope, ME580BA-PZ-M, ME580 Series Metallurgical Uprigh Binocular Compound Microscope 50X-800X Magnification with Polarized Ligh and 1.3MP USB 2.0 C-Mount Camera

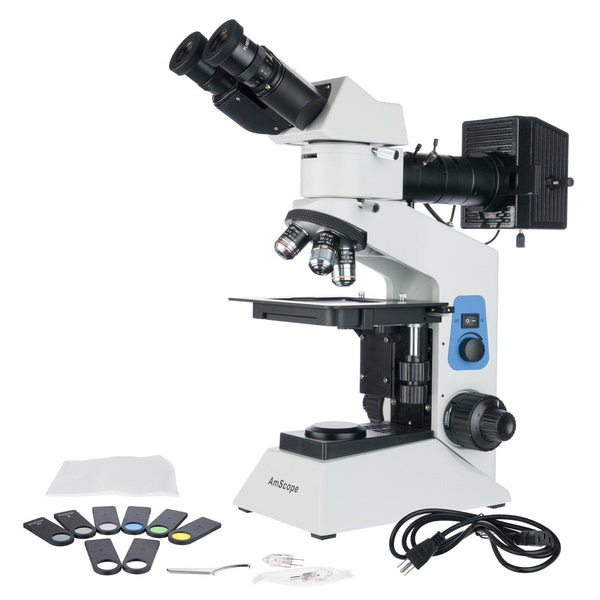

ME580BA-PZ-M Includes Only:
- One microscope with binocular Siedentopf head
- Three LM Plan achromatic objectives (5X, 10X, 50X)
- One pair 10X eyepieces
- One pair 16X eyepieces
- One Halogen episcopic illuminator module
- One 6V 30W G4 halogen bulb
- Six filters (polarizer, analyzer, green, blue, yellow, diffuser)
- One AC cord
- One dust cover
- One tension wrench
- One C-mount USB camera
- One 0.37X reduction lens
- Two sizing adapters
- One USB Type B to USB type A cable
- One software CD
Key Features:
- 50X to 800X magnification using 10X and 16X eyepieces for six distinct settings.
- A compact multi-purpose microscope with reflected illumination and simple polarization for observation of metals, plastics, and other materials.
- Use a combination of reflected lighting and simple polarization to bring out complex details such as stress in metal and other materials.
- Monitor and capture photos and videos with the included 1.3MP USB 2.0 camera. Professional microscopy software for Windows, Mac, and Linux provide tools for image processing, measuring, and more.
Features:
- An advanced metallurgical microscopy system with reflected illumination
- Polarized lighting for structural analysis
- Includes a range of filters for lighting manipulation

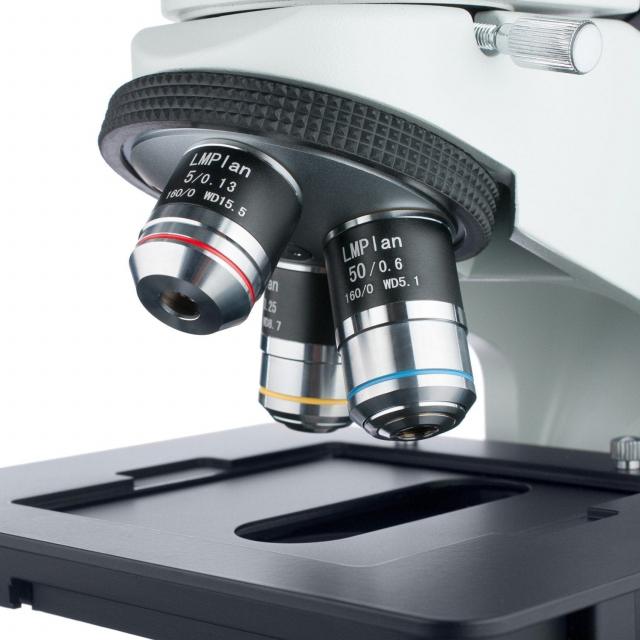

- 5X, 10X, and 50X long-working-distance metallurgy objectives
- Co-axial coarse & fine focusing system

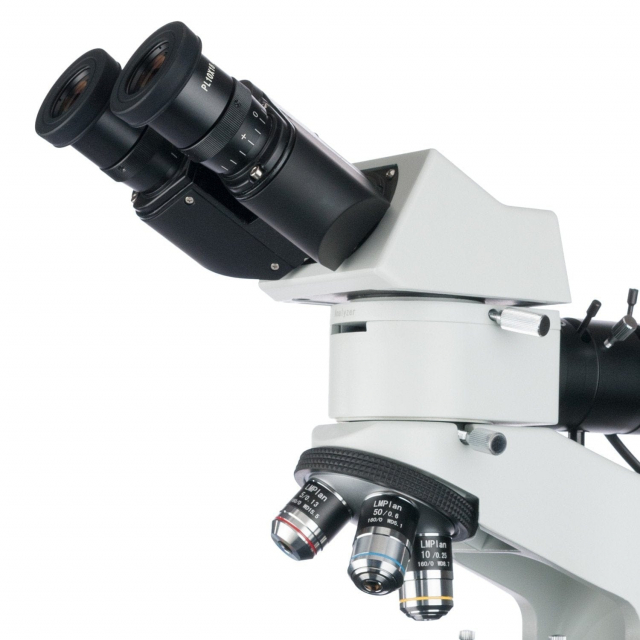

- 30 degree inclined 360 degree rotatable binocular head
- Coaxial coarse and fine focusing
- Dual focusing control knobs
- Focusing tension control mechanism
- Adjustable interpupillary distance
- Adjustable diopters on both eye tubes
- Solid metal frame construction with stain resistant enamel finish

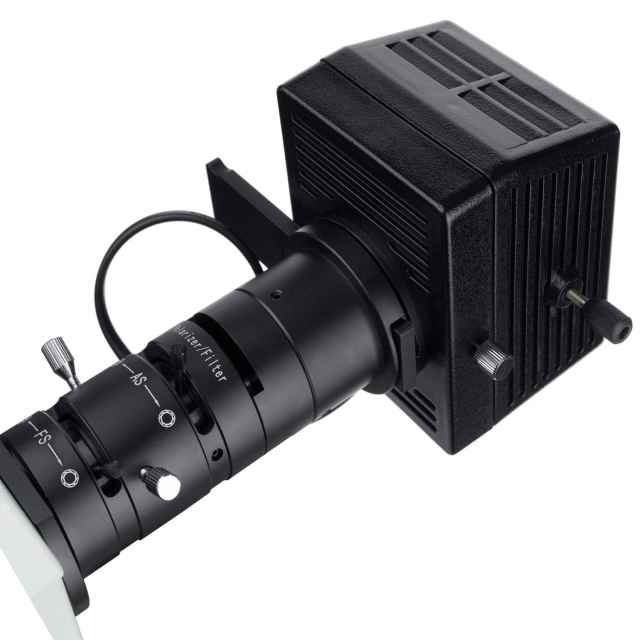

This is a feature-packed, economical metallurgical microscope with an upright design, and 30W polarized-light reflected illumination. The episcopic illuminator includes removable polarizer and analyzer, as well as adjustable field and aperture diaphragms. The plan-achromatic optical system offers sharp, flat-field images with excellent color-correction. The Siedentopf head with dual diopters and high-eyepoint eyepieces provide a comfortable and adjustable viewing platform.

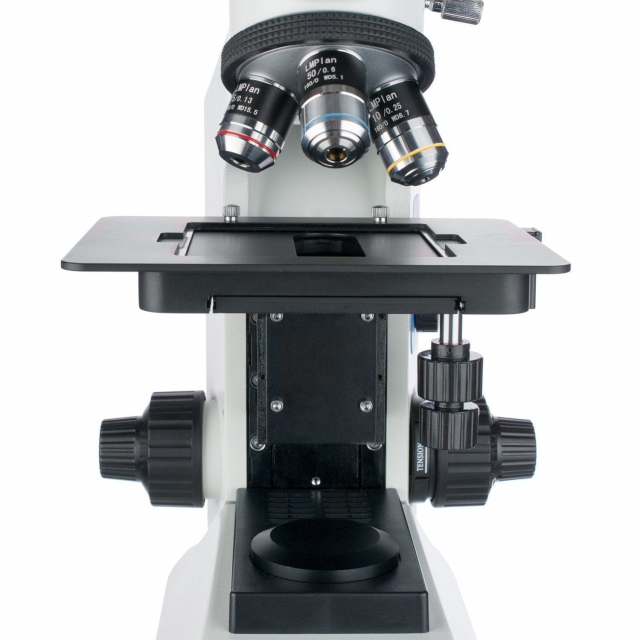

Change magnifications quickly using the objective turret without significant refocusing thanks to the parfocal design. Using the included 10X and 16X eyepieces, the magnification range spans from 50X to 800X with six unique settings. The lenses are achromatically corrected for improved resolution, and flat-field corrected to ensure edge-to-edge sharpness.
Digital Imaging
Monitor and capture photos and videos with the included 1.3MP USB2.0 camera. The C-mount camera is specially designed for use with microscopes, allowing you to watch live images, and to record photos or videos on your computer. This ability to view microscopic images on your computer reduces eye-strain, and allows groups of people to view images at the same time. A 0.37X reduction lens is included for use with 23mm-30.5mm ports to capture more of the microscope's field-of-view. AmScope professional software for Windows provides a wide assortment of capture and photo-editing functions including color correction, time-lapse capture, image stitching, and a full complement of measuring tools. A lite version of AmScope software is comes for Mac and Linux with essential functionality for capturing photos and videos.
