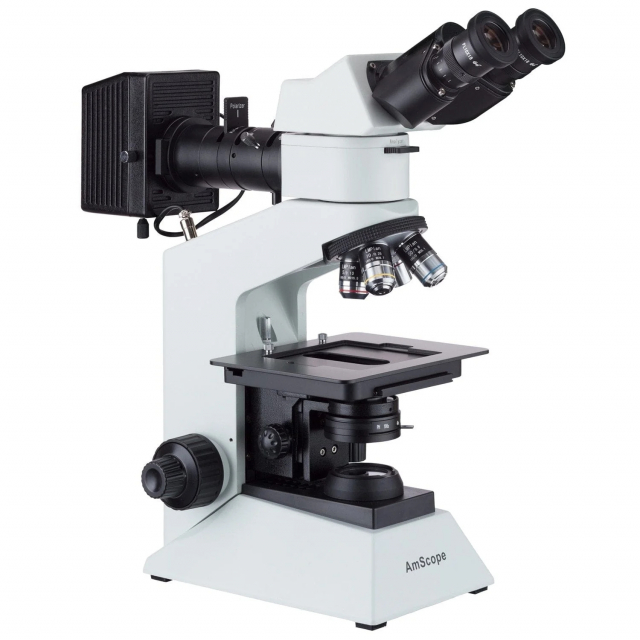

AmScope, ME580BB-PZ-2L, 40X-1000X Binocular Dual-Illumination Upright Metallurgical Microscope
ME580BB-PZ-2L Includes Only:
- One microscope with binocular Siedentopf head
- Three LM Plan achromatic objectives (5X, 10X, 50X)
- Three achromatic objectives (4X, 10X, 40X)
- One pair of 10X eyepieces
- One pair of 20X eyepieces
- One sub-stage condenser
- One Halogen episcopic illuminator module
- One 6V 30W G4 halogen bulb
- One 6V 20W G4 halogen bulb
- Six filters (polarizer, analyzer, green, blue, yellow, diffuser)
- One AC cord
- One pack of lens tissues
- One dust cover
- One tension wrench
Features:
- 40X to 1000X magnification using 10X and 20X eyepieces and a combination of metallurgical and biological objective lenses for nine distinct settings.
- A compact multi-purpose microscope with dual Illumination and simple polarization for observation of metals, plastics, and biological samples.
- Use a combination of reflected light and simple polarization to bring out complex details such as stress in metal and other materials.
- Transmitted Illumination can be used with metallurgical and biological objective lenses to view translucent materials and biological specimen slides
- An advanced metallurgical microscopy system with incident and transmitted Illumination
- Polarized lighting for structural analysis
- Includes a range of filters for lighting manipulation

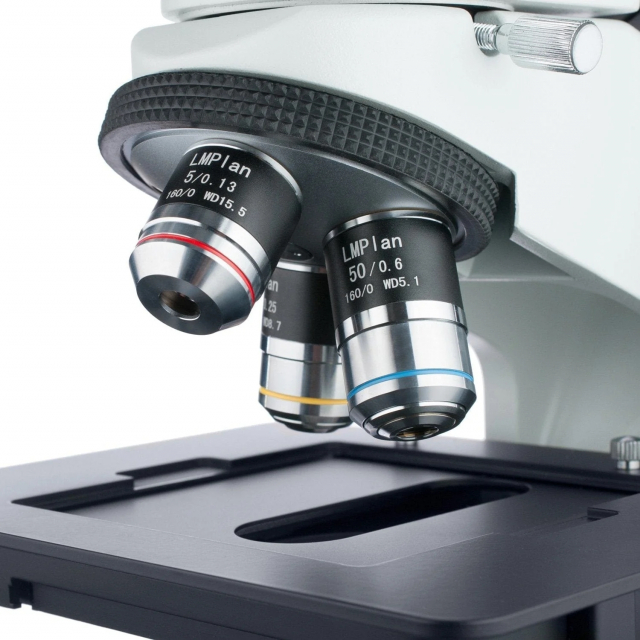

- 5X, 10X, and 50X long-working-distance metallurgy plan achromat objectives
- 4X, 10X, 40X achromat objectives
- 10X plan eyepieces for flat-field viewing
- Co-axial coarse & fine focusing system

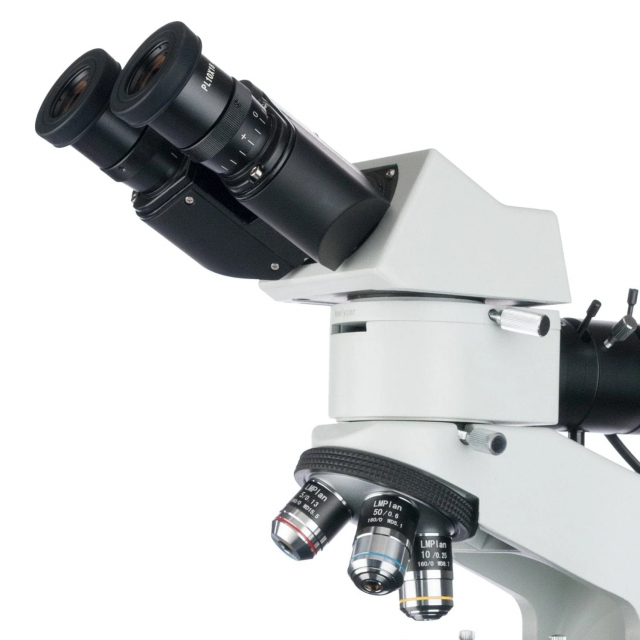

- 30-degree inclined 360-degree rotatable binocular head
- Coaxial coarse and fine focusing
- Dual-focusing control knobs
- Focusing tension control mechanism
- Adjustable interpupillary distance
- Adjustable diopters on both eye tubes
- Solid metal frame construction with stain-resistant enamel finish
This is a feature-packed, economical metallurgical microscope with an upright design, and both transmitted and reflected Illumination. The episcopic illuminator includes a removable polarizer and analyzer, as well as adjustable field and aperture diaphragms. The plan-achromatic optical system offers sharp, flat-field images with excellent color correction. The Siedentopf head with dual diopters and high-eyepoint eyepieces provides a comfortable and adjustable viewing platform.
Change magnifications quickly using the objective turret without significant refocusing thanks to the parfocal design. Using the included 10X and 20X eyepieces and a combination of metallurgical and biological objective lenses, the magnification range spans from 40X to 1000X with nine unique settings. The lenses are achromatically corrected for improved resolution, and flat-field corrected to ensure edge-to-edge sharpness.
