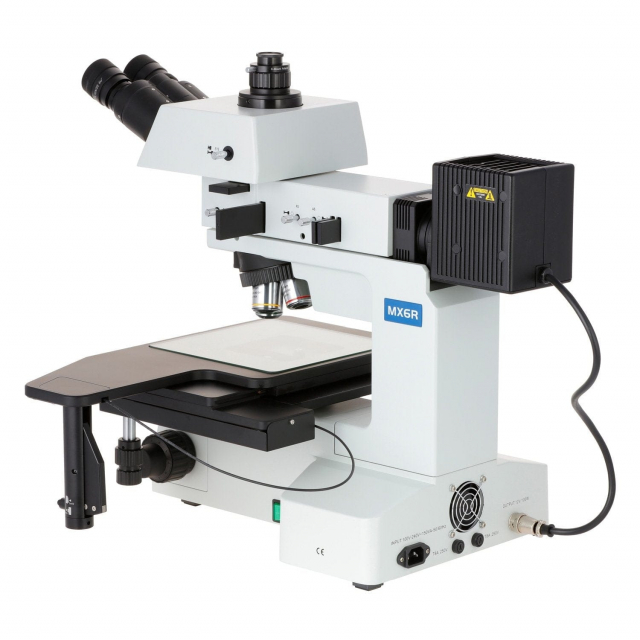

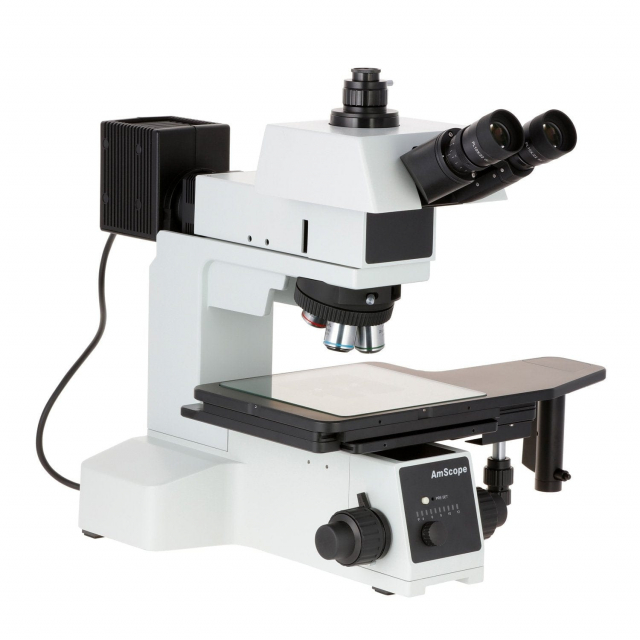

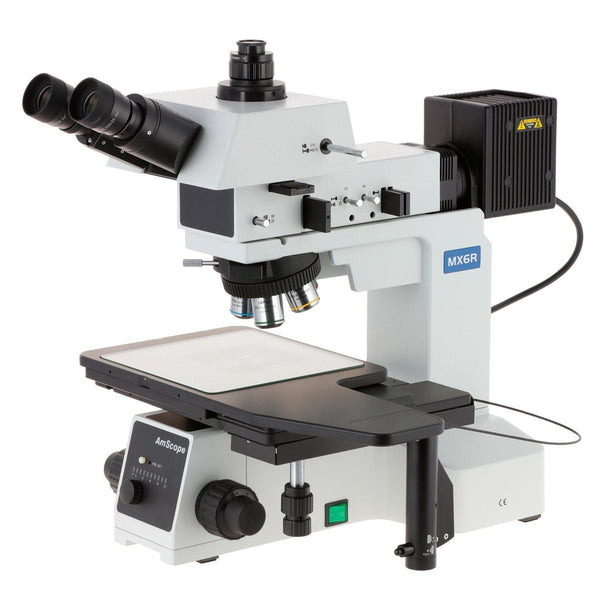

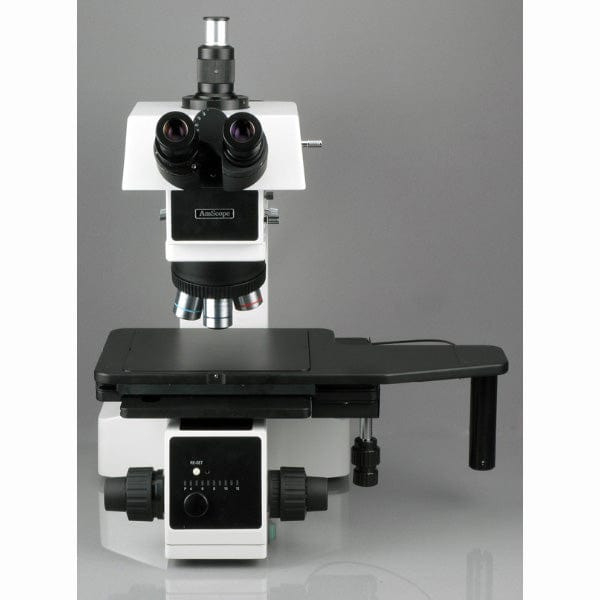

AmScope, ME600TZ-20MBI3, ME600 Series Large-Format Stage Brightfield and Polarizing Metallurgical Upright Trinocular Compound Microscope 50X-1000X Magnification with 20MP USB 3.0 C-Mount Camera
ME600TZ-20MBI3 Includes Only:
- One microscope body
- One trinocular head
- One photo-port
- One episcopic illumination assembly
- One pair 10X eyepieces
- Five BD objective lenses: 5X, 10X, 20X, 50X, 100X
- Assorted filters
- One AC power cable
- One C-mount USB camera
- One USB 3.0 Type B to USB 3.0 type A cable
- One software CD
Key Features:
- 50X to 1000X Magnification with five brightfield/darkfield objective lenses and 10X eyepieces.
- Designed for manufacturing, QC, and materials analysis, this large format microscope provides multiple observation methods including brightfield, darkfield, and simple polarization.
- Extra-large stage with clutch control for coarse positioning, and precision X-Y controls for microscopic adjustments
- Five large-diameter, plan-achromatic BD objective lenses provide increased field-of-view and high resolutions.
- Use a combination of brightfield, darkfield, and simple polarization to bring out complex details such as stress in metal and other materials.
- The infinity-corrected optical system eliminates certain optical errors when using filters and other in-line components, ensuring highly-precise images.
- The trinocular head provides a dedicated photo port for adding a camera for recording photos and videos.
- Monitor and capture photos and videos with the included back-illuminated 20MP USB 3.0 camera. Professional microscopy software for Windows, Mac, and Linux provide tools for image processing, measuring, and more.
Features:
- A brightfield, darkfield and polarizing metallurgical microscopy system with 100W Kohler illumination
- Color corrected infinity optical system (CCIS)

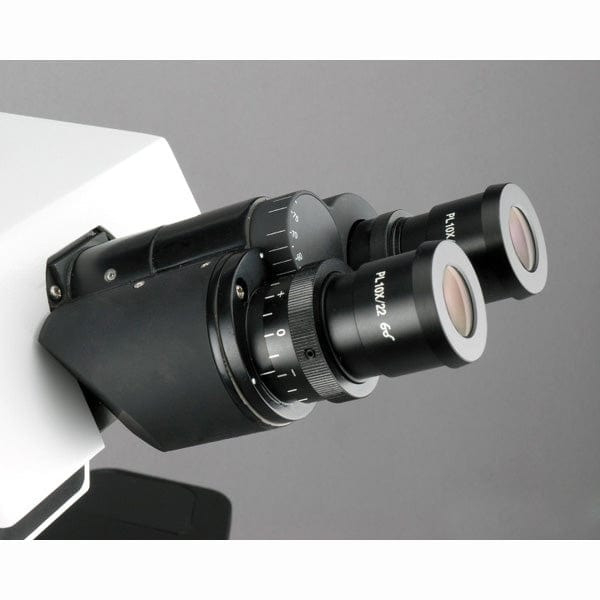

- 25 degree inclined 360 degree rotatable gemel trinocular head with vertical image
- 100% prismatic rate

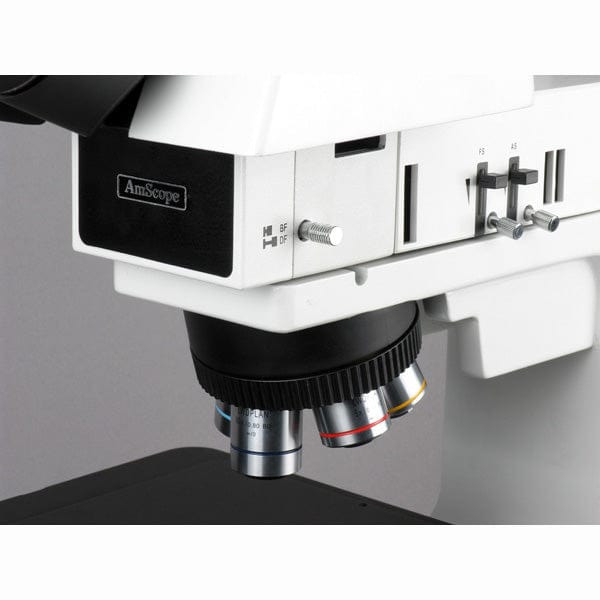

- Quintuple nosepiece with brightfield (BF) and darkfield (DF)
- Five infinity PLAN Achromatic objectives included
- Eyepiece with 0.1mm micrometer and cross hair included

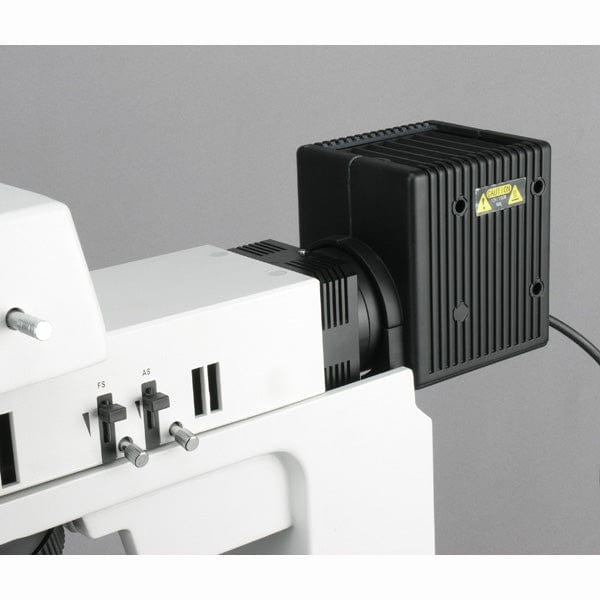

- 100 Watt halogen reflected EPI-illumination system

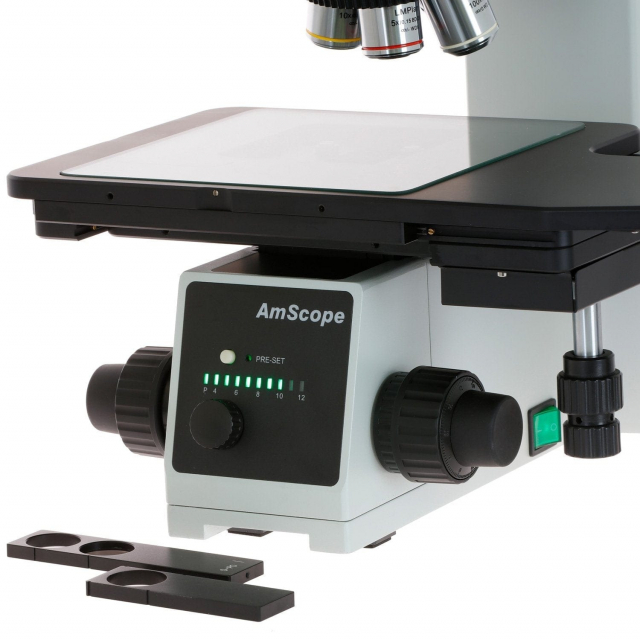

- Digital controlled intensity adjustment and light reset

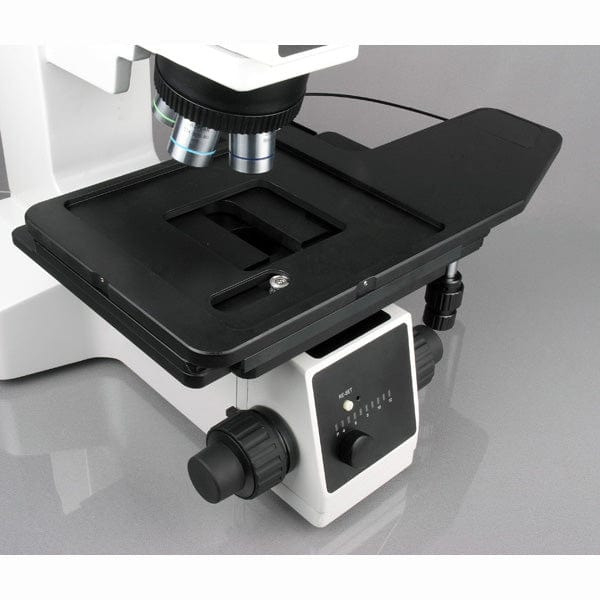

- 6" extremely large mechanical stage with clutch for swift moving control
- Low position stage traveling controls
- Full optical glass elements
- Precise ground glass lenses
- All metal mechanical parts
- Coaxial coarse and fine focusing system
- Dual focusing control knobs
- Focusing tension control mechanism
- Adjustable interpupillary distance
- Adjustable diopters on both eye tubes
Monitor and capture photos and videos with the included high-resolution 20MP USB3.0 camera. The sensitive back-illuminated sensor is designed for improved low-light imaging, making it suitable for fluorescence and darkfield microscopy. AmScope professional software for Windows provides a wide assortment of capture and photo-editing functions including color correction, time-lapse capture, image stitching, and a full complement of measuring tools. A lite version of AmScope software is comes for Mac and Linux with essential functionality for capturing photos and videos.
This is an advanced reflected-brightfield, darkfield and polarizing metallurgical microscopy system. The microscope comes with a quintuple nosepiece, four infinity Plan objectives and a powerful 100W reflected Koehler illumination system, providing brightfield, darkfield and polarizing features. This microscopy system is perfect for metallurgical labs and foundries for silicon wafer inspection, integrated circuit examination, quality control and R&D applications. It is an ideal instrument for metallurgical, mineral and crystal identification.
Optics
The ME600T uses M25 BD objective lenses which provide a larger field-of-view, and can be used with reflected-light darkfield illumination. The quintuple turret allows you to quickly switch between the five lenses. With the included 10X eyepieces, the overall magnification range spans 50X to 1000X.
Monitor and capture photos and videos with the included high-resolution 20MP USB3.0 camera. The sensitive back-illuminated sensor is designed for improved low-light imaging, making it suitable for fluorescence and darkfield microscopy. AmScope professional software for Windows provides a wide assortment of capture and photo-editing functions including color correction, time-lapse capture, image stitching, and a full complement of measuring tools. A lite version of AmScope software is comes for Mac and Linux with essential functionality for capturing photos and videos.
