AmScope, SM-1TYY-FRL-GT-HC2, SM-1 Series Industrial Inspection Trinocular Stereo Microscope 7X-135X Magnification with 8W Fluorescent Ring Light, Gliding Table and 1080P HD Recording Camera
SM-1TYY-FRL-GT-HC2 Includes Only:
- One trinocular stereo microscope head
- One photo port
- 10X eyepiece(s)
- 15X eyepiece(s)
- One 2X Barlow lens
- One pair eye-guards
- One stand base
- One stand pillar
- One focusing block
- One pair stage clips
- One black/white stage plate
- One hex wrench
- Screws and washers
- One C-mount camera
- One mini-USB to USB type-A cable
- One AC to USB adapter
- One mini-HDMI to HDMI cable
- One software mini-CD
- One mechanical gliding stage
- One fluorescent ring-light
- One ring-light mounting adapter
Features:
- 7X-135X extended zoom magnification using high-quality Greenough stereoscopic objective lenses with 10X and 15X eyepieces, and a 2X Barlow lens.
- Continuous zoom magnification
- Super widefield optics offer crystal clear images with a large field-of-view
- Sturdy pillar stand with super large base plate
- Trinocular port for adding photo or video capability
- Includes a 1080p ultra-sensitive multi-function camera for streaming live images over HDMI and recording photo and videos to MicroSD.
- Includes a mechanical gliding stage which allows you to precisely position subjects. The glass top helps avoid static discharge when working with electronics
- The lightweight 8W fluorescent ring-light produces a smooth, encompassing field of light for use with any application.
- 0.7X-4.5X Continuous Zoom Objective Lenses
- 30mm Super Widefield Oculars
- 4" (100mm) Large Native Working Distance
- 45 Degree Inclined Ocular Tubes
- Crystal Clear Original True Color Images
- Erect Sharp Stereo Images over a Super Widefield of View
- High Resolution with Great Flatness and Contrast
- Accurate Alignment Ensuring Fatigue-Free Comfortable Observation
- Both Ocular Tubes with Adjustable Diopters
- Adjustable Interpupillary Distance
- Full Optical Glass Elements
- Precise Ground Glass Lenses
- All Metal Mechanical Components
- Trinocular Port for Adding Photo / Video Capability
- Metal Pillar Stand Finished with Stain Resistant Enamel

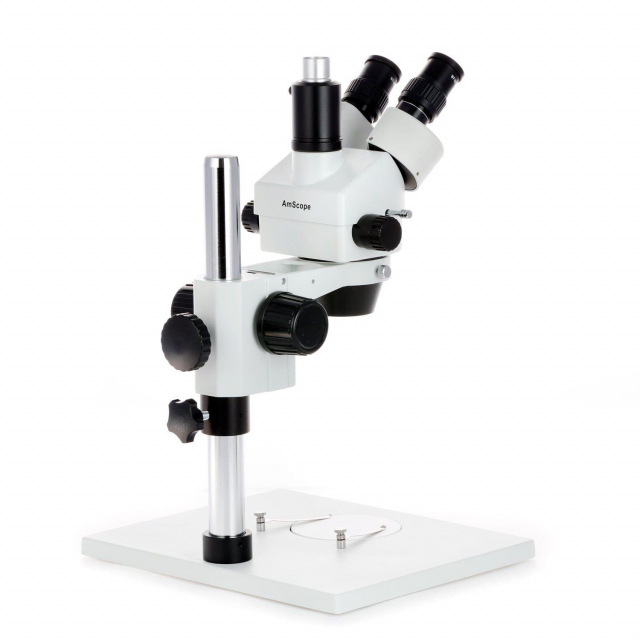

This is a trinocular stereo zoom microscope with a pillar-stand with extra-large base. It incorporates all the most excellent features of a high quality laboratory instrument. Designed to meet the demands of modern microscopy applications, this scope exceeds all expectations. It comes with SUPER widefield optics and super large stand. This microscope offers high resolution and good depth within a broad field of view. It provides crystal clear sharp stereo images with a 4" (100mm) native working distance. Its 45 degree inclined ocular tubes ensure an easy observation and rubber eyeguards provide further comfort.
The stereo optics provide clear, sharp images with excellent focus-depth and a large working-distance. With 0.7X-4.5X zoom objectives, moving through the magnification range is as easy as turning a knob. 10X and 15X eyepieces are included, as well as a 2X Barlow lens to provide an expanded magnification range from 7X-135X, with high-eyepoint optics to accommodate glasses or goggles.
The microscope also features a switched trinocular photo port for attaching an imaging device without the need to replace one of the eyepieces. The photo port is especially useful for attaching a video-capable camera for a live video stream that can be projected on a television or monitor. unmatched lineup of cameras offers endless possibilities, including computer-based imaging and measurements, time-lapse capture, and wi-fi or LAN networking.
This microscope is useful for many applications. It can be used in gemology, geology, forestry, archaeology, agriculture and biology. It is appropriate for educational purposes in hospitals and schools. It is great for the exploration of the world of surface details and fine structures of various materials like wood, metal, solder, semiconductor and gemstone. It is perfect for the examination of insects, plants, rocks, stamps, coins, jewel, soldered points, microelectronic components, circuit boards or virtually any three dimensional objects. This scope is an ideal tool for research labs, gemologists, collectors, engravers, watchmakers, jewelers, dies-makers, philatelists, and anyone in semiconductor or electronic industry.
This package includes a 1080p digital camera with built-in recording, and HDMI output for live-viewing. The camera's compact, all-metal design make it sturdy yet unobtrusive. Video can be viewed live on an HDMI monitor or television at a smooth 60fps, and recorded onto MicroSD (not included) at 30fps.

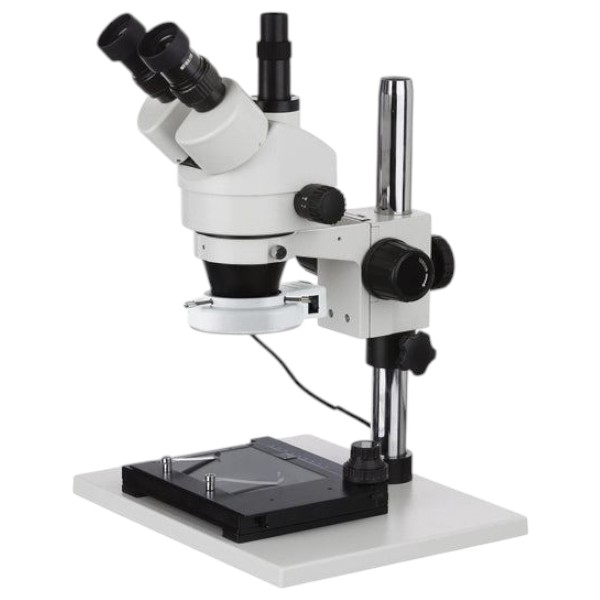

This package includes a mechanical gliding stage and an 8W fluorescent ring-light for seamless lighting. The mechanical stage provides precision control over movement on the X and Y axes. The glass surface is useful for sensitive electronic components, and two clips are attached to secure specimens. The lightweight ring illuminator mounts to the microscope's objective housing, and projects a smooth, encompassing field of light over objects, eliminating most shadows. Whether used as the sole light-source or in combination with additional illuminators, the ring-light produces a crucial light pattern for virtually any application.
