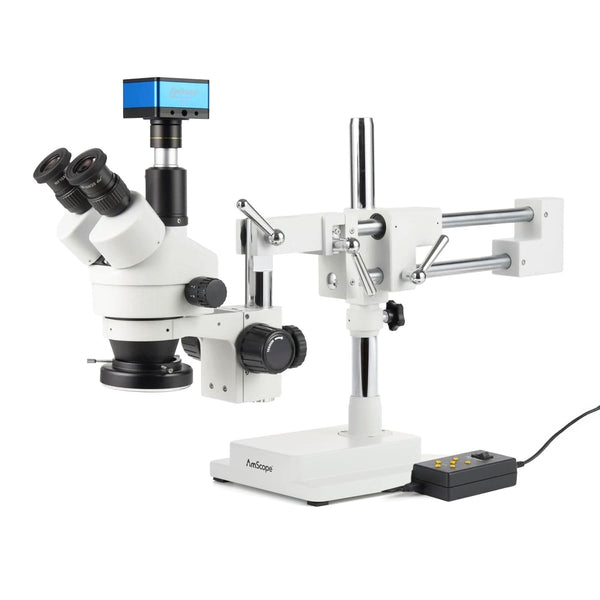

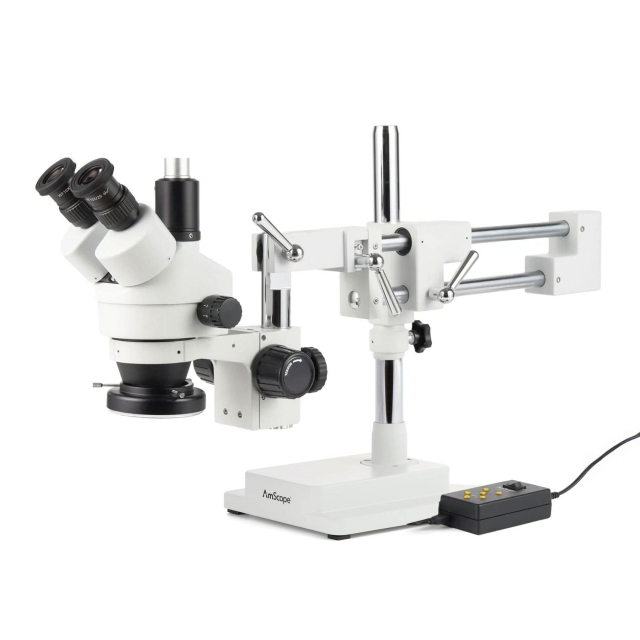

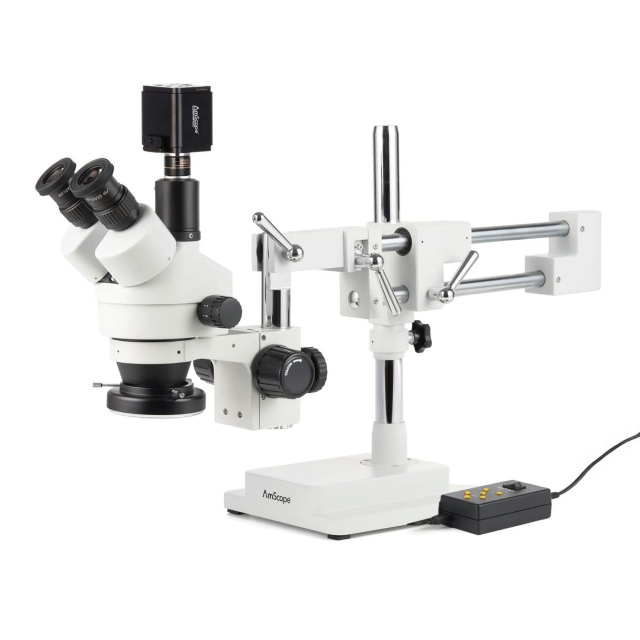

AmScope, SM-4TX-144A-HD4U, Zoom Trinocular Stereo Microscope 3.5X-45X Magnification, SM-4 Series on Double Arm Boom Stand + Four-Zone 144-LED Ring Light + 4K 8MP HDMI Camera
SM-4TX-144A-HD4U Includes Only:
- One trinocular stereo microscope head
- One photo port attachment
- Pair of 10X eyepiece(s)
- One 0.5X Barlow lens
- One pair eye-guards
- One double-arm boom-stand with focusing rack
- One LED ring-light
- One Black Color Control Box
- One Power Cable
- One 48mm Ring Adapter
- One 0.5X C-Mount Photo Port

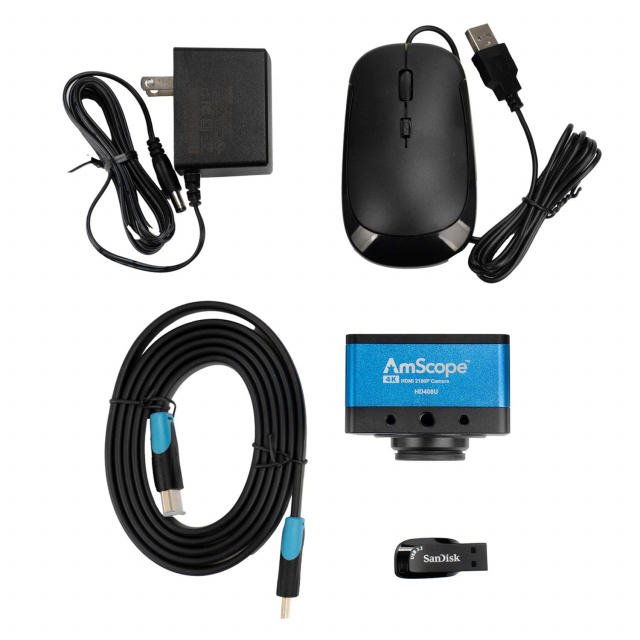

- One Digital Camera
- One USB Mouse
- One HDMI Cable
- One 32gb USB Thumb Drive
- One Power Adapter
Features:
- 3.5X-45X extended zoom magnification using high-quality Greenough stereoscopic objective lenses and a 0.5X Barlow lens.
- A highly-versatile stereo microscope on a robust double-arm boom-stand which allows the microscope to be positioned at virtually any angle.
- Dual diopters can be adjusted to maintain consistent focus throughout the magnification range, greatly improving productivity.
- The stereo optics provide upright images with clear depth-of-field and a wide view for hands-on applications.
- This microscope is ideal for laboratories, repair shops, and engravers.

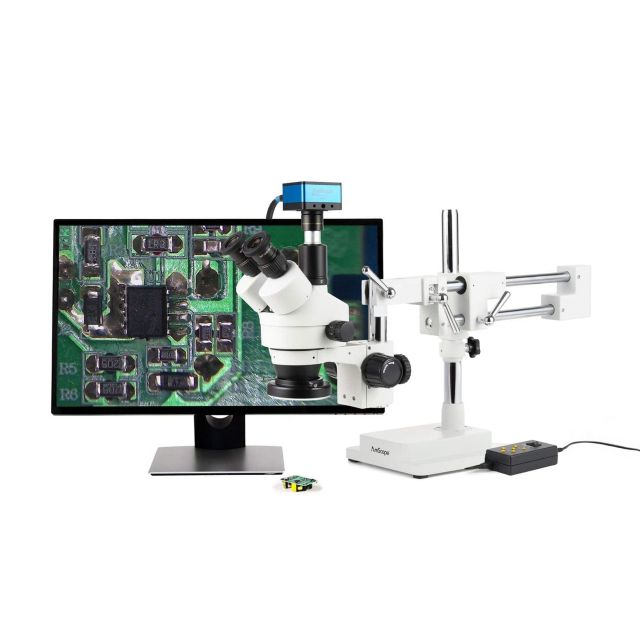

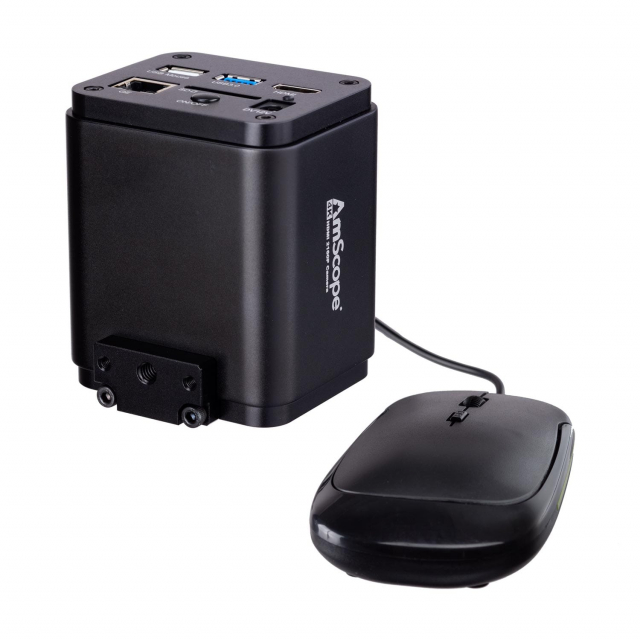

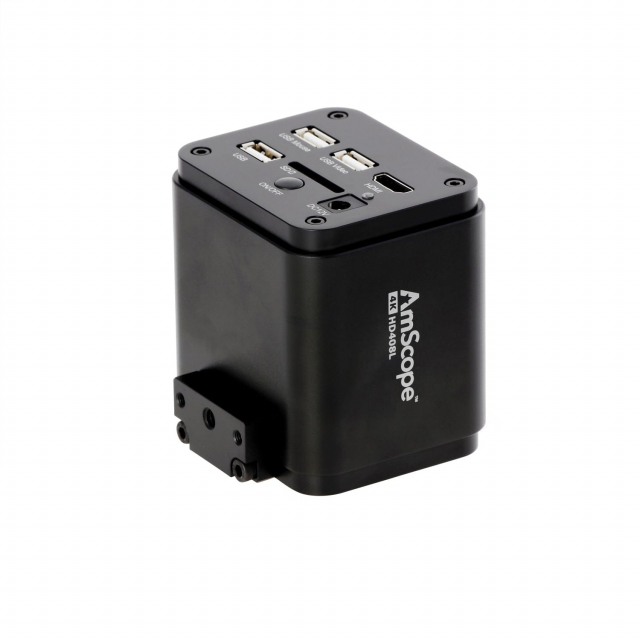

- Includes a 2160p/8MP multi-function ultra-sensitive camera with built-in recording that can stream live video over HDMI.

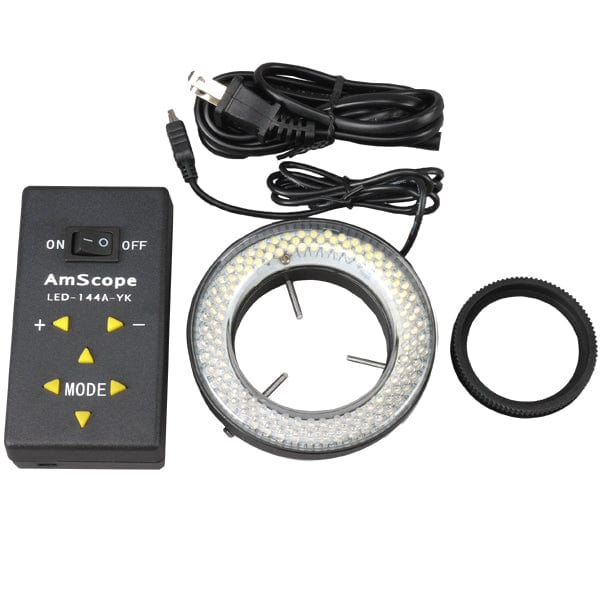

- The 144-LED ring-light uses a power module with fsubdivisions to produce either directional light or an encompassing ring of light.
The SM-4T is a heavy-duty, highly-flexible microscope designed for biological and industrial applications. This model is especially popular in the QC, repair and engraving industries thanks to its ease-of-use and reliability. with its wide zoom range and double-arm boom-stand, this model will become an indispensable instrument in any workshop or lab. This trinocular model has an additional port for mounting a camera, so you can record video or photos without replacing an eyepiece.
Optics
The stereo optics provide clear, sharp images with excellent focus-depth and a large working-distance. with 0.7X-4.5X zoom objectives, moving through the magnification range is as easy as turning a knob. 10X wide-field eyepieces provide an ample magnification range from 7X to 45X, with high-eyepoint optics to accommodate glasses or goggles.

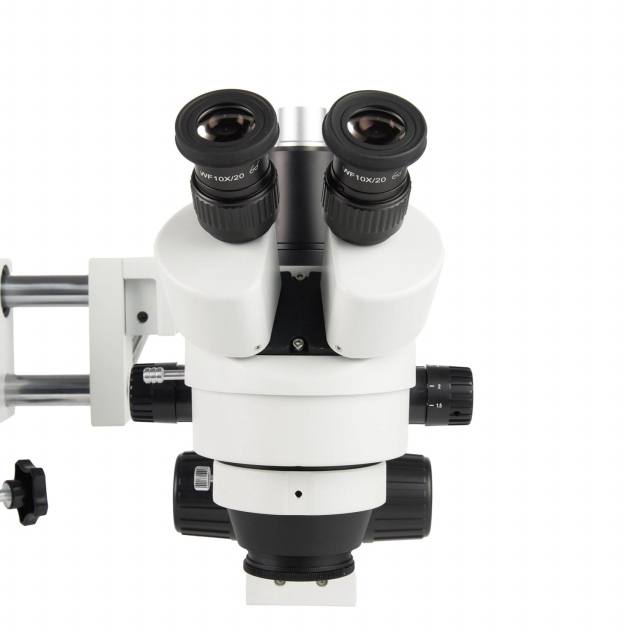

Ocular Adjustment
Dual ocular diopters can be adjusted to maintain consistent focus, greatly improving productivity. Rotating interpupillary adjusters simplify the process of aligning the eyepieces for each user.
Trinocular Port
The switched trinocular photo-port provides a dedicated mount for a camera. When the photo-port is switched open, all light from the left objective is diverted to the port to provide maximum brightness for the camera to guarantee the best quality images.

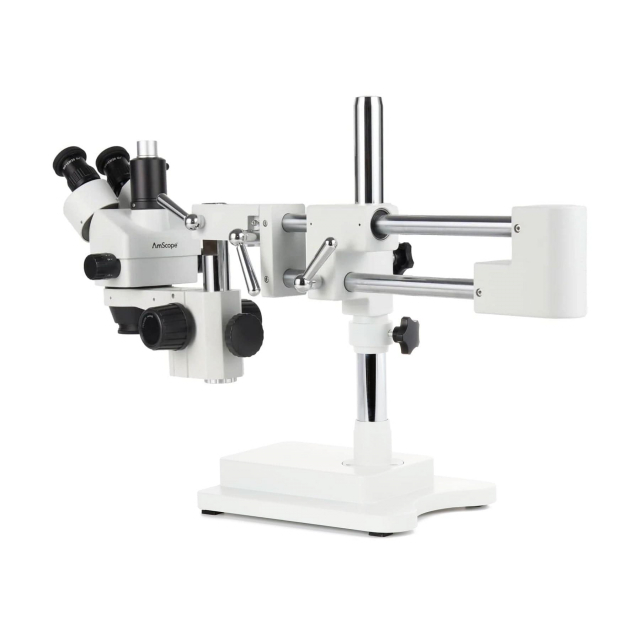

Double-arm Boom-Stand
The multi-pivoting stand provides a stable, flexible support system, ideal for hands-on work. Use of a drop-down column allows the head to be positioned at virtually any angle. Ball-bearings provide smooth movement of the lateral arms, which can easily pivot the microscope out of the way when it is not needed. The heavy, steel base ensures the stability of the microscope, even when laden with attachments.
