AmScope, T490-PCT-MBI3, T490 Series Phase-Contrast Simul-Focal Trinocular Compound Microscope 40X-1000X Magnification with 20W Halogen, Turret Condenser, 3D Mechanical Stage and 1.2MP USB 3.0 C-mount Camera

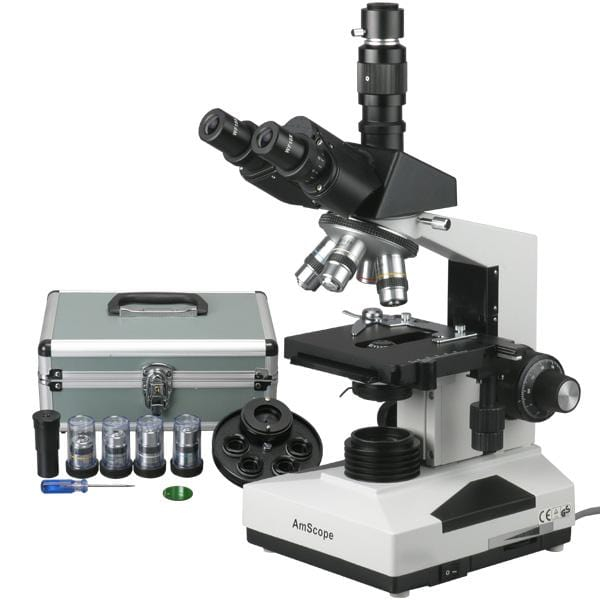

T490-PCT-MBI3 Includes Only:
- One trinocular head
- One microscope body
- One photo port
- Four objective lenses: 4X, 10X, 40X, 100X
- One pair 10X eyepieces
- One phase contrast kit:
- Four objective lenses
- One turret condenser
- One centering eyepiece
- One green filter
- One screwdriver
- One aluminum case
- One power cord (US and Canada standard)
- One dust cover
- Three color filters (blue, green, yellow)
- One spare halogen bulb
- One spare fuse
- One sample bottle of immersion oil
- One C-mount USB camera
- One 0.37X reduction lens
- Two sizing adapters
- One USB 3.0 Type B to USB 3.0 type A cable
- One software CD
Features:
- 40X to 1000X magnification range using high-quality achromatic objective lenses.
- A top choice for veterinarians, clinics, and classrooms, this microscope provides high quality optics and precision mechanics.
- Professional features include a Siedentopf trinocular head for precise adjustments, a 2-layer mechanical stage with low-position controls, and coaxial coarse and fine focus for ergonomics and an efficient workflow.
- Halogen lighting reduces eye-strain for prolonged use.
- The trinocular photo port allows you to easily mount a camera. The T490 is compatible with the CX series C-mount photo ports with built-in reduction.
- Includes a phase-contrast kit for live-cell studies. The kit includes 4 plan-achromatic phase-ring equipped objective lenses and a 5-position turret condenser.
- Monitor and capture photos and videos with the included ultra-sensitive 1.2MP USB 3.0 camera. Professional microscopy software for Windows, Mac, and Linux provide tools for image processing, measuring, and more.

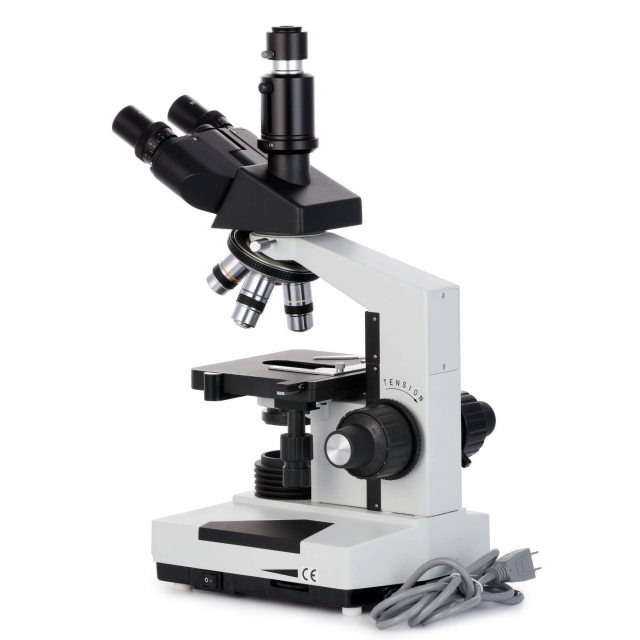

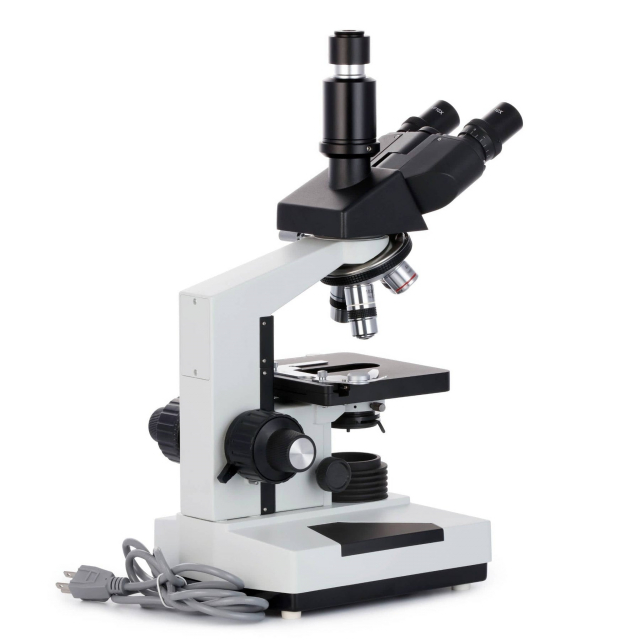

The T490-PCS ads phase-contrast to the hardest-working go-to microscope. A top choice for veterinarians, breeders, and clinics, this instrument has proven reliability and optical quality. It boasts features such as a compensation-free Siedentopf head, smooth stage translation, and a precision focus system with easy tension-adjustment and vertical-lock. The simul-focal trinocular head provides a dedicated photo port which can be used simultaneously with both eyepieces. A 5-position turret condenser provides easy access to brightfield and multiple phase-contrast settings with the turn of a dial.

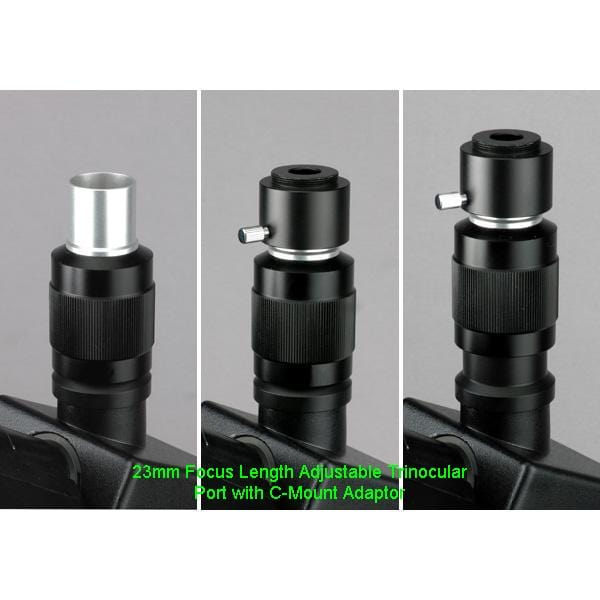

To customize the microscope to your viewing comfort, the eyepiece spacing can be easily adjusted using a precision Siedentopf mechanism. The 23mm photo port is height-adjustable to match focus with the eyepieces, and can be replaced with an optional CX series C-mount port which have built-in reduction, and can directly interface with C-mount cameras.

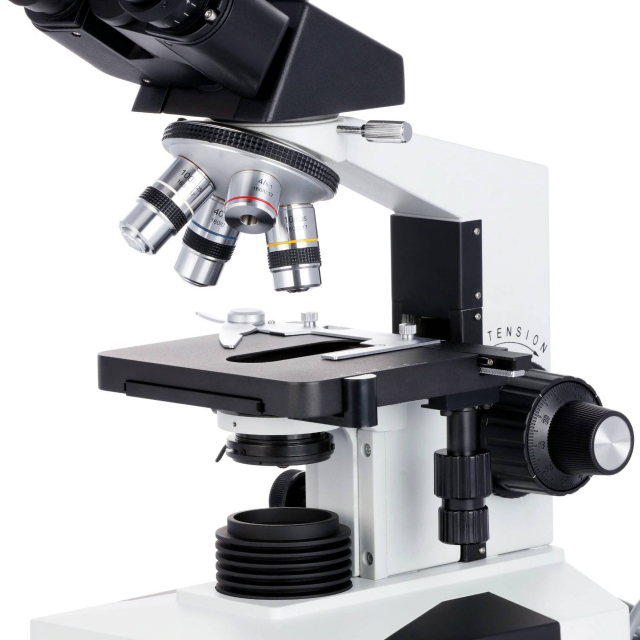

The objective turret provides instant access to 4 magnification levels to easily focus in on minute details from 40X to 1000X. This covers magnifications needed for studying hair follicles, cells, and bacteria. These high-quality lenses are achromatically corrected to improve resolution and color accuracy.
The 2-layer mechanical stage provides smooth and precise movement for examination of specimen slides. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimen slides is intuitive and precise for users at any skill level. Halogen sub-stage lighting provides bright illumination with excellent color rendering. The warm lighting is better suited for prolonged use, causing less eyestrain than LED and fluorescent lighting. The Abbe light condenser has a high 1.25 numerical aperture for oil-immersion, and an iris diaphragm to optimize contrast and depth-of-field. The condenser holder uses rack-and-pinion movement for precise height adjustment.

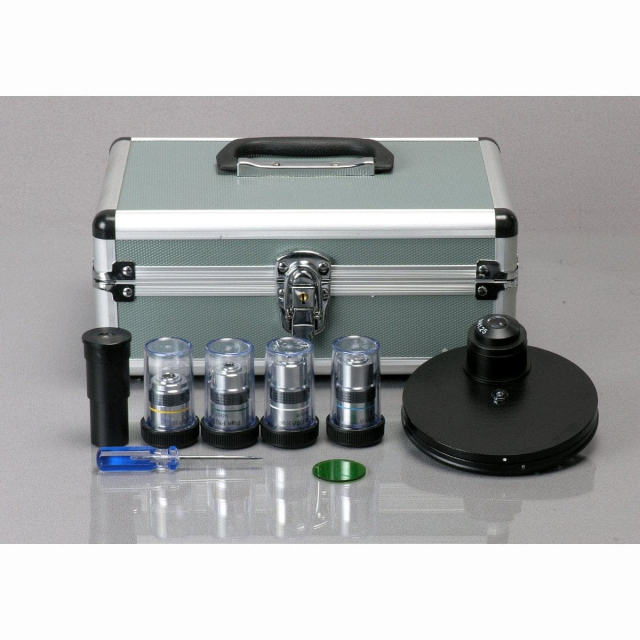

A phase-contrast kit is included with a 5-position turret condenser and 4 plan-achromatic phase-contrast objective lenses. Phase contrast is used to reveal detail in indistinct objects, such as unstained cells and microorganisms that would otherwise appear invisible. By using a combination of specialized objective lenses and a modified light condenser, these invisible objects can be visualized by manipulating variations in phase. This turret condenser allows you to easily rotate through the brightfield and Four phase-contrast settings (10X, 20X, 40X, 100X). Each phase-contrast setting has a centerable annulus for proper alignment. Each of the phase-ring equipped objective lenses has plan-achromatic corrections for improved color and resolution, as well as edge-to-edge sharpness.
Monitor and capture photos and videos with the included 1.2MP USB3.0 camera. with extraordinary sensitivity and high framerates, the MU123-FL provides high-definition imaging for low-light applications, including fluorescence and darkfield. Using a cutting-edge 1.2MP back-illuminated CMOS sensor with an incredible 2040mV sensitivity (1/30s), high gain-levels can be used for highly-responsive realtime video. A 0.37X reduction lens is included for use with 23mm-30.5mm ports to capture more of the microscope's field-of-view. The professional software for Windows provides a wide assortment of capture and photo-editing functions including color correction, time-lapse capture, image stitching, and a full complement of measuring tools. A lite version of the software is for Mac and Linux with essential functionality for capturing photos and videos.
