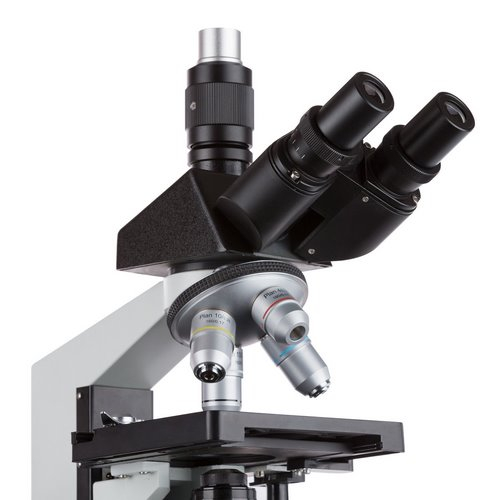

AmScope, T490B-PL-10M3, 40X-2000X Trinocular Biological Compound Microscope with Plan Objectives + 10MP USB3.0 Digital Camera
T490B-PL-10M3 Includes Only:
- Trinocular Simul-focal Microscope Siedentopf Head
- 23mm Adjustable Trinocular Photo Port with C-mount Adapter
- Microscope Body with Frame, Base and Halogen Illumination System
- DIN Objectives, 4x, 10x, 40x and 100x
- Widefield 10x Eyepieces (pair)
- Widefield 20x Eyepieces (pair)
- Color Filters
- 6v/20w Spare Halogen Bulb
- Spare Fuse
- Power Cord
- Dust Cover
- Immersion Oil
- One 10MP USB3.0 Microscope Digital Camera with Reduction Lens
- One CD with Camera Software & Driver
- One 6' USB Cable
- Two Adapter Sleeves (23.2mm-30mm & 23.2mm-30.5mm)
- Shipping weight: 20 lbs
Features:
- 40x-2000x eight widefield magnification settings with plan objectives
- Simul-focal trinocular head boasts unique features
- 10MP USB3.0 digital camera with advanced editing & measuring software for Windows XP/Vista/7/8/10
- C-mount adapter included
- 3D two-layer mechanical stage with low position control
- Abbe condenser with iris diaphragm
- Coaxial coarse and fine focusing
- Sturdy metal framework
- Adjustable simul-focal trinocular port
- Industry standard 23mm photo port and c-mount port
- 30-degree inclined, 360-degree swiveling trinocular Siedentopf head
- Photo/video capability with adjustable 23mm photo mount for simul-focal image system
- Large 3D double layer mechanical stage with stain resistant finish
- Low-position coaxial stage movement control knobs
- Coaxial coarse & fine focusing with ca knob tension control
- Fully coated optical system with high resolution
- Plan achromatic objectives offer flattened field-of-view
- Eight magnification settings: 40x-80x-100x-200x-400x-800x-1000x-2000x
- Upward stage stopper to protect slides and objectives
- Abbe condenser with iris diaphragm & filters
- Rack and pinion adjustment for condenser
- Built-in halogen illumination system with variable intensity
- Dual focusing control knobs
- Full optical glass elements
- Precise ground glass lenses
- All metal mechanical components.
- Adjustable interpupillary distance
- Adjustable diopter on ocular
- Solid metal frame construction with stain resistant enamel finish
- CE and GS approvals
- Manufactured under ISO 9001 quality control standard
- Nosepiece: quadruple
- Mechanical tube length: 6-5/16" (160mm)
- Head: 360-degree swiveling trinocular Siedentopf head inclined at 30-degree
- Eyepieces: wf10x and 20x
- Plan achromatic objectives: 4x, 10x, 40x (spring), 100x (spring, oil)
- Stage dimensions: 5-1/2"x 5-1/2" (140x140mm)
- Stage traveling range: 2-15/16"x 1-3/4" (75x45mm)
- Focusing range: 1-3/16" (30mm)
- Division of fine focusing: 0.0000787" (0.002mm)
- Abbe condenser: na=1.25 with rack and pinion focusing control
- Illumination: 6v/20w halogen bulb
- Power supply: 110v, CE & GS certified
- Accessories: 6v/20w spare halogen bulb, bottle of immersion oil, blue, green & yellow filters
- Microscope dimensions: 12" x 9" x 16"
The T490B-PL features a unique simul-focal optical system with an adjustable trinocular port to enable well-focused clear images on your computer or video screen while simultaneously obtaining sharp, focused images through the eyepieces. Most trinocular microscopes allow you to view either through the trinocular port or the eyepieces only, forcing you to switch between the two. Since these trinocular ports are not simul-focal with the rest of the microscope optical system, you have to re-focus the microscope after each switch. The T490B-PL, however, erases this step by providing simul-focal viewing. Especially handy for teaching demonstrations, clinical examinations and laboratory applications, the simul-focal feature allows your students or colleagues to view clear images simultaneously while you work through the eyepieces. In addition, the T490B-PL's industry standard 23mm photo port can be converted into a C-Mount port by attaching the included C-mount adapter, allowing you to attach most microscope digital cameras and video systems on the market. The T490B-PL includes a 30-degree inclined 360-degree swiveling trinocular Siedentopf head, a 3-D mechanical stage, and an intensity-variable halogen illumination system. It is a perfect laboratory instrument for clinics, Vets, Doctors, and professional students. The T490B-PL features an extensive range of magnifications, from 40X to 2000X. The plan-achromatic lenses offer color-correction and an improved, flatter field-of-view, allowing for better edge-to-edge viewing with sharper details. The 490 series is compatible with a large array of optional accessories, including phase-contrast and dark-field kits, and a wide range of cameras. The 10MP USB3.0 digital camera captures still images and video, and allows you to view a live stream on your PC. With software for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features
