T690C-5MA Includes Only:
- One Trinocular Siedentopf Head
- One Microscope Body Frame with Base and Kohler Illumination System
- Four High Quality Infinity Objectives: 4X, 10X, 40X and 100X
- One Pair of Extreme Widefield WH10X Eyepieces
- One Pair of Extreme Widefield WH25X Eyepieces
- One Power Cord
- Three Color Filters
- One Dust Cover
- One Spare Halogen Bulb
- One Spare Fuse
- Immersion Oil
- User's Manual Download
- One Heavy-Duty 5MP Digital Camera (MA1000)
- One USB Cable
- Two Adapters
- One CD with Software and Step-by-Step User's Instructions
Features with all optional accessories:
- An Affordable Infinity Optical Microscopy System with Kohler Illumination!
- Backward Nosepiece Allowing Spacious Room for Comfortable Observation
- Large Mechanical Stage with Two-microslide Specimen Clamp
- Humanized Configuration Design Providing Comfortable Operation
- Front Open Light house Framework for Easy Access to Light Bulb
- 5MP High Quality Heavy-Duty Color USB2.0 Digital Camera
- Both Captures Microscope Images and Streams Live Video on Your Computer Screen
- Displays 5MP Clear Images with High Resolution
- Saves Still Images in BMP, TIFF, JPG, PICT, PTL and Other Formats
- Measures Lengths, Angles, Areas and etc. across Images
- Edits Images on Your Computer in a Manner Similar to PhotoShop
- User-friendly Software Compatible with Windows 2000/XP/Vista/7/8 and Mac OS 10.6 & up
- Life-time Free Software Upgrading
- Built-in Reduction Lens Provides the Same Field of View on Screen as through Eyepieces
- Quick and Easy USB2.0 Connection
- Easy Installation and Operation
- Fully Coated Optical System with High Resolution
- Crystal Clear Sharp Images
- Precise Mechanical Control System
- Backward Nosepiece Design for Spacious Operation Room
- Kohler Illumination System with Field Diaphragm for Lighting Control
- 30 Degree Inclined, 360 Degree Swiveling, Trinocular Siedentopf Head
- Six Magnification Levels: 40X, 100X, 250X, 400X, 1000X and 2500X
- Intensity-Variable Transmitted Halogen Lighting System
- Abbe Condenser with Iris Diaphragm and Swing-Out Filter Holder
- Rack and Pinion Adjustment for Condenser
- Low Position Coaxial Stage Movement Control Knobs
- Dual Side Coaxial Coarse and Fine Focusing Control
- Adjustable Interpupillary Distance
- Adjustable Diopter on Ocular
- Durable Cast Alloy Frame Stand with Stain Resistant Enamel Finish
- Four Infinity Objectives: 4X, 10X, 40X, 100X
- Two Sets of Wide Field Eyepieces: Wide Field 10X (22mm Field of View) and 25X
- Large Double Layer Mechanical Stage with Stain Resistant Finish
- Upward Stage Stopper to Protect Objectives and Slides
- Compatible with a Wide Range of Optional Accessories, Including Phase Contrast and Darkfield Condensers
- Manufactured under ISO 9001 Quality Control Standards

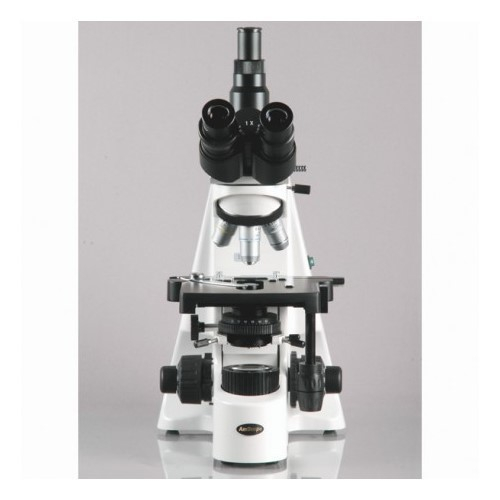

This is a brand professional infinity trinocular compound microscope with superior extreme widefield infinity optical system, offering crisp clear images. It comes with a 30 degree inclined 360 degree swiveling trinocular Siedentopf head, extreme widefield eyepieces, infinity objectives, 3-D mechanical stage with coaxial coarse & fine focusing, wide band voltage (85V-230V) Kohler halogen illumination, and a heavy-duty 5MP digital camera. The backward nosepiece configuration allows spacious room for convenient operation and comfortable observation. This microscope provides six levels of magnification: 40X, 100X, 250X, 400X, 1000X and 2500X.
The color digital camera captures microscope images and displays real-time live video on your computer screen. It comes with a built-in reduction lens, user-friendly software, and adapters. The camera offers 5MP resolution and is compatible with Windows XP/Vista/7/8, Mac OS X and Linux. The reduction lens enables the same field of view images on your computer screen as those seen through eyepieces. With life-time free upgrading, the multi-functional user-friendly software allows you to preview live images, record videos, capture still pictures, edit captures, or save them in BMP, TIFF, JPG, PICT, PTL and other formats very easily, as well as conduct length, angle, area, and other measurements.
This microscopy system is a superb instrument for clinic offices, veterinary labs and research laboratories.
