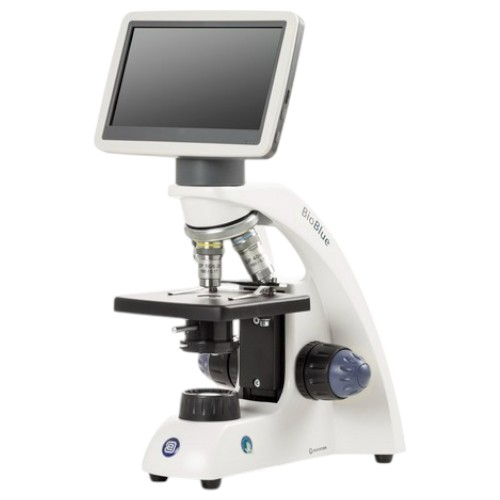

Euromex, EBB-4200-LCD, BioBlue Microscope with 7" LCD Screen and SMP 4/10/S40x Objectives, Plain Stage with clamps and 1W LED cordless Illumination
EBB-4200-LCD Includes Only:
- Microscope
- Power cord
- Three rechargeable AA batteries
- Dust cover
- Spare fuse
- 7" LCD screen
- SD card for images and video
- White filter
- User manual
- Polystyrene box
Features:
- WF10x/18mm eyepiece(s)
- Provided with APL (Antimicrobial Protection Layer)
- Reversed nosepiece for 4 semi-plan objectives
- coaxial coarse and fine adjustments with rack stop
- Height-adjustable Abbe condenser with iris diaphragm and filter holder
- Ergonomic stand
- LcD versions do not run on batteries
- 7" LCD screen, 1920x1080 pixels
Head
- Head is 360° rotatable and secured with a screw
- Head with 45° inclined tubes
Nosepiece
Reversed quadruple nosepiece on ball bearings.
Focusing
- coaxial coarse and fine adjustments with 200 graduations. Precision 2 μm per graduation, 0.4mm per rotation
- Total travel is approximately 23 mm
- Supplied with an adjustable rack stop to prevent damage to the sample and objectives
- The coarse adjustment is equipped with friction control
Stage
120 x 120mm plain stage supplied with two non-removable object clamps.
Condenser
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder.
Illumination
It is supplied with an adjustable 1W LED illumination.
Anti-Theft Slot
At the back of the microscope, a Kensington Security Slot is placed, which can be used to secure the instrument from theft.
Extensive experience of Euromex optical engineers has contributed to the development and implementation of the BioBlue series with the finest optical components and guaranteed performance, which means clear bright images at every magnification. The modern microscopes of the BioBlue series are especially developed for educational purposes with primary focus on ergonomic and today's quality standards
