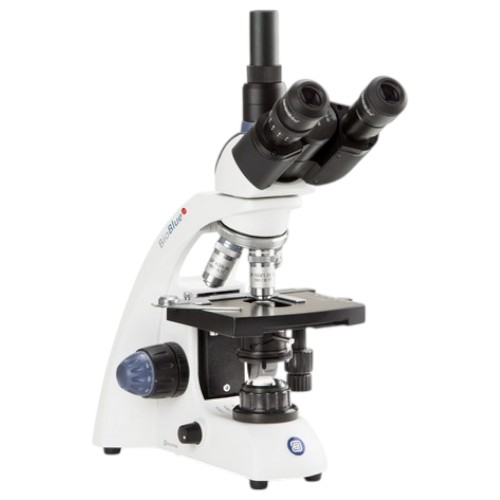

Euromex, EBB-4253-E, BioBlue EVO Trinocular Microscope with WF10x/20mm Eyepiece, SMP 4/10/S40/S100x Oil Objectives with Mechanical Stage and 1W NeoLED cordless Kohler Illumination
EBB-4253-E Includes Only:
- Microscope
- Power cord
- Three rechargeable AA batteries
- Dust cover
- Spare fuse
- White filter
- 5 ml immersion oil
- User manual
- Polystyrene box
Features:
- Supplied with WF10x/20mm eyepieces and Kohler NeoLED(tm) illumination
- Provided with APL (Antimicrobial Protection Layer)
- Reversed nosepiece for 4 semi-plan objectives
- coaxial coarse and fine adjustments with rack stop
- Height-adjustable Abbe condenser with iris diaphragm and filter holder
- Ergonomic stand
Head
- Head is 360° rotatable and secured with a screw
- Head with 30° inclined tubes, interpupillary distance is adjustable between 48 and 75mm and equipped with a ± 5 diopter adjustment on the left tube
- The trinocular head has a fixed light path beamsplitter (50:50) and generates an erect image
Nosepiece
Reversed quadruple nosepiece on ball bearings.
Focusing
- coaxial coarse and fine adjustments with 200 graduations. Precision 2 μm per graduation, 0.4mm per rotation
- Total travel is approximately 23 mm
- Supplied with an adjustable rack stop to prevent damage to the sample and objectives
- The coarse adjustment is equipped with friction control
Stage
130 x 130mm with mechanical 70 x 28mm X-Y translation stage except.
Condenser
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder.
Illumination
- It is supplied with Kohler NeoLED™ illumination
- All BioBlue microscopes are supplied with rechargeable AA batteries and an integrated 100-250VAC power supply for cordless operation.
Anti-Theft Slot
At the back of the microscope, a Kensington Security Slot is placed, which can be used to secure the instrument from theft.
Extensive experience of Euromex optical engineers has contributed to the development and implementation of the BioBlue series with the finest optical components and guaranteed performance, which means clear bright images at every magnification. The modern microscopes of the BioBlue series are especially developed for educational purposes with primary focus on ergonomic and today's quality standards
