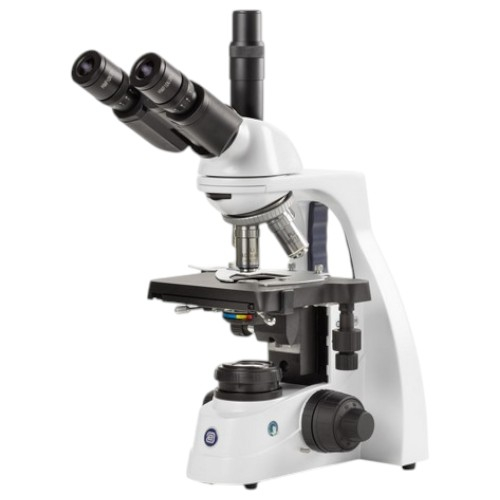

Euromex, EBS-1153-PLi-4N, bScope Trinocular Microscope, HWF10x/20mm Eyepiece and Quadruple Nosepiece with Plan PLI 4/10/S40/S100x Oil Infinity Corrected IOS Objectives, 131 x 152/197mm Stage with Integrated Mechanical 75 x 36mm Rackless X-Y Stage, 3W NeoLED Kohler Illumination and Integrated Power Supply
EBS-1153-PLi-4N Includes Only:
- Microscope
- Power cord
- Dust cover
- Spare fuse
- White filter
- 5 ml immersion oil
- User manual
Features:
- Bscope® for brightfield
- Provided with APL (Antimicrobial Protection Layer)
- Microscopes for research and laboratories
- HWF10x/20mm eyepieces
- Reversed ball-beared quadruple or quintuple nosepiece with a slot for a polarization filter
- E-plan, E-plan IOS, and Plan IOS objectives
- Plan Phase IOS objectives
- Rackless integrated X-Y mechanical stage
- color-Coded condenser
- 3W NeoLED™ adjustable illumination system
- Integrated carrying grip
- cable Storage System
Eyepieces
High wide field HWF10x/20mm secured eyepiece(s) with 20mm field of view. The eyepiece is supplied with the pointer.
Head
- It is equipped with a diopter ± 5 adjustment on left eyepiece
- Has a unique swiveling system of the eyepiece tubes for ergonomic positioning of both tubes in a high (431 mm) and in a low position (377 mm)
- The trinocular head comes with a 23.2mm tube, ensuring a maximum of flexibility and has a fixed light path beam splitter (20:80) and generates an erect image
Nosepiece
Revolving and reversed ball-beared quadruple or quintuple nosepiece.
Objectives
The state-of-the-art production techniques and multi-layer coatings used for the manufacturing of the bScope objectives enable the bScope to be used for the most demanding applications. World-Class spherical aberration correction and modern cNc and assembly technology ensure the perfect centering of the objectives.
- All S40x, S60x, and S100x oil immersion objectives are spring-loaded.
- All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Focusing
Double coaxial, low-positioned coarse and fine adjustments with 180 graduations. Precision 1.11 µm, 200 µm per rotation, total travel approximately 19 mm. Supplied with an adjustable rack stop to prevent damage to the sample and objectives. The coarse adjustment is equipped with friction control.
Stage
- The bScope is equipped with a scratch-resistant 152/197 x 131mm stage with an integrated 75 x 36mm X-Y rackless mechanical stage, Vernier scale, soft-Close removable specimen holder
- The rackless stage has no protruding parts, enables smoother movements, and is safer in use. Low-positioned X-Y control knobs prevent fatique during long working sessions.
Condenser
The standard in height adjustable Abbe N.A. 1.25 condenser for brightfield comes with an iris diaphragm and swing-out filter holder. The condenser is color-Coded.
Polarization
The bScope has an integrated slot above the nosepiece for polarization filter.
Illumination
The microscopes of the bScope are equipped with a 3W NeoLED adjustable illumination system for increased light output and a 100-240VAC integrated power supply.
Kohler Illumination
The 3W adjustable Kohler NeoLED diascopic illumination is powered by an internal 100-240V power supply, making it suitable for worldwide use. The innovative NeoLED design offers larger apertures, allowing the optical system of the bScope microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits of the NeoLED are the low energy consumption, no heating, and a long operating lifetime.
cSS - cable Storage System
This system allows users to easily stow away excess cable length into the back of the instrument during operation and to roll up the power cable for easy storage.
carrying Grip
The integrated carrying grip at the back of the microscope ensures the safe transportation of the microscope
Anti-Theft Slot
At the back of the microscope, a Kensington Security Slot is placed, which can be used to secure the instrument from theft
