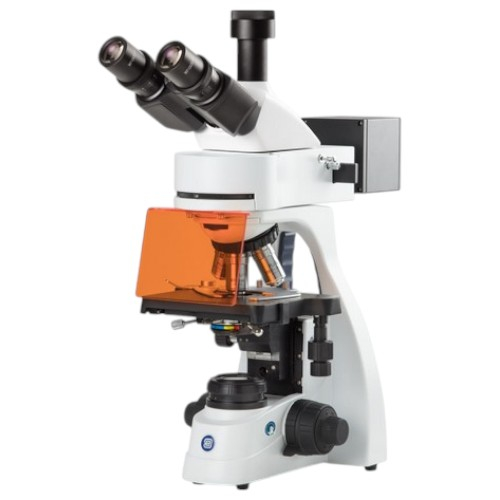

Euromex, EBS-3153-PLFi, bScope Trinocular Microscope for LED Fluorescence, HWF10x/22mm Eyepiece and Quintuple Nosepiece with Plan Fluarex PLFI 4/10/S40/S100x Oil Infinity Corrected Objectives, 131 x 152/197mm Stage with Integrated Mechanical 75 x 36mm Rackless X-Y Stage
EBS-3153-PLFi Includes Only:
- Digital Microscope
- Power cord
- Dust cover
- Spare fuse
- White filter
- 5 ml immersion oil
- User manual
Features:
- Medical device class I - EU MDR 2017-745
- Trinocular models
- WF10x/22mm eyepieces
- Reversed ball-bearing quintuple nosepiece with a slot for a polarization filter
- Plan IOS and Plan Fluarex IOS objectives
- Rackless integrated X-Y mechanical stage
- color-Coded condenser
- Epi-fluorescence illumination with four monochromatic LEDs
- 3W NeoLED™ adjustable transmitted illumination system
- Integrated carrying grip
- cable Storage System and anti-theft system
- Bscope® with epi-fluorescence 4 LED illumination (blue, green, violet and ultra-violet)
Eyepieces
Wide field HWF10x/22mm secured eyepieces (30mm tube).
Head
- The bScope® is equipped with a Siedentopf-type head and equipped with 30° inclined 30mm tubes and with a ± 5 diopter adjustment on the left eyepiece. The interpupillary distance is adjustable between 48 to 76 mm
- The trinocular head comes with a 23.2mm photo tube, ensuring maximum flexibility. The prisms inside the heads are designed to minimize the light absorption for perfect digital imaging. The trinocular head has a light path selector (100:0 / 0:100) and generates an erect image
Nosepiece
Revolving and reversed ball-bearing quintuple nosepiece.
Objectives
The state-of-the-art production techniques and multi-layer coatings used for the manufacturing of the bScope® objectives enable the bScope® to be used for the most demanding applications. World-Class spherical aberration correction and modern cNc and assembly technology ensure the perfect centering of the objectives.
- All S40x, S60x, and S100x oil immersion objectives are spring-loaded.
- All optics are anti-fungal treated and anti-reflection coated for maximumlight throughput.
Focusing
Double coaxial, low-positioned coarse and fine adjustments with 180 graduations. Precision 1.1 µm, 200 µm per rotation, total travel range is approximately 19 mm. Supplied with an adjustable rack stop to prevent damage to the sample and objectives. The coarse adjustment is equipped with friction control.
Stage
The bScope® is equipped with a scratch-resistant 152/197 x 131mm stage with an integrated 75 x 36mm X-Y rackless mechanical stage, Vernier scale, and soft-Close removable specimen holder. The rackless stage has no protruding parts, enables smoother movements, and is safer in use. Low-positioned X-Y control knobs prevent fatigue during long working sessions.
Condenser
The standard height-adjustable Abbe N.A. 1.25 condenser for brightfield comes with an iris diaphragm and swing-out filter holder. The condenser is color-Coded.
Fluorescence attachment
- Epi-illumination with four 5W LEDs for fluorescence excitation from 450 to 470nm (blue), 515 to 535nm (green), 390 to 400 (violet) and 360 to 370nm (ultraviolet). External 100-240V power supply
- Supplied with UV protection shield
cSS - cable Storage System
This system allows users to easily stow away excess cable length into the back of the instrument during operation and to roll up the power cable for easy storage.
carrying Grip
The integrated carrying grip at the back of the microscope ensures the safe transportation of the microscope
Anti-Theft Slot
At the back of the microscope, a Kensington Security Slot is placed, which can be used to secure the instrument from theft
