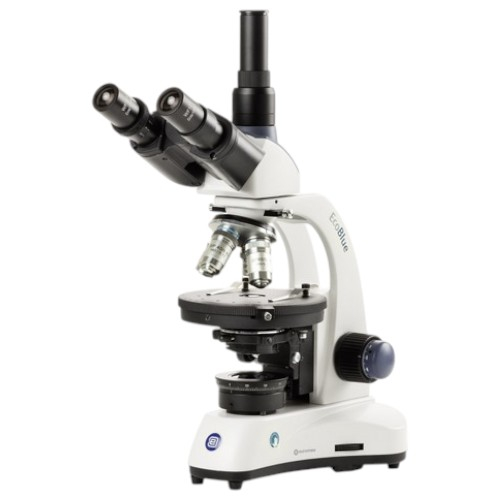

Euromex, EEC-1603-P-HLED-S, EcoBlue Trinocular Microscope for Polarization with Achromatic Semi-Plan 4/10/S40/S60x Objectives and H-LED Illumination
EEC-1603-P-HLED-S Includes Only:
- Microscope
- Power cord
- Dust cover
- Spare fuse
- User manual
- Polystyrene box
Features:
- Polarization model
- 4/10/40x objectives
- S60x objective
- NeoLED illumination system
- Supplied with 129mm circular stage, 360° rotatable and 2 object clamps
- It has a rack & pinion adjustment, all other models carry a helicoidal adjustment
- Supplied with H-LED illumination for correct color rendering (very similar to the halogen light spectrum).
- With an integrated 100-240V power supply, no rechargeable batteries are required
- Provided with APL (Anti-bacterial Protection Layer)
- Revolving nosepiece with four achromatic objectives
- coaxial coarse and fine adjustments with rack stop
- Ergonomic stand
The outstanding optical performance of the ergonomic Euromex BlueLine microscopes enables long, productive working sessions for students in beginner, intermediate, and advanced science teaching classes. Microscopes for education need to be easy-to-use and student-friendly, which means able to withstand extensive use and rough handling
The modern microscopes of the EcoBlue series are especially developed for educational purposes with a primary focus on ergonomic and excellent price/quality ratio. These microscopes are supplied with secured eyepieces, achromatic objectives, and an adjustable rack stop to prevent damage to the sample and objectives.
Head
- Model with 30° inclined tubes
- ± 5 diopter adjustment on left tube
- The head is 360° rotatable
Nosepiece
- Revolving nosepiece for four objectives on ball bearings.
- Swing-out analyzer.
Focusing
- coaxial coarse and fine adjustments, 200 graduations, 12.5 µm per graduation, 2.5mm per rotation, total travel approximately 15 mm
- Supplied with an adjustable rack stop to prevent damage to the sample and objective
Anti-Theft Slot
At the back of the microscope, a Kensington Security Slot is placed, which can be used to secure the instrument from theft.
