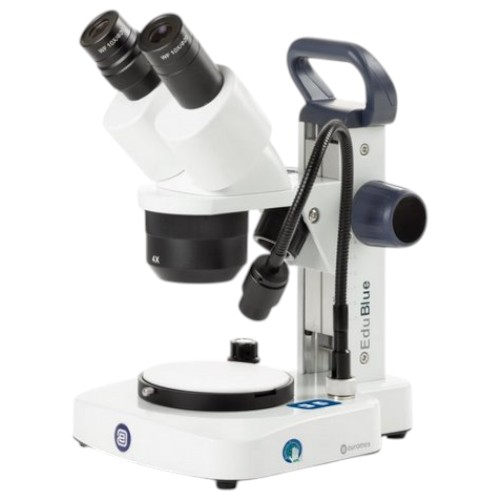

Euromex, EED-1402-EVO, EduBlue Binocular Stereo Microscope, 2x/4x Revolving Objective, 20x/40x Magnification with Rack and Pinion Stand with Two Incident and One Transmitted LED cordless Illumination. with Extra Goosebeck LED Illumination
EED-1402-EVO Includes Only:
- Microscope
- External 100-240V mains adapter/charger
- Three rechargeable batteries for corded and cordless use
- Dust cover
- 60mm transparent and black/white stage plates
- Eyecups
- User manual
- Polystyrene box
Features:
- Designed for education
- Robust and sturdy, with secured eyepieces
- WF10x/20mm eyepieces
- Rack & pinion and pillar stands
- 1W LED illumination
- Provided with APL (Antimicrobial Protection Layer)
- Quick focus scale
- With rechargeable batteries for cordless use
- Ergonomic carrying grip
The outstanding optical performance of the ergonomic Euromex BlueLine stereo microscopes enables long, productive working sessions for students, for beginner or advanced science teaching classes.
The EduBlue microscopes are ideal for educational purposes and are equipped with LED incident and transmitted illuminations. The two parallel optical trains allow the three-dimensional observation of small insects, plants, stones, and minerals.
Eyepiece(s)
A pair of secured WF10x/20mm eyepieces supplied with eyecups.
Head
- Binocular head with 45° inclined tube
- Diopter adjustment of ± 5 on one side
- Interpupillary distance adjustable between 55 and 75 mm
Dual Magnification Objectives
- Revolving nosepiece with dual 2x/4x, which can provide standard magnifications of 20x and 40x
- Working distance 60 mm
- All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Stand
- The stands of the EduBlue are equipped with ergonomic designed flat bases, complete with 2 object clamps and 60mm transparent and black/white stage plate
- The coarse adjustment is equipped with tension control
- The stands are alloy metal cast with a hardened coating
- The rack & pinion stands of the EduBlue are equipped with graduations and focus point indicator for quick focussing
Illumination
- The transmitted and incident 1W LED illuminations can be used simultaneously and the light intensities can be adjusted separately 60mm working distance
- Evo models have an additional flexible arm with 1W LED illumination
