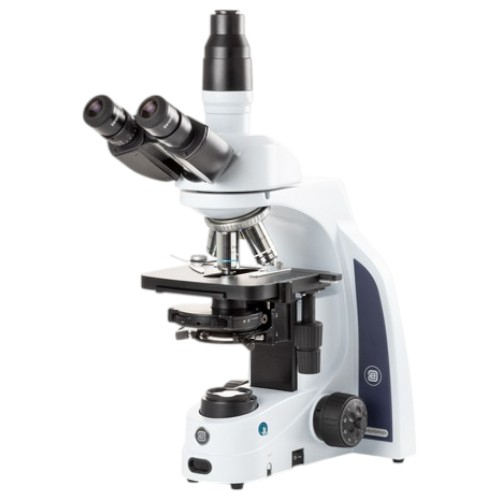

Euromex, EIS-1153-PLPH, iScope Trinocular Microscope with EWF10x/20mm Eyepiece, Plan Phase PLPH 10/20/S40/S100x Oil Objectives, Zernike Phase Contrast Disc condenser with Darkfield Stop and 3W NeoLED Illumination
EIS-1153-PLPH Includes Only:
- Microscope
- Power cord
- Dust cover
- Spare fuse
- 5 ml immersion oil
- User manual
- Polystyrene boxes
Features:
- iScope® for life science
- Medical device class A (Regulation (EU) 2017/746)
- Provided with APL (Antimicrobial Protection Layer)
- Phase contrast
- EWF10x/20mm eyepieces
- Plan phase 10x/20x/40x/100x objectives
- Mechanical reckless stage
- icare Sensor
- Quintuple-reversed nosepiece
- 3W NeoLED™ Kohler illumination
- icare sensor for energy saving
The iScope is suitable for Life and Biomedical Sciences, high schools, universities, and also for routine medical applications.
Besides the brightfield Contrast method, configurations for phase contrast, cardioid mirror darkfield, basic polarization, and several epi-illumination sources for fluorescence applications can be used.
Eyepiece(s)
Extended Wide Field EWF plan 10x eyepieces with 20mm field of view and adjustable diopter on the left eyepiece for finity Corrected systems (23.2mm tube. Tube length 160 mm).
Head
- Siedentopf-type head with 30° inclined tubes. Interpupillary distance from 48 to 76 mm.
- The trinocular head of the E-plan finite models has a fixed built-in 50:50 beamsplitter and one ± 5 diopter adjustment on the 23.2mm left tube
- A unique rotating system allows the ergonomic positioning of both tubes in a high (431 mm) and in a low position (397 mm)
- The trinocular head comes with a 23.2mm photo port
Nosepiece
Revolving quadruple-reversed nosepiece on ball bearings.
Stage
156 x 138mm stage equipped with integrated 79 x 52mm X-Y mechanical stage.
Condenser
Height-adjustable Abbe condenser with N.A. 1.25 and iris diaphragm.
Illumination
3W adjustable NeoLED diascopic illumination with internal 100-240V power supply for brightfield and phase Contrast models.
The innovative NeoLED design offers larger apertures, allowing the optical system of the iScope microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits of the NeoLED are the low energy consumption, no heating, and a long operating lifetime.
icare Sensor
The unique icare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off shortly after microscopists step away from their position.
cSS - cable storage system
iScope® allows users to easily insert the power cable into the back of the instrument, which enables easy storage
