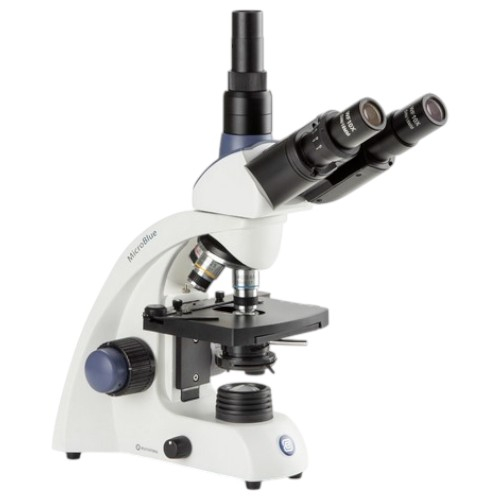

Euromex, EMB-1153, MicroBlue Trinocular Microscope with Achromatic 4/10/S40/S100x Oil DIN 35mm Objectives, Mechanical Stage and LED Illumination
EMB-1153 Includes Only:
- Microscope
- Supplied with mains adapter-Charger
- Three rechargeable AA batteries
- White filter
- Dust cover
- User manual
- Polystyrene box
Features:
- Entry-level microscopes for brightfield observation
- Provided with APL (Anti-bacterial Protection Layer)
- Revolving reversed nosepiece
- Integrated X-Y mechanical stage
- Ergonomic carrying grip
Microscopes for education need to be easy-to-use and student-friendly, which means able to withstand extensive use and rough handling. High-quality, yet affordably priced Euromex microscopes specifically match these demands due to the well-thought-out construction and usage of top-Class materials.
The modern MicroBlue is an entry-level microscope and is especially appreciated when the budget is limited. The model is supplied with an Abbe condenser and equipped with 35mm achromatic objectives. The supplied rechargeable batteries enable cordless operation.
Eyepiece(s)
- Wide field WF10x/18mm eyepiece(s)
- Secured and with the pointer for monocular versions
Head
- Model with 30° inclined tubes, the interpupillary distance is adjustable between 48 and 75 mm, and equipped with a ± 5 diopter adjustment on the left tube
- The trinocular head has a fixed light path beamsplitter (50:50) and generates an erect image
- The head is 360° rotatable and secured
Nosepiece
Revolving nosepiece for three or four reversed objectives on ball bearings.
Objectives 35mm parfocal
- Achromatic 4x/0.10, 10x/0.25 and S40x/0.65
- S100x objective
- The S40x and S100x oil immersion objectives are spring-loaded
- All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Focusing
- coaxial coarse and fine adjustments, 200 graduations, 15 µm per graduation, 3mm per rotation, total travel approximately 15 mm
- Supplied with an adjustable rack stop to prevent damage to the sample and objectives
Stage
The model is supplied with a 115 x 100mm stage with an integrated 55 x 20mm X-Y mechanical stage.
Illumination
- It is supplied with a replaceable 1W NeoLED™ illumination system for increased light output
- It is supplied with rechargeable batteries and with an external 100-240V battery charger/mains adapter.
Anti-Theft Slot
At the back of the microscope, a Kensington Security Slot is placed, which can be used to secure the instrument from theft.
