Euromex, EMZ-4500, MacroZoom Microscope with C-Mount with 0.7x to 4.5 Zoom Objective
EMZ-4500 Includes Only:
- Microscope
- Dust cover
- Styrofoam
Features:
- Stand-alone
- Zoom semi-apochromatic objective
- Zoom up to 0.7x to 4.5x
- C-Mount with 0.4x objective
- 105mm working distance
- Without illumination
- Metal stand

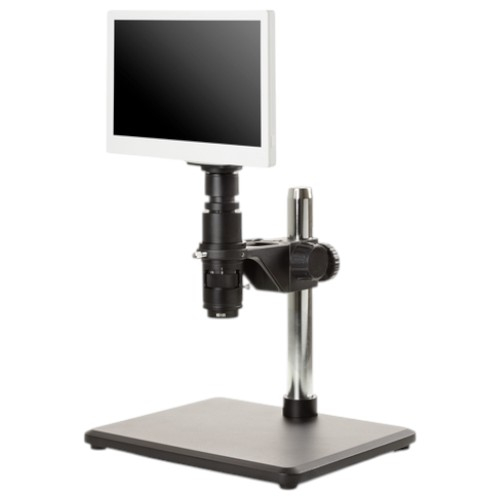

The high-end MacroZoom is built around one 0.7 to 4.5 times optical zoom objective and must be used in combination with C-Mount type of cameras with an HD screen or computer screens. With a working distance of 105 mm, it is highly suitable for repairs, tooling engineers, and visual inspections.
A standard heavy metal base makes the whole system very stable for adding all kinds of illumination systems and camera systems.
central Zoom Objective
The MacroZoom MZ.4500 features a single optical zoom objective with a 0.7x to 4.5x zoom magnification. Zoom adjustments engravings on 1, 1.5, 2, 3, and 4.5x. The working distance is 105 mm.

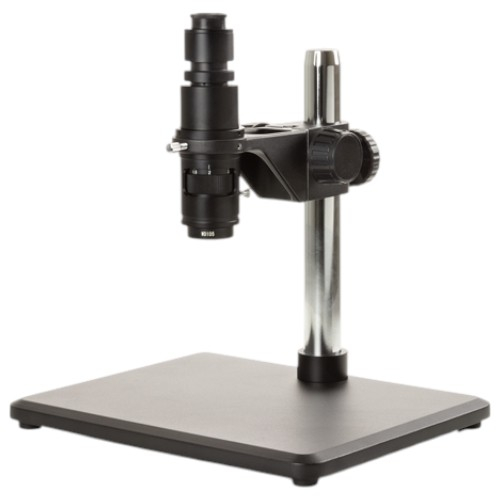

Stand
The MacroZoom is mounted on a 230mm height pillar (32 mm) and holder (39/50 mm) that sits on a metal 320 x 260 x 16/25mm stand.
