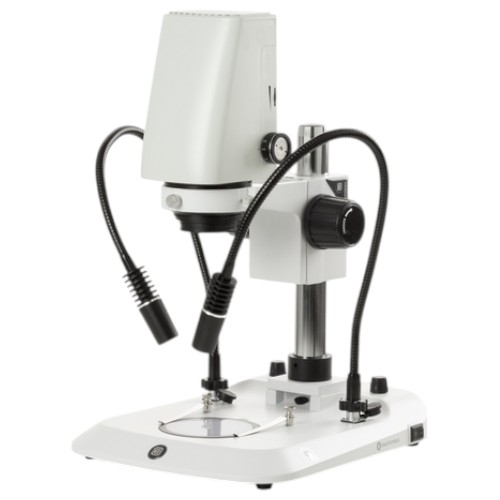

Euromex, EMZ-4600-NZ, MacroZoom Digital Microscope with 0.7x to 5x Optical Zoom with NexiusZoom Stand
EMZ-4600-NZ Includes Only:
- Microscope
- 32 GB memory stick
- Mouse
- HDMI cable for HD screen
- External 100-240VAC / 12VDc
- 3A power supply
- Two 2W Gooseneck LED illumination
Features:
- MacroZoom body with NexiusZoom stand (NZ.9018) equipped with two 2W Gooseneck LED illumination
- Optical zoom from 0.7x up to 5x
- Magnification on screen from 2.5 up to 19x
- 100mm working distance
- Built-in 1080p 2 MP HD camera
- Built-in mouse-driven on-screen software
- Measurement function on the screen
- .jpg or .bmp saved images
- .mp4 video recording up to max 2 hrs
- Removable 32 GB memory stick
- Metal stand
This entry-level digital MacroZoom is equipped with a 0.7 to 5x zoom objective. The mouse-driven built-in software controls the camera parameters and enables measurements on screen, capturing and saving .jpg or .bmp format pictures and .mp4 format video on a USB memory stick.
The MZ.4600 has a built-in High Definition 1080p 2MP camera, which can deliver up to 60 images per second and needs to be connected to an external stand-alone HD screen.
Macrozoom Objective
- The Digital MacroZoom MZ.46000 features a single zoom objective with a 0.7 to 5x zoom magnification
- Zoom adjustment engravings on 0.7, 1, 1.5, 2, 2.5, 3, 4 and 5x
- The working distance is 100 mm
Built-In camera
Built-in HD 1080p high definition 2 MP 1/2.8" CMOS high speed camera, 1920 x 1080 pixels, 2.9 µm x 2.9 µm pixels, and 60 images per second. Magnification on screen from 2.5x up to 19x, with the field of view from 210 x 120mm up to 27 x 15mm based on a 24-inch HD screen. The camera has one HDMI output that needs to be connected to an external HD screen (not supplied). Two USB ports accept the supplied 32 GB USB memory stick (up to 64 GB) and a supplied wireless mouse that drives the built-in on-screen software. The operator can take .jpg or .bmp images and .mp4 videos and save them to an externally supplied memory stick.
Built-In Software
The built-in on-screen software (only English language) is mouse-driven and features functions such as capture or record images, automatic or manual white balance, color adjustments, file manager, grids, flip/mirror, freeze image, WDR (white dark regulation), crosshair and crosslines, text annotations.
