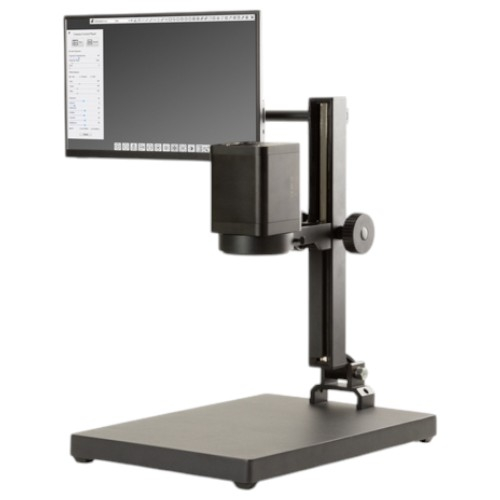

Euromex, EMZ-4700-HDS, MacroZoom Digital 4k UHD Autozoom Microscope with Optical 18x Zoom Ration and HD Screen
EMZ-4700-HDS Includes Only:
- Microscope Body
- Standard ring light
- 32 GB SD card
- Mouse
- WiFi dongle
- HDMI cable
- External 100-240VAC / 12VDc
- HD screen
- 3A power supply
Features:
- Stand-alone or PC operated
- Sony 1/2.8" 4K/1080P CMOS sensor
- 18x optical zoom ratio
- Optical zoom factor up to 5.6x
- On-screen magnification from 2.8 to 47x
- 205 - 215mm Working distance
- Standard LED ring light
- Built-in mouse-driven software
The MZ.4700 is an integration of a 1080p HDMI camera, an electrical controlled continuous zoom auto-focus objective, together with a stand and illumination system. The mouse-driven built-in software controls the camera parameters and enables measurements on screen, capturing and saving .jpg or .bmp format pictures and .mp4 format video on a USB memory stick.
Zoom Objective
- The 16 elements objective has an 18x zoom ratio and produces magnifications up to 0.56 magnification with a manual or automatic focusing function
- Field of views from 255 x 145mm (1x zoom) to 14 x 8mm (18x zoom
- On-screen magnification 2.8 to 47x at 190mm WD (24" screen)
- Focusing range is between 205 and 225 mm
camera
- The 8.3 MP camera is equipped with a Sony 1/2.8 inch
- 4K UHD/1080P CMOS High Definition sensor with high signal-to-noise ratio, generating a 3840 x 8160 pixels video streaming up to 60 images per second
- Image and video storage is done with a built-in SD card
- Stand-alone or PC operated (ImageFocus Alpha)
Built-In Software
The built-in intuitive software is controlled by the supplied and to the camera connected computer mouse. It features a camera control panel, an autofocus control panel, and a measurement toolbar.
Illumination
A standard LED ring light assures a good standard lighting of the sample.
