Euromex, EMZ-5000, MacroZoom Digital Microscope with 0.7x to 5x Zoom Objective and Built-On LCD Screen and LED Ring Light
EMZ-5000 Includes Only:
- Microscope
- 32 GB memory stick
- Mouse
- Short HDMI cable for the attached screen
- External 100-240VAC / 12VDc
- 3 A power supply
Features:
- MonoZoom stand-alone digital microscope
- Zoom from 0.7x up to 5x
- 105mm working distance
- 110mm working distance with 0.5x lens
- Built-in incident LED ring light
- Built-in 1080p 2 MP HD camera

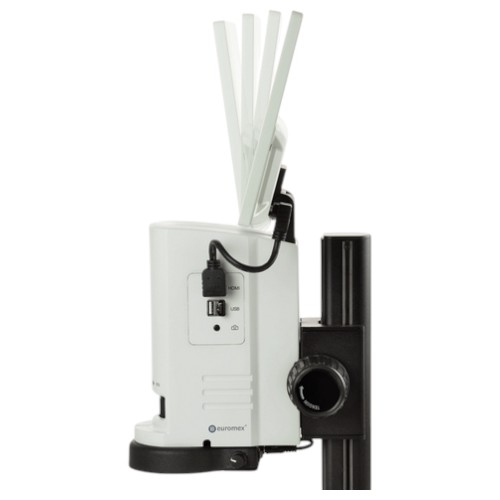

- HD 11.6 inch screen, -5° to 15°
- Built-in mouse-driven on-screen software
- conveniently built-in capture button
- Removable 32 GB memory stick
- Metal stand

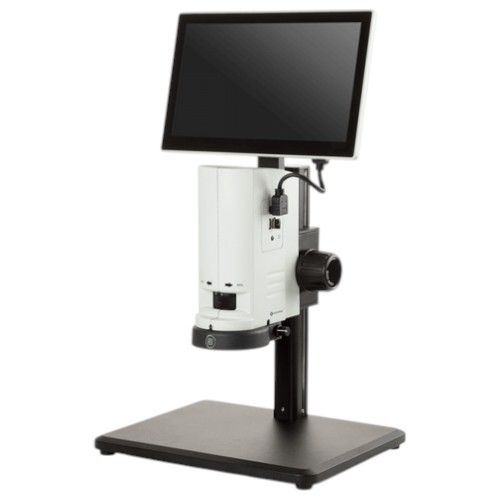

The digital MacroZoom microscope is built around one 0.7 to 5x zoom objective and enables inspection of objects directly on an 11.6" LCD screen, -5° to 15° inclination. This kind of microscope is well-suited for inspection and quality control departments.
The digital MacroZoom is equipped with a built-in full High Definition 1080p camera, which can deliver up to 60 images per second, and is connected either to the supplied and attached 11.6" screen or an external stand-alone HD screen.
central Zoom Objective
The Digital MacroZoom MZ.5000 features a single zoom objective with a 0.7 to 5x zoom magnification. Zoom adjustment engravings on 1, 1.5, 2, 3, 4 and 5x. The working distance is 105 mm. Supplied with a 0.5x additional lens with a working distance of 110 mm.
Stand
The central Zoom Objective with attached screen and LED ring light is mounted on a rack and pinion system that sits on a large 320 x 260mm metal stand. Travel range is 225 mm.
Illumination
A supplied 5, 500 K LED ring light with 56 LED's can be mounted under the microscope body. The intensity is adjustable.
Built-In camera
Built-in HD 1080p high definition 2 MP CMOS high speed camera, 1920 x 1080 pixels, 60 fps with attached 11.6" screen. The standard field of view is 29.8 to 4.18 and with the 0.5x additional lens, from 59 to 8.35. The camera has one HDMI output that can be connected either to the attached screen or to an external HD screen.
Two other USB ports accept the supplied 32 GB USB memory stick (up to 128 GB) and a supplied wireless mouse that drives the built-in on-screen software. The operator can also take and save images to the SD card by pressing on the capture button at the right side of the microscope body.
Built-In Software
The built-in on-screen software is mouse-driven and features functions such as capture image, Freeze image, Automatic white balance, Automatic exposure, File manager, Grids and camera settings such as exposure time, gain, saturation, contrast, sharpness, HDR.
