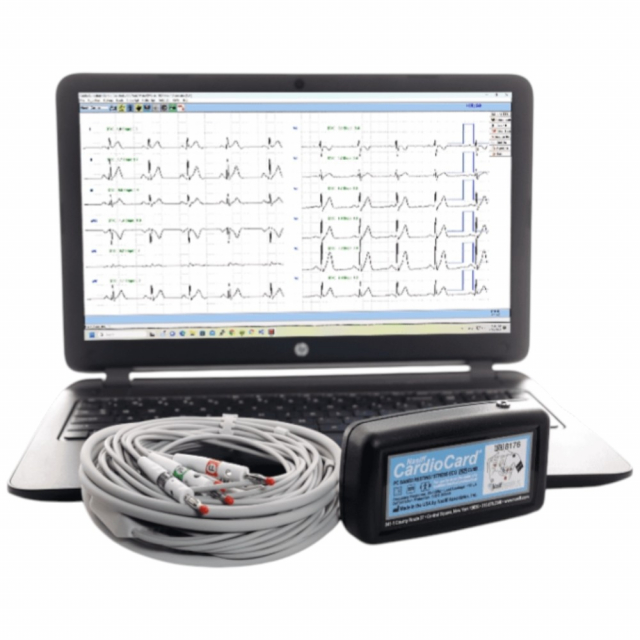

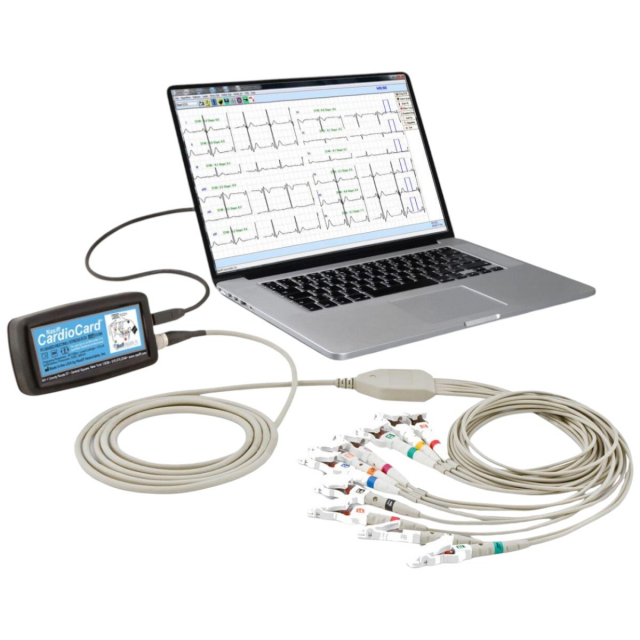

Nasiff Associates CC-ECG1 CardioResting ECG USB System

Model: CardioResting, Connection: USB
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Model:
Model: CardioResting
Connection:
Connection: USB

CC-ECG1 Includes Only:

  • Cardiocard ECG device
  • Cardiocard software
  • Resting patient cable
  • Resting adapter clips
  • Resting electrodes (100)
  • USB cable
  • User manual

Features:

  • Performs ECG tests on Windows PC/laptops and devices with USB ports. MAC PC/laptops with Parallels, Boot Camp
  • Cardio Universal EMR Interface™ - pdf, bidirectional Dicom, bidirectional HL7 and all standard interfaces
  • Cardio Patient Data Management™ System
  • Built-In Networking and unlimited Patient Database
  • Legendary quality, excellent customer support, and training
  • Reliable, user-friendly, compact, and durable devices
  • Feature-rich at the best price
  • Advanced security features with password options
  • Made in USA
  • FDA Clearance since 1990

Nasiff Associates, Inc. is the FIRST and continues to take the lead in PC based Resting ECG Systems. A true 12- lead interpretive ECG solution. Performing fast testing and managing them easily with you at the point-of-care.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor
Manufacturer Warranty

Technical Details

Optional Accessories
Reviews
Connection with
PC USB cable connection
Power SupplyUSB DC 5v
Power Consumption
< 200mA from USB
Comparisons
ECG/EKG serial historical comparisons
ECG Measurement Resolutions
2-4 msec, 1.22uV at 10mm/mV gain
Heart Rate Range30-300bpm
Leads
Standard 12-lead
Lead Leakage< 10uA
Acquisition Mode
Simultaneous interpretive 12-lead acquisition
Sampling Rate
12-lead sampling rate 250-1000Hz
A/D Rate1kHz
Time Base
12.5, 25, and 50 mm/sec
Dynamic Range± 5 mV
Frequency Response
0.05 to 150 Hz
Gains
2.5, 5, 10, 10/5, 20, 40 mm/mV
Input Impedance>1012 ohms
System Noise<40 uV RTI
ECG Interpretation Classes
MLS, blocks, enlargements, axis, and AFib
Filters
AC, baseline, muscle artifact
CMRR>120 dB
NetworkingBuilt-in
Measurements
HR with global measurements, complete interval values
Dimensions
2.75" W x 1.25" D x 4.87" H (6.985 cm x 3.175 cm x 12.364 cm)
Weight0.26 lb (0.12 kg)
PC Requirements
Tablet/Laptop/Desktop PC, i5 Intel Processor, 8 GB RAM, 256+ GB HD, USB Ports, WINDOWS XP through WINDOWS 7, 8, 11, and MAC's with Boot Camp, Dual Boot, VMware Fusion or Parallels
Product Details
Connection with
PC USB cable connection
Power SupplyUSB DC 5v
Power Consumption
< 200mA from USB
Comparisons
ECG/EKG serial historical comparisons
ECG Measurement Resolutions
2-4 msec, 1.22uV at 10mm/mV gain
Heart Rate Range30-300bpm
Leads
Standard 12-lead
Lead Leakage< 10uA
Acquisition Mode
Simultaneous interpretive 12-lead acquisition
Sampling Rate
12-lead sampling rate 250-1000Hz
A/D Rate1kHz
Time Base
12.5, 25, and 50 mm/sec
Dynamic Range± 5 mV
Frequency Response
0.05 to 150 Hz
Gains
2.5, 5, 10, 10/5, 20, 40 mm/mV
Input Impedance>1012 ohms
System Noise<40 uV RTI
ECG Interpretation Classes
MLS, blocks, enlargements, axis, and AFib
Filters
AC, baseline, muscle artifact
CMRR>120 dB
NetworkingBuilt-in
Measurements
HR with global measurements, complete interval values
Dimensions
2.75" W x 1.25" D x 4.87" H (6.985 cm x 3.175 cm x 12.364 cm)
Weight0.26 lb (0.12 kg)
PC Requirements
Tablet/Laptop/Desktop PC, i5 Intel Processor, 8 GB RAM, 256+ GB HD, USB Ports, WINDOWS XP through WINDOWS 7, 8, 11, and MAC's with Boot Camp, Dual Boot, VMware Fusion or Parallels
