NightSEA, SFA-SWK, Switch Box Kit for Stereo Microscope Fluorescence Adapter

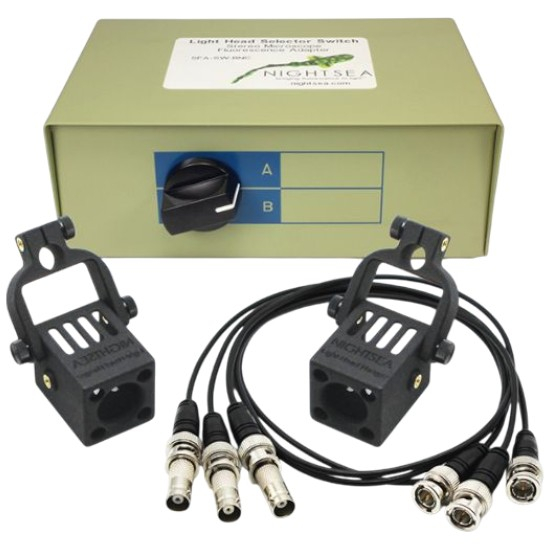

SFA-SWK Includes Only:
- BNC Switch box
- Three BNC cables
- Two Light Head Hangers
Features:
- The Switch Box Kit is an accessory for the NIGHTSEA Model SFA Stereo Microscope Fluorescence Adapter.
- It enables you to mount two different wavelength excitation light heads on your microscope and switch between them easily.
- You will still need to manually change the barrier filter, but it eliminates the need to swap out light heads on the gooseneck.

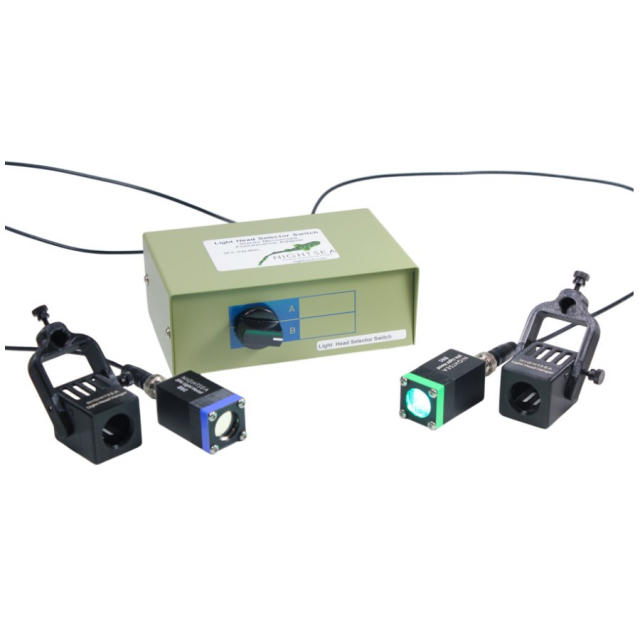

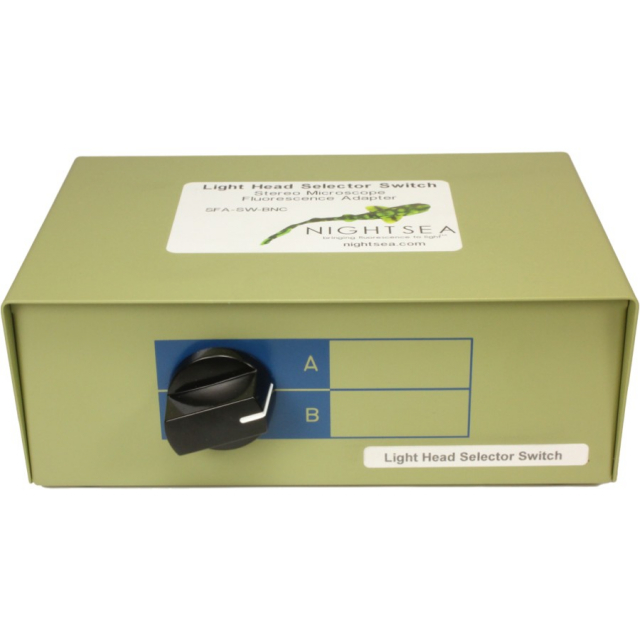

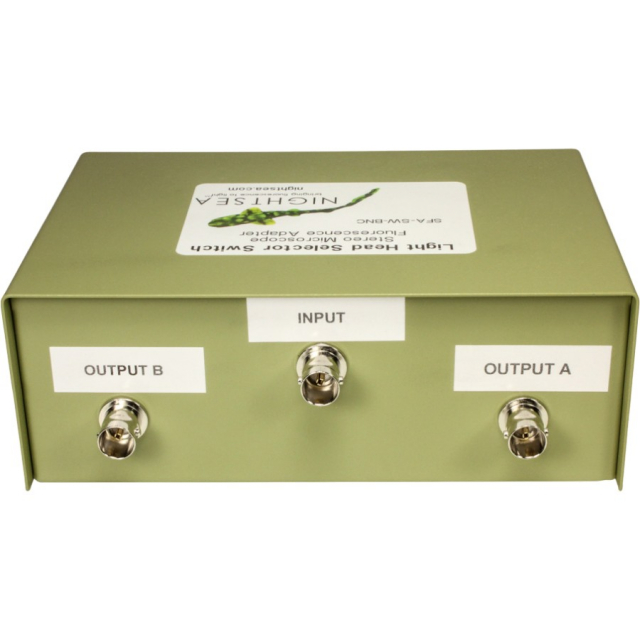

One BNC cable connects the SFA gooseneck lamp base to the input connector on the rear of the Switch Box. The other two cables connect the Switch Box outputs to the two light heads. Use the selector switch on the front of the Switch Box to select between the two light heads. The Light Head Hangers mount your light heads on the SFA adapter ring on the microscope.
Note - Light heads not included with kit. Any of the BNC light heads can be used with the kit.
The Light Head Hangers mount to the end of any of the thumbscrews on the SFA adapter ring.
The Switch Box Kit is only for SFA systems that use the BNC light head connector, and not the older V1 connector.
