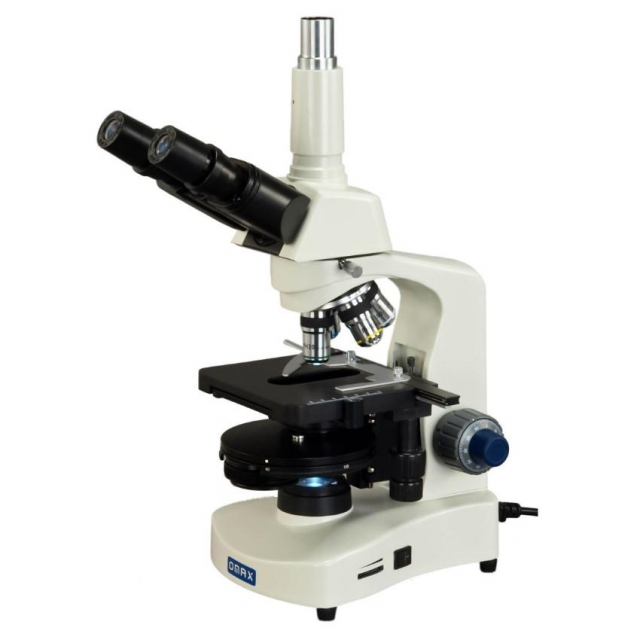

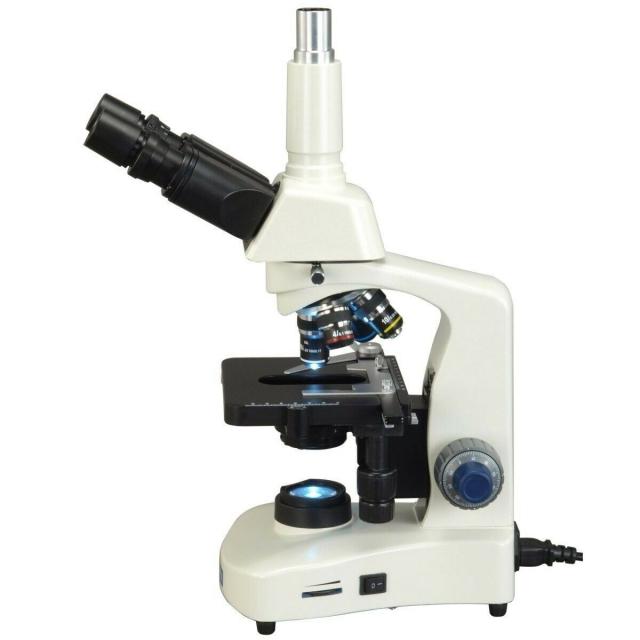

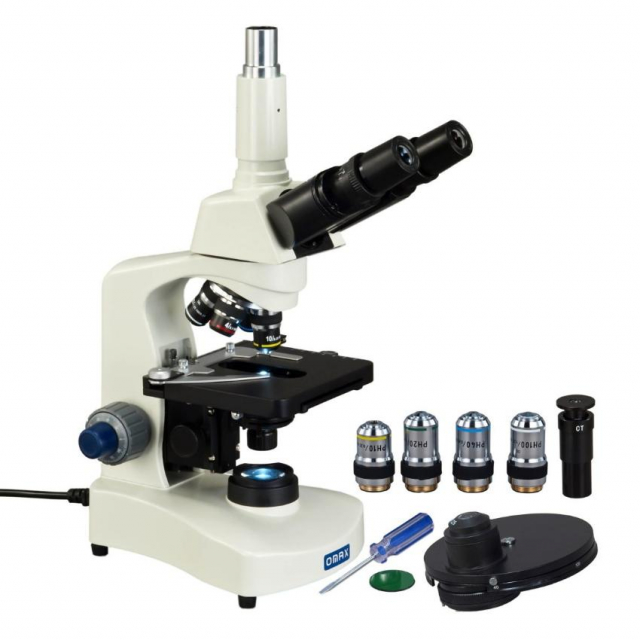

OMAX M8311Z-PHB3 40X-2500X Phase Contrast Trinocular Microscope

OMAX, M8311Z-PHB3, 40X-2500X Phase Contrast Trinocular Compound Siedentopf LED Microscope

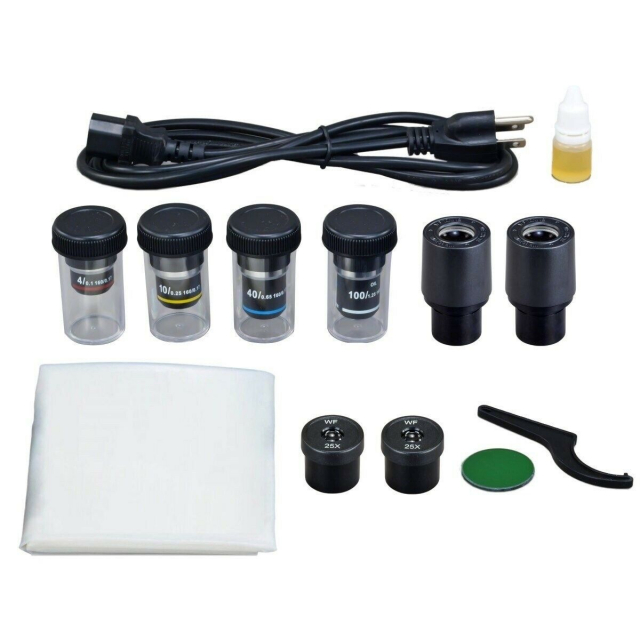

M8311Z-PHB3 Includes Only:

• One trinocular siedentopf microscope head
• One photo tube for digital cameras
• One microscope stand and base
• Four objectives: 4X, 10X, 40X, and 100X
• A pair of eyepieces WF10X
• A pair of eyepieces WF25X
• One bottle of immersion oil
• One power cord (US and Canada standard)
• One focus tension adjustment wrench
• One dust cover
• Color filter green
• Extra fuse (in the fuse holder of the microscope)

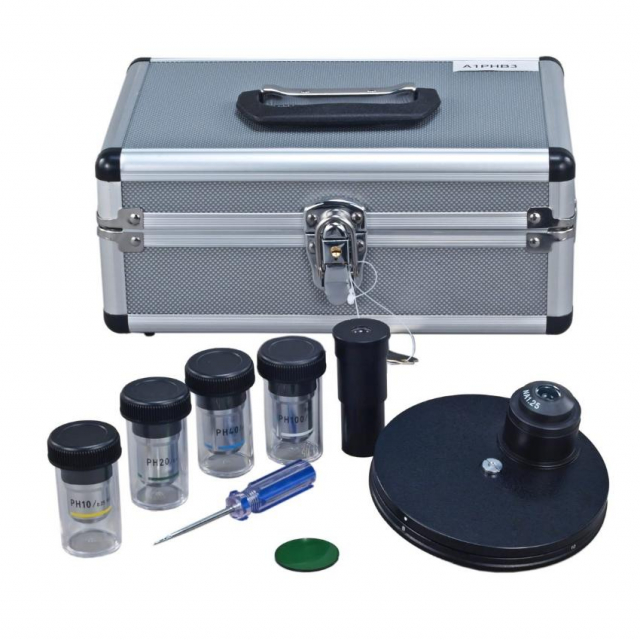

• Phase contrast kit:
  • 1 centering telescopic eyepiece
  • 4 phase contrast objectives: 10X, 20X, 40X, and 100X
  • 1 condenser disk with brightfield condenser and 4 phase contrast filters
  • 1 green filter
  • 1 screw driver
  • 1 aluminum phase contrast storage box

This high quality optical microscope is assembled with LED Illumination system, which has long life span upto several thousand hours. It also provides bright white cool light even after long time continuing working. The 30 degree Siedentopf viewing head is designed for all people with different height. Turret phase contrast condenser with 4 phase slots and 1 brightfield slot helps to inspect low contrast specimens by increasing the contrast. It is widely used in waste water research and live blood cell analysis. The additional photo tube is ready for attaching on a camera which can be purchased separately.

Features:

• Phase contrast microscope for viewing live cell cycle, no staining required to view the slide

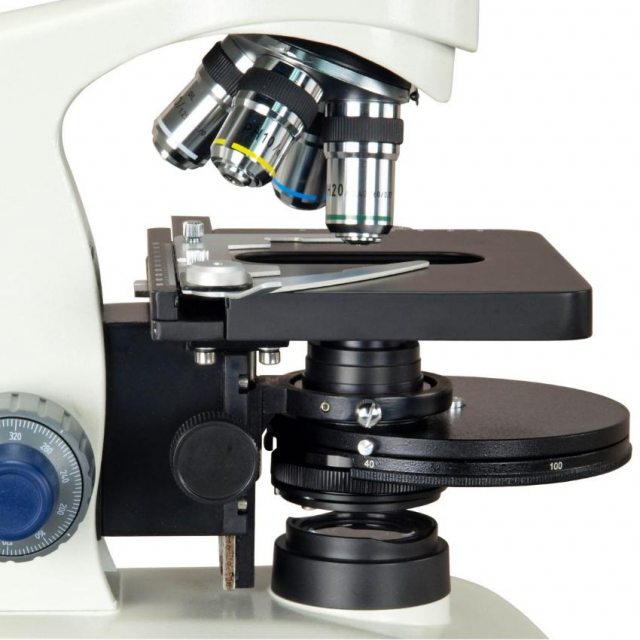

• Four phase contrast lenses and one bright field Abbe condenser on one disk, fast and easy to switch, no condenser change needed
• 30°inclined 360°rotatable siedentopf trinocular viewing head
• Replaceable 3W LED transmitted light with adjustable intensity
• Large double layer mechanical stage and coaxial coarse and fine focus knobs
• Solid metal base and stand
